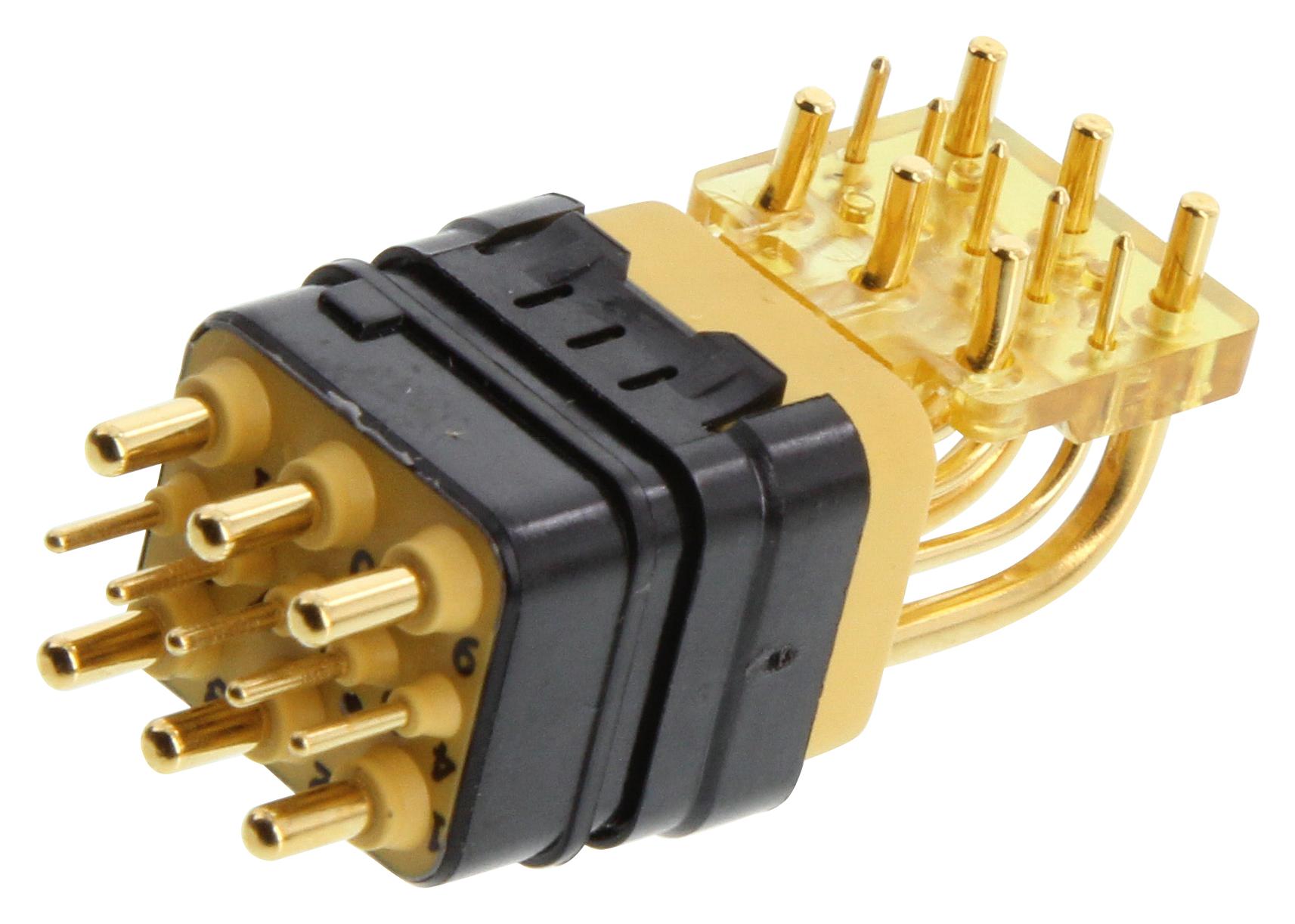

TE CONNECTIVITY 732825499 PCB Module
The Deutsch DMC-M Series PCB modules are lightweight, high-density, modular connectors designed for aerospace, defense, and marine applications. Based on the EN4165 standard, these connectors feature gold-plated copper alloy contacts, capable of supporting up to 500 mating cycles and operating from -55°C to +175°C. They are available in straight and bended PCB contact versions, with options for contact sizes ranging from 12 to 24, offering excellent shock and vibration resistance, high current ratings, and reliable electrical performance in demanding environments.
TE CONNECTIVITY 732825499 PCB Module Specifications:
- Material: Thermoplastic and fluorinated silicone
- Contact Material: Copper alloy, plated gold over nickel
- Contact Tinning: Tinning with or without lead available
- Mating Cycles: 500
- Operating Temperature: -55°C to +175°C
- Contact Size Range: 12 to 24
- Contact Retention Force: Size 24: 27 daN, Size 23: 4.5 daN, Size 22: 4.5 daN, Size 20: 9.0 daN, Size 16: 11.0 daN, Size 12: 13.0 daN
- Electrical Rating: Service I at sea level 1300 Vrms, Service II 1500 Vrms, Current ratings from 3 A to 75 A depending on size
- Mechanical Durability: 500 mating cycles
- Temperature Range: -55°C to +175°C
- Designed for standards EN4165, BACC65, ARINC 809
Buy the Buy Deutsch DMC-M Series PCB Modules Part Number 732825499 Online
Enhance your aerospace, defense, or marine projects with the Deutsch DMC-M Series PCB modules. These lightweight, high-density connectors feature gold-plated copper contacts, support up to 500 mating cycles, and operate in extreme temperatures from -55°C to +175°C. Available in various contact sizes, they deliver reliable electrical performance, vibration resistance, and flexibility for tight spaces. Perfect for demanding environments, these modules meet standards like EN4165, BACC65, and ARINC 809, ensuring your systems are secure and efficient.
Order your Deutsch DMC-M Series 732825499 PCB Module today and ensure reliable aerospace and defense connectivity with high-density, tough design.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 732825499?
You can click on the BUY or RFQ button to purchase 732825499 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 732825499?
You can download the 732825499 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 732825499?
TE CONNECTIVITY
