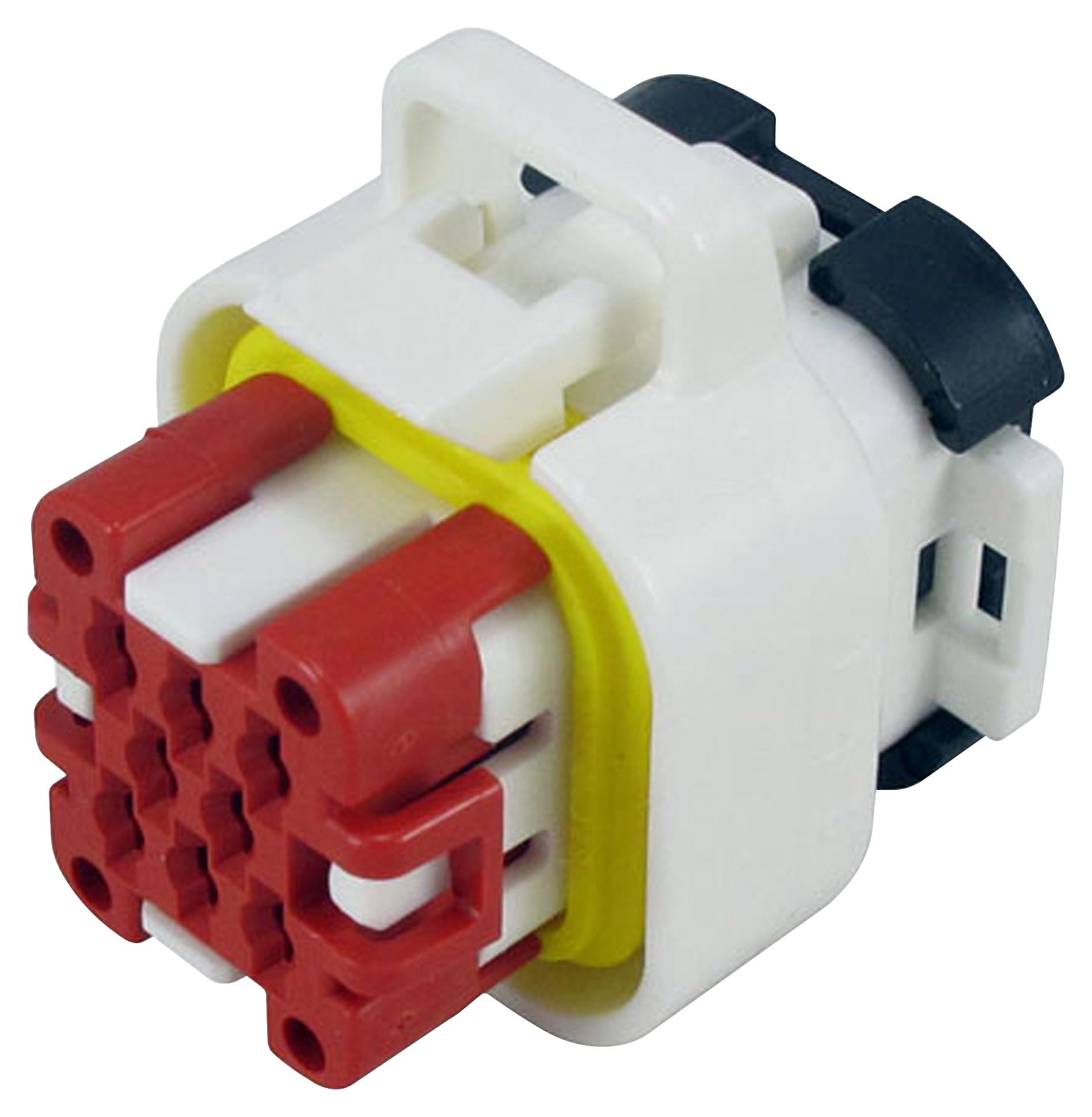

TE CONNECTIVITY 7762862 Automotive Connector
The automotive plug connector and header assembly are designed for use in secure, sealed electrical connections in vehicles. The plug accommodates multiple socket contacts with color-coded mating features for reliable installation. It is suitable for wire sizes from 20 to 16 AWG and features a quick assembly process with a wedge lock mechanism to ensure proper retention. The header is compatible with standard PC boards, with specific mounting and sealing requirements. This product meets ISO and UL standards, providing a durable, weather-resistant electrical connection ideal for automotive and industrial applications.
TE CONNECTIVITY 7762862 Automotive Connector Specifications:
- Wire Range: 20 to 16 AWG
- Wire Insulation Diameter: 1.7 mm to 2.7 mm
- Crimping: Compatible with hand and semi-automatic tools
- Wire Strip Length: 5.1 ±0.4 mm
- Soldering Compatibility: Standard wave soldering process for headers
- PC Board Thickness: 1.57 mm
- Header Mounting Hole Spacing: 8, 14, 23, 35 positions with specific A, B, C dimensions
- Panel Mounting Cutout: 24.7 to 66.4 mm depending on the connector size
- Sealing: Rubber wire seal with diaphragm pierced during assembly
- Certifications: UL Listed (E28476), CSA Certified (LR7189)
Buy the Buy TE Connectivity AMPSEAL Automotive Part Number 7762862 Online
Secure your vehicle’s electrical connections with the TE Connectivity automotive connector and header assembly. Designed for wires 20 to 16 AWG, it features a reliable wedge lock, sealing diaphragm, and compatibility with standard PC boards. Easy to assemble and disassemble, it ensures weather-resistant, high-quality electrical performance essential for automotive and industrial environments. Order online today to experience durable, efficient connectivity that meets UL and CSA standards, supporting safe and lasting electrical systems in demanding conditions.
Order your TE Connectivity AMPSEAL automotive plug connector and header assembly 7762862 today and connect your vehicle’s electrical system reliably.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 7762862?
You can click on the BUY or RFQ button to purchase 7762862 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 7762862?
You can download the 7762862 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 7762862?
TE CONNECTIVITY
