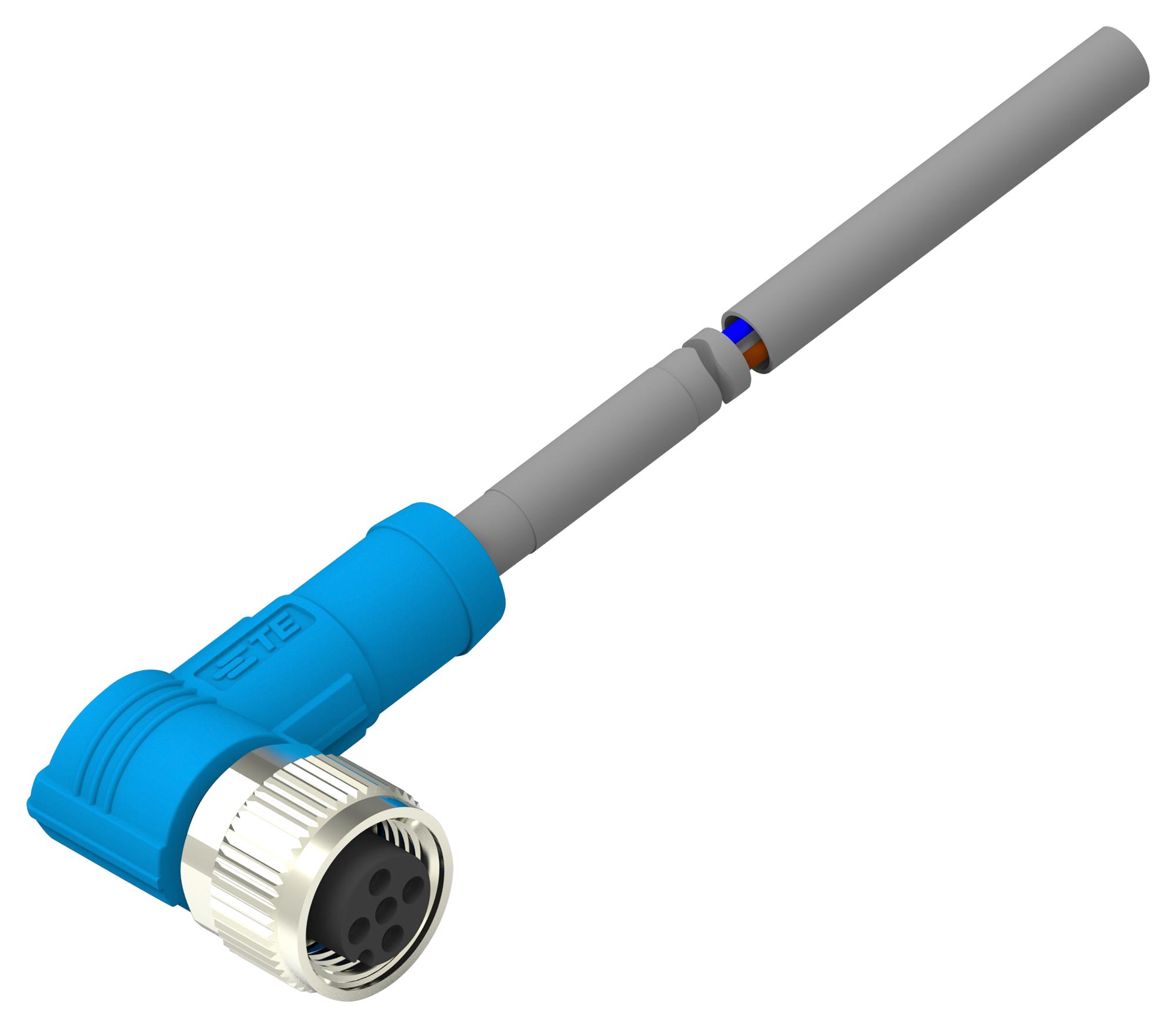

TE CONNECTIVITY T4151420004007 Sensor Cable Assembly
The M8/M12 cable assembly is designed for sensor and actuator connections, featuring 4 positions with A keying. It includes a receptacle connector, M12 pigtail type, and right-angle exit. Constructed with copper alloy conductors, PVC insulation, and gray cable jacket, it supports up to 250 VDC at 4A. The assembly is 10,000 mm long, with a screw and hole thread size for versatile mounting, suitable for industrial environments. Compliant with EU RoHS and REACH directives, this rugged cable ensures reliable signal transmission in automation systems.
TE CONNECTIVITY T4151420004007 Sensor Cable Assembly Specifications:
- Number of Positions: 4
- Keying: A
- Connector Type: Receptacle
- Cable Type: M12 Pigtail
- Cable Exit Angle: Right Angle
- Conductor Material: Copper Alloy
- Insulation Material: PVC
- Cable Jacket Color: Gray
- Cable Length: 10,000 mm
- Current Rating: 4A
- Operating Voltage: 250 VDC
- Housing Material: GF Nylon
- Mounting Angle: Right Angle
- Wire Size: 22 AWG
- Environmental Protection: IP Rating not specified
- Compliance: EU RoHS, REACH
- Screw & Hole Thread Size: Not specified
- Product Type: Sensor/Actuator Cable
- Packaging Method: Box
Buy the TE Connectivity T4151420004-007 – Reliable M12 Sensor Cable for Industrial Applications
Order the Sensor Cable Assembly today for reliable, high-quality industrial automation connections. Featuring 4 positions, right-angle design, PVC insulation, and a robust construction, this assembly ensures secure signal transmission in sensor and actuator systems. With a length of 10,000 mm and rated for 250 VDC at 4A, it is ideal for versatile industrial applications. Easy to install with screw and hole mounting, it complies with EU RoHS and REACH standards, providing safe and durable connectivity in demanding environments.
Get TE Connectivity T4151420004-007 today—built for precision, durability, and seamless sensor/actuator connections in industrial automation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4151420004007?
You can click on the BUY or RFQ button to purchase T4151420004007 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4151420004007?
You can download the T4151420004007 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4151420004007?
TE CONNECTIVITY
