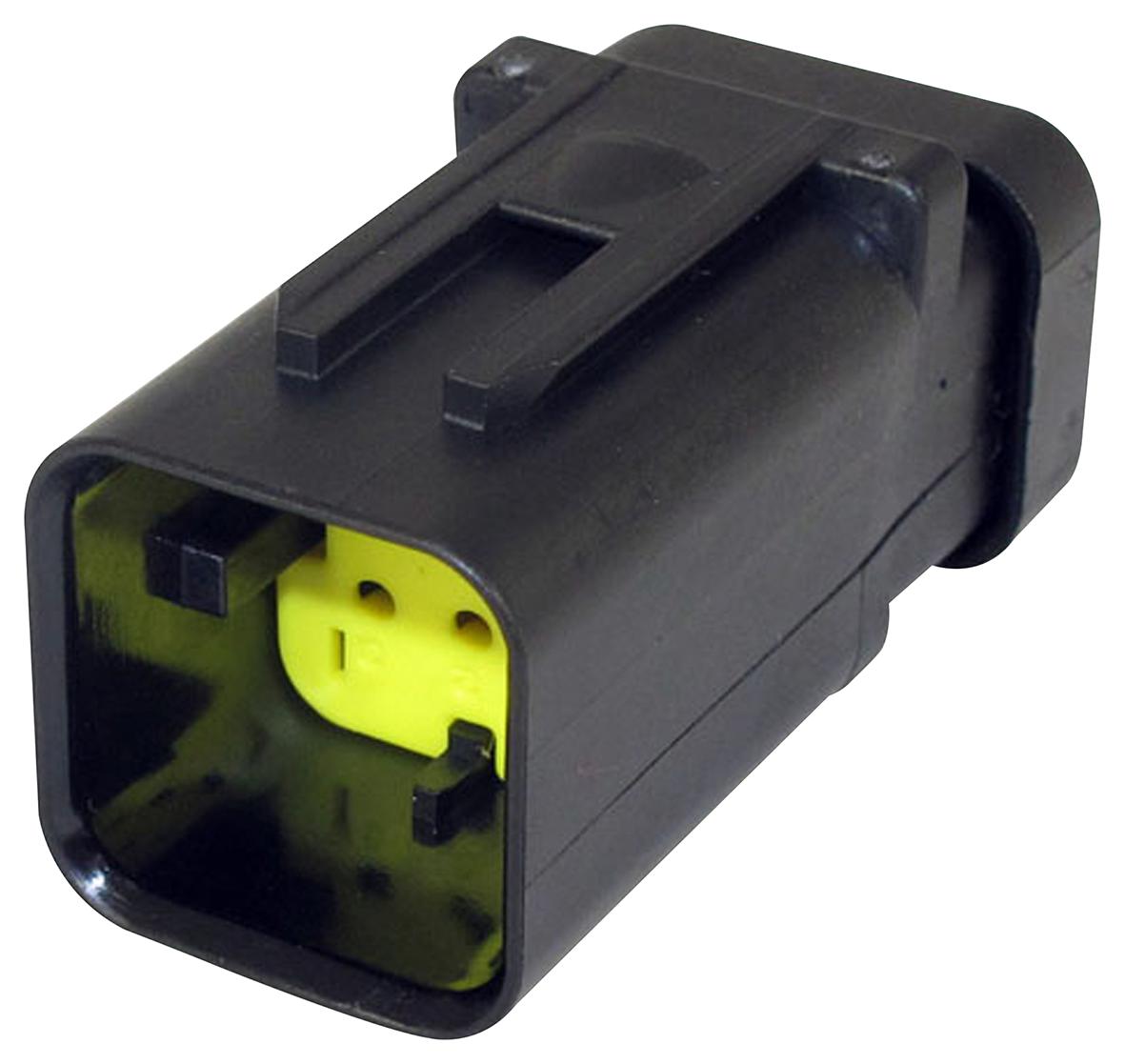

TE CONNECTIVITY 7764343 Sealed Connector System
The AMPSEAL 16 Connector System features sealed wire-to-wire and wire-to-device connections with a lance-less contact system. Made from high-grade thermoplastic and silicone rubber, it supports 14-20 AWG wires with two wire seal options—standard and reduced diameter. Designed for durability and ease of assembly, it incorporates terminal position assurance, polarity keying, and moisture resistance. Suitable for demanding applications where reliable sealing and secure contact retention are critical, offering versatile configurations for various circuit counts and ensuring assembly integrity with specialized tooling.
TE CONNECTIVITY 7764343 Sealed Connector System Specifications:
- Materials: Glass filled thermoplastic housing, silicone rubber seals, brass pin contacts, copper alloy socket contacts, gold or nickel plating
- Wire Range: 14-20 AWG with insulation diameters of 1.30-3.94 mm [.051-.155 in.]
- Wire Seal Options: Standard Diameter Wire Seal (SDWS) for 2.18-3.67 mm [.086-.144 in.] wires, Reduced Diameter Wire Seal (RDWS) for 1.30-2.54 mm [.051-.100 in.] wires
- Colors: Color-coded terminal position assurance (TPA) for polarization
- Locking: Terminal position assurance (TPA) and integral connector latch for secure mating
- Assembly: Manual crimping and insertion, with push-in contact seating and locking features
- Corrosion Resistance: Plated contacts (gold or nickel), moisture resistant housing
- Dimensions: Compatible with 4.5 mm [.177 in.] centerline spacing, sealing plugs for unused circuits
Buy the TE Connectivity Series AMPSEAL 16 Sealed Connector System: 7764343
Order the TE Connectivity AMPSEAL 16 Connector System online today to ensure secure and reliable wire-to-wire or wire-to-device connections. Crafted from durable thermoplastic and silicone rubber, this system supports 14 to 20 AWG wires with versatile sealing options for moisture resistance. Its innovative design incorporates terminal position assurance, keying for correct mating, and locking features for a secure connection. Ideal for demanding applications requiring high durability, moisture protection, and easy assembly, this connector ensures optimal performance and long-term reliability in your electrical systems.
Buy TE Connectivity AMPSEAL 16 Connector System now and experience unmatched reliability and performance in sealed wire-to-wire and device connections.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 7764343?
You can click on the BUY or RFQ button to purchase 7764343 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 7764343?
You can download the 7764343 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 7764343?
TE CONNECTIVITY
