TE CONNECTIVITY HCH265J22RJ Aluminium Braking Resistor
The Aluminium Housed Braking Resistor series is designed for high-power overload absorption, ideal for braking systems in drive applications. Features include IP54 ingress protection, PTFE insulated flying leads, and an anodized aluminium profile body. Power ratings range from 200W to 500W, with maximum temperatures up to 375°C. The resistors are tested for overload, load life, and environmental durability, ensuring reliable performance in demanding industrial environments. Varieties include models HCH165, HCH215, HCH265, and HCH335, each with specific pulse load capabilities and resistance ranges.
TE CONNECTIVITY HCH265J22RJ Aluminium Braking Resistor Specifications:
- Power Ratings: 200W to 500W @40°C
- Maximum Temperature: 375°C
- Resistance Range: 680 to 2200 ohms
- Ingress Protection: IP54
- Built-in insulation: PTFE insulated flying leads, 300 mm length
- Material: Anodized extruded aluminium profile body
- Dielectric Strength: 3500VAC for 1m terminal
- Insulation Resistance: >100MO at 1000VDC
- Resistance Tolerance: +5%, +10%
- Operating Voltage: Max 1100V
- Pulse Load Capabilities: Up to 23000W for 1s in model HCH335

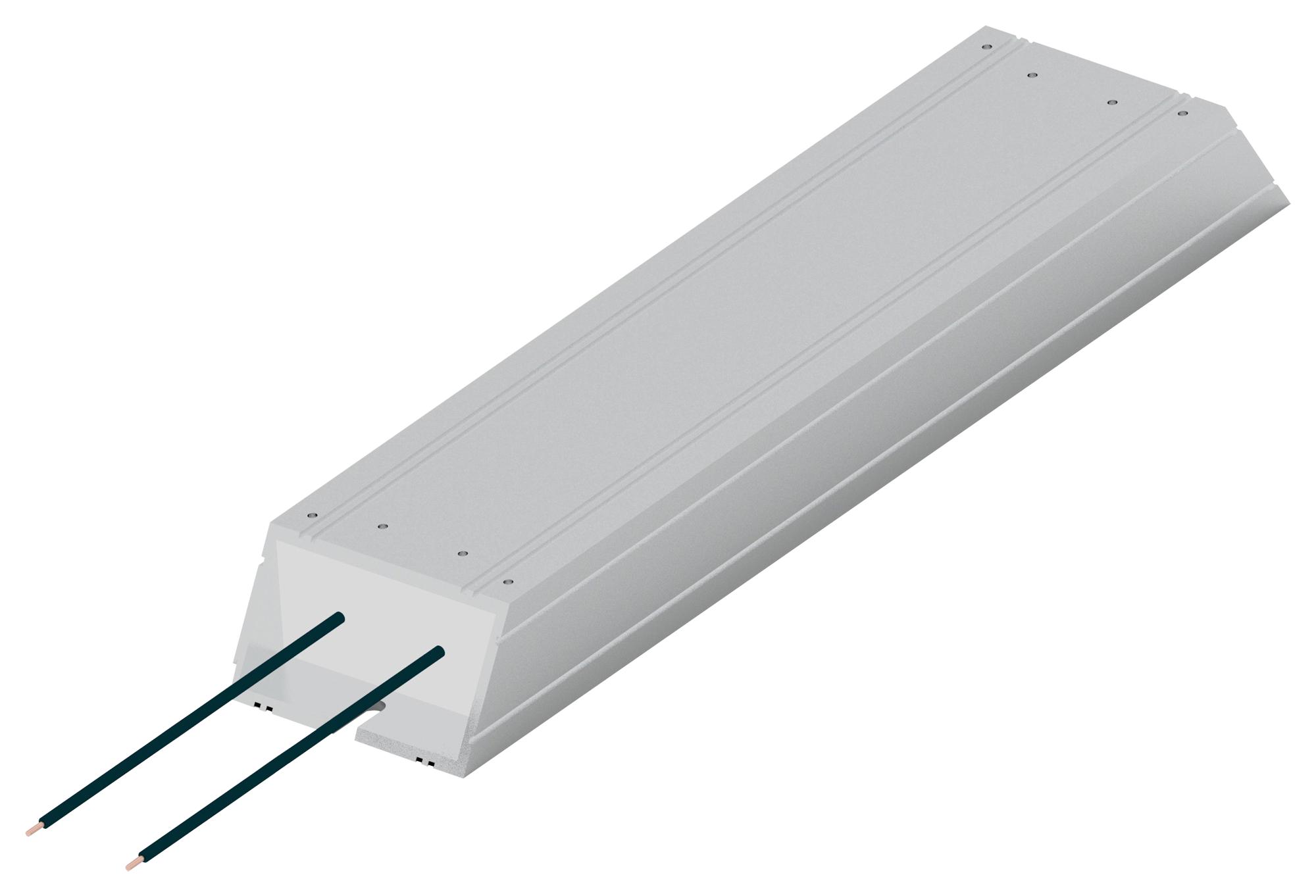

Buy the TE Series HCH265 Braking Resistor: HCH265J22RJ
Discover the TE Series aluminium housed braking resistors, engineered for high-power overload dissipation and efficient braking in industrial applications. Crafted from durable anodized aluminium, these resistors feature PTFE insulated flying leads and an IP54 rated enclosure, providing excellent dust and moisture resistance. Suitable for demanding environments, they deliver reliable performance up to 375°C, with pulse load capabilities reaching 23,000W for short durations. Available in various power ratings and resistance ranges, these resistors are essential components for controlling drive systems securely and efficiently. Order online now for fast delivery and proven quality.
Order your TE Series HCH265 aluminium braking resistor today and ensure reliable, high-power braking performance in your industrial drive systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH265J22RJ?
You can click on the BUY or RFQ button to purchase HCH265J22RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH265J22RJ?
You can download the HCH265J22RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH265J22RJ?
TE CONNECTIVITY
