TE CONNECTIVITY 787001504 Aerospace Modular Connector
The Deutsch DMC-MD series connectors are modular, lightweight, and reliable solutions designed for aerospace cabin systems, including aircraft In-Flight Entertainment and communication networks. They comply with EN4165, ARINC 809, and BACC65 standards, offering versatile configurations with multi-cavity and single-module options. Constructed from durable materials like composite housings and thermoplastic modules, these connectors withstand extreme environmental conditions, including high temperatures, vibration, and salt spray. Ideal for demanding aerospace, defense, and marine applications, they facilitate quick installation, flexible reconfiguration, and robust EMI shielding for enhanced system performance.
TE CONNECTIVITY 787001504 Aerospace Modular Connector Specifications:
- Housing Material: Composite, nickel plated
- Module Material: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, gold-plated over nickel
- PCB Contacts: Copper alloy, gold-plated over nickel, with lead or ROHS tinning
- Temperature Range: -55°C to +175°C
- Vibration: 20 g
- Durability: Up to 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Insulation Resistance: 5000 MΩ
- Contact Current Rating: Size 24: 3 A, Size 23: 5 A, Size 22: 5 A, Size 20: 75 A, Size 16: 13 A, Size 12: 23 A, Size 8: 46 A
- EMI Shielding: Attenuation up to 50 dB at 100 MHz, decreasing with frequency, maximum attenuation 50 dB at 100 MHz
- Module Compatibility: Aluminium cable contacts, EN3155-70 / 71 size 22
- Reel and Backshell Options: Various included for flexible cable management
- Connector Orientation: All backshells can be indexed in eight positions for modularity

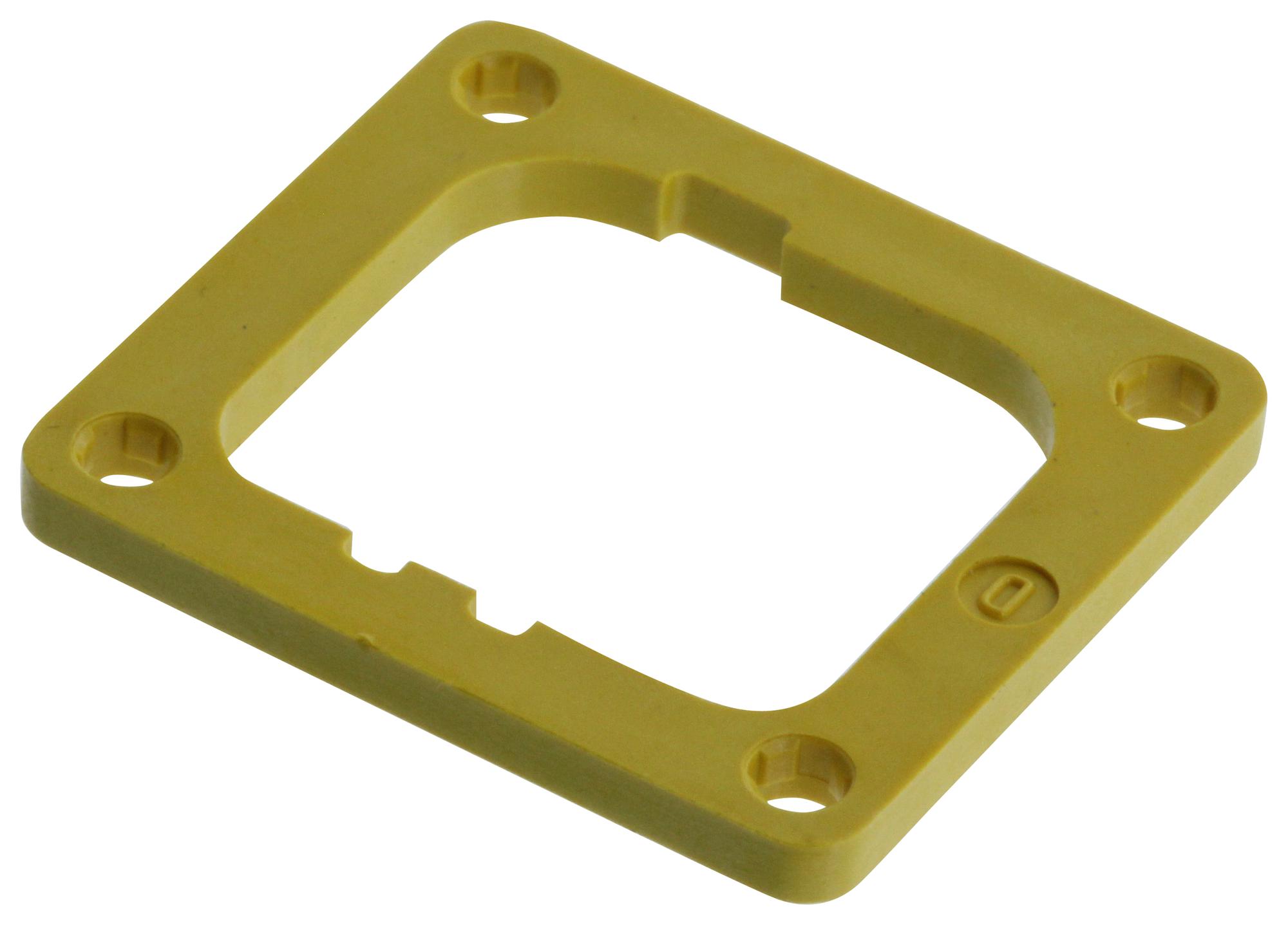

Buy the Buy Deutsch DMC-MD Series Connector Part Number 787001504 Online
Enhance your aerospace equipment with Deutsch DMC-MD series connectors. Designed for demanding conditions, these lightweight, modular connectors support advanced cabin and communication systems. They meet EN4165, ARINC 809, and BACC65 standards, offering quick setup with multiple keying options and robust EMI shielding. Built from durable composite housings and thermoplastic modules, they ensure long-lasting performance in extreme environments. Compatible with aluminium contacts and easy to reconfigure, these connectors deliver reliability, flexibility, and efficient cable management to optimize your aircraft systems.
Get Deutsch DMC-MD Series connector today—designed for aerospace cabin systems with high reliability, flexible configurations, and easy installation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 787001504?
You can click on the BUY or RFQ button to purchase 787001504 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 787001504?
You can download the 787001504 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 787001504?
TE CONNECTIVITY
