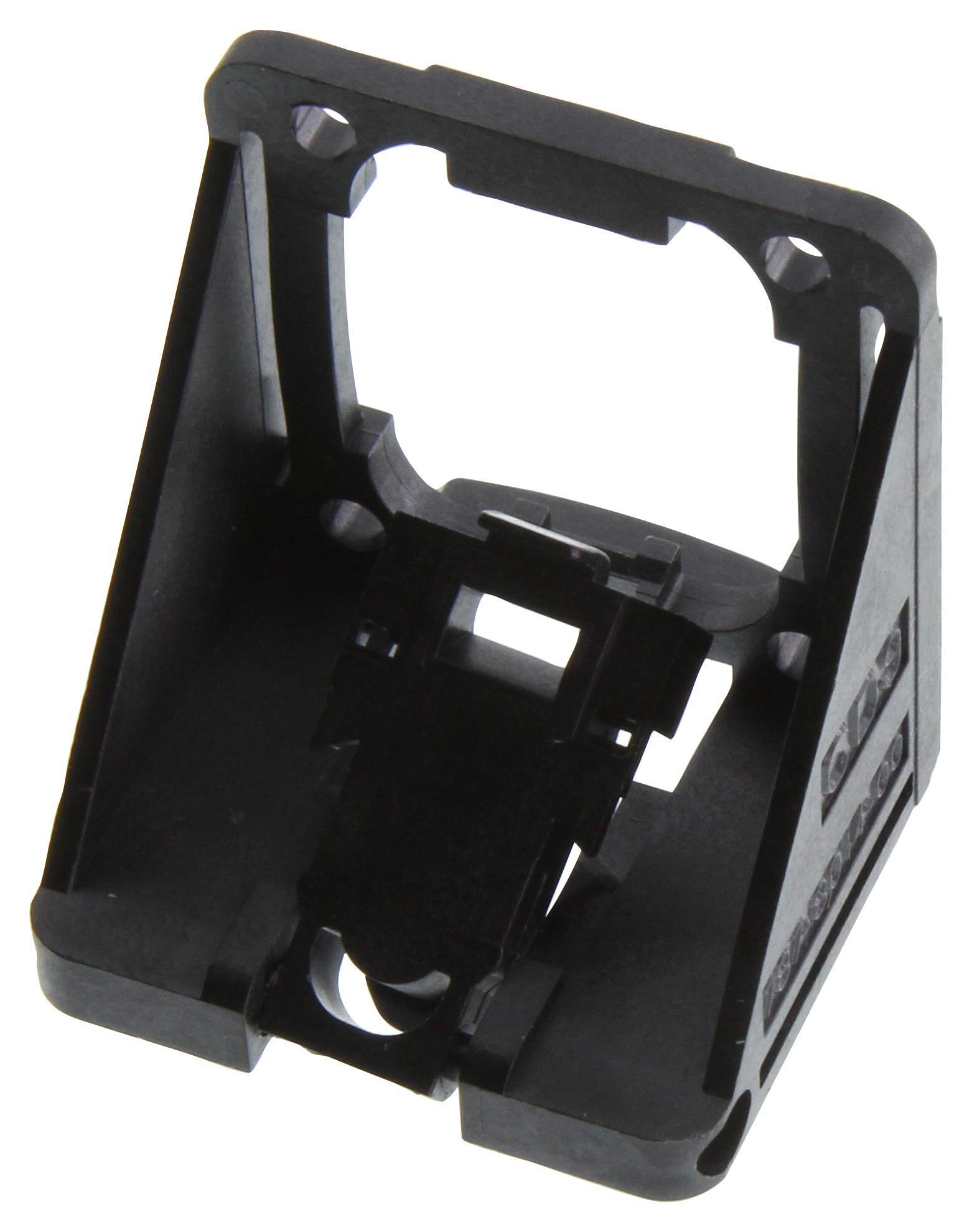

TE CONNECTIVITY 787801400 Modular Aerospace Connector
The Deutsch DMC-MD series connectors are modular, lightweight, and highly reliable for aerospace cabin systems, supporting EN4165, ARINC 809, and BACC65 standards. Designed for quick assembly and reconfiguration, these connectors feature thermoplastic modules, nickel-plated composite housings, and copper alloy contacts with gold plating. Suitable for harsh environments, they withstand high temperatures from -55°C to +175°C, vibrations, salt spray, and repeated mating cycles. They offer EMI shielding, various keying options, and are optimized for weight, making them ideal for aircraft IFE and cabin network applications.
TE CONNECTIVITY 787801400 Modular Aerospace Connector Specifications:
- Housing Material: Composite, nickel plated
- Modules Material: Thermoplastic, fluoronated silicone
- Crimp Contacts: Copper alloy, gold plated over nickel
- PCB Contacts: Copper alloy, gold plated over nickel, with lead or ROHS tinning
- Temperature Range: -55°C to +175°C
- Vibration Resistance: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Contact Resistance: Insulation Resistance of 5000 MΩ
- Contact Current Ratings: Sizes 8-24 from 3 A to 46 A
- EMI Attenuation: Up to 50 dB at 100 MHz, decreasing with frequency
- Weight: Receptacle 0.015 lbs, plug 0.020 lbs, backshell 0.009-0.015 lbs
- Panel Mount Cutout: 28.1 mm min, 35.3 mm max
- Suitable for high-stress aerospace environments
Buy the Buy Deutsch DMC Series Part Number 787801400 Online
Purchase the Deutsch DMC Series connector, Part Number 787801400, online now to ensure reliable and lightweight connectivity in aircraft cabin systems. Engineered for harsh aerospace environments, these connectors support standards like EN4165, ARINC 809, and BACC65, offering thermal stability, vibration resistance, and EMI shielding. Their modular design allows quick reconfiguration, making them ideal for IFE and cabin network upgrades. With high durability, multiple keying options, and weight optimization, buying online guarantees swift delivery to enhance your aerospace projects with proven, high-quality components.
Buy Deutsch DMC Part Number 787801400 now and experience unmatched reliability and performance for aerospace cabin connectivity with easy modular installation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 787801400?
You can click on the BUY or RFQ button to purchase 787801400 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 787801400?
You can download the 787801400 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 787801400?
TE CONNECTIVITY
