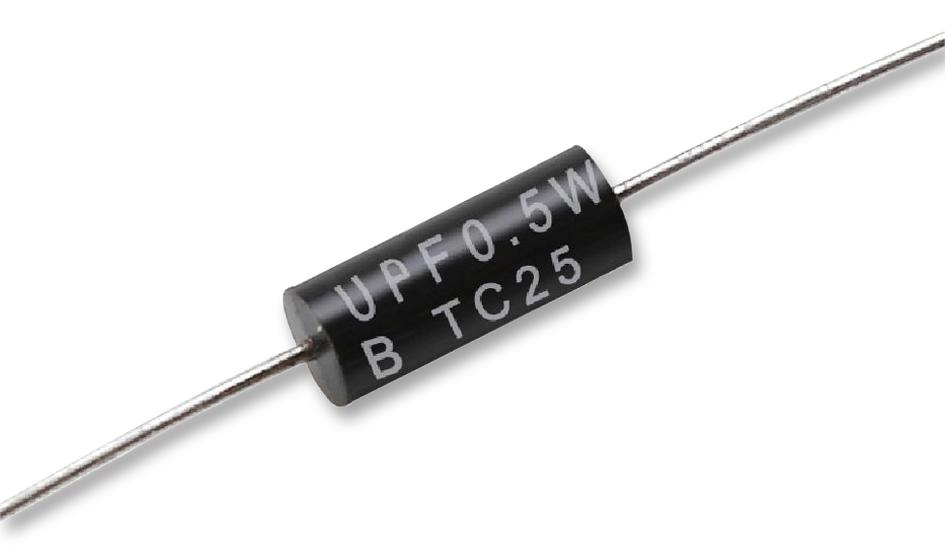

TE CONNECTIVITY UPF50B350RV High Precision Metal Film Resistor
The UPF Series high precision metal film leaded resistor offers very tight tolerance down to +0.02%, extremely low TCR of +5PPM/C, and excellent stability, making it ideal for precision measurement and equipment applications. Constructed with a ceramic alumina core, nickel alloy resistive element, and plated with tinned copper wire, it ensures reliable performance under demanding conditions. Available in various power and resistance ratings, it ensures high accuracy, low noise, and robust environmental resistance for high-end electronic circuits and measurement systems.
TE CONNECTIVITY UPF50B350RV High Precision Metal Film Resistor Specifications:
- Power Rating: 1/4W (UPF25), 1/2W (UPF50)
- Voltage Rating: 250V (UPF25), 500V (UPF50)
- Resistance Range: 0.1Ω to 500KΩ
- Tolerance: Down to +0.02%
- Temperature Coefficient of Resistance: +5PPM/C
- Operating Temperature: -55°C to +125°C
- Construction: Ceramic core, nickel alloy resistor element, tinned annealed copper lead wire, molded with expose features
- Dimensions: UPF25 - 7.0mm x 4.0mm; UPF50 - 10.2mm x 4.0mm
- Insulation Resistance: >1,000MΩ at 800V for 1 minute
- Endurance: Max. operating voltage for 1000 hours with 1.5h ON / 0.5h OFF cycles
- Environmental: Damp heat, storage temp of -55°C to +125°C, humidity <80%RH
- Solderability: 95% min. coverage at 245°C for 5 seconds
- Resistance to Soldering Heat: +0.05% / +0.010
- Terminal Strength: Tensile 22.5kg, torsional 360° rotation
- Pulse Overload: +0.1% / +0.010, 10,000 cycles
- Temperature Cycle: -25°C to +85°C, 5 cycles
- Resistance to Solvent: No deterioration of coating or markings
Buy the TE Series UPF Metal Film Resistor: UPF50B350RV
Purchase the TE UPF50B350RV high precision metal film resistor online today and ensure your electronic circuits benefit from unbeatable accuracy, low noise, and exceptional stability. Ideal for precision instrumentation, measurement systems, and demanding environments, this resistor offers exceptional tolerance down to +0.02%, low TCR of +5PPM/C, and robust environmental resistance. Easy to integrate into your designs with reliable performance, order now to optimize your electronic applications with top-quality components that deliver consistent and precise results every time.
Buy TE UPF50B350RV now and experience unmatched reliability and precision in your electronic projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY UPF50B350RV?
You can click on the BUY or RFQ button to purchase UPF50B350RV from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part UPF50B350RV?
You can download the UPF50B350RV datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of UPF50B350RV?
TE CONNECTIVITY
