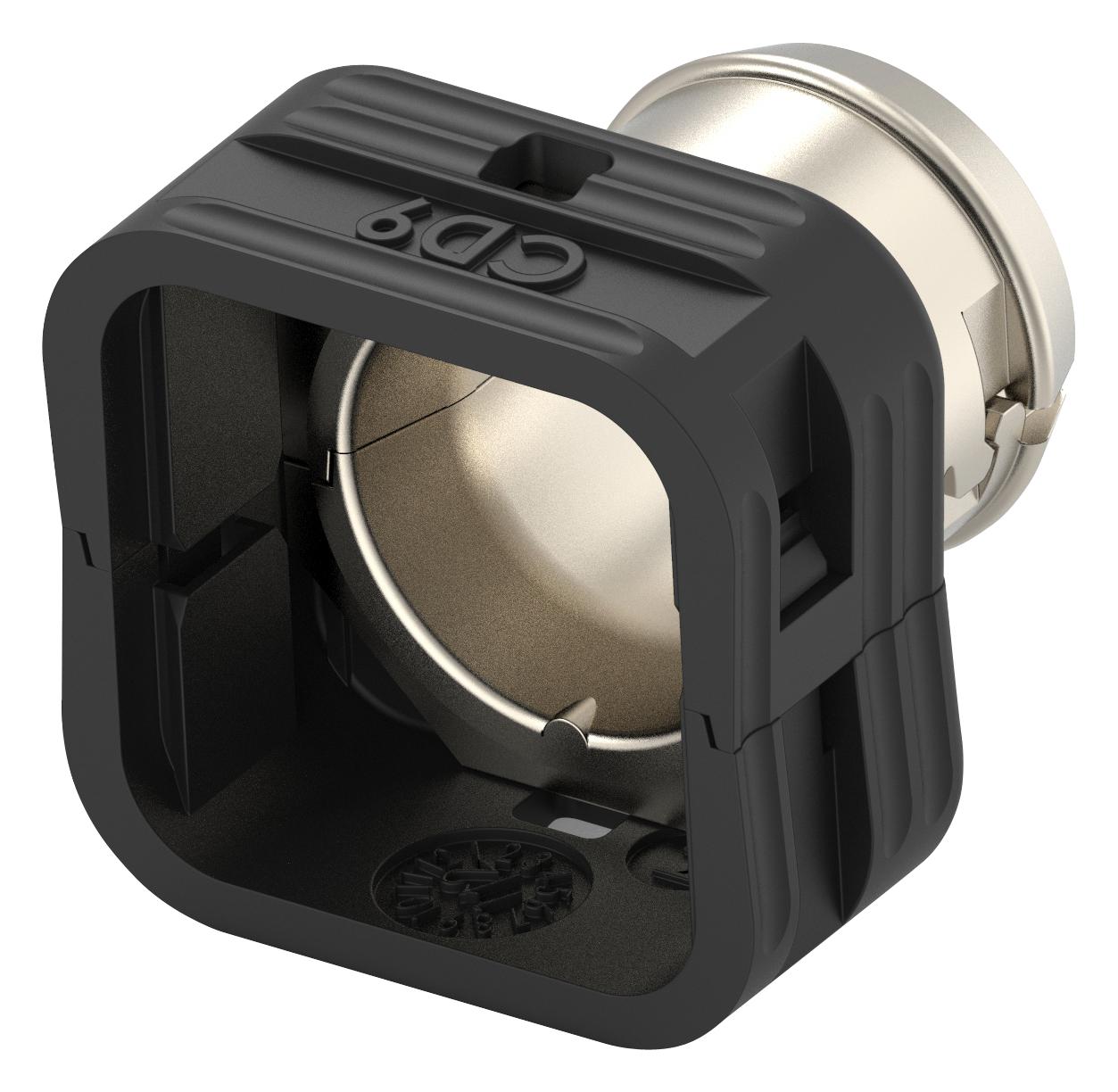

TE CONNECTIVITY 787805510M Modular Connector
The Deutsch DMC-MD series offers quick-change modular connectors designed for aerospace cabin systems, aircraft in-flight entertainment, and military applications. These reliable connectors comply with EN4165, ARINC 809, and BACC65 standards, providing a modular, lightweight, and flexible connectivity solution. They feature durable composite housings with nickel plating, thermoplastic modules, and gold-plated contacts capable of withstanding extreme temperature ranges from -55°C to +175°C, vibration, salt spray, and high electrical resistance, making them ideal for demanding aerospace, defense, and marine environments.
TE CONNECTIVITY 787805510M Modular Connector Specifications:
- Housing Material: Composite, nickel plated
- Module Material: Thermoplastic and fluoronated silicone
- Contacts: Copper alloy, plated gold over nickel
- Temperature Range: -55°C to +175°C
- Vibration Resistance: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Contact Resistance: Insulation resistance of 5000 MΩ
- Pin Size Options: Sizes 8, 12, 16, 20, 22, 24 with current ratings up to 46 A
- EMI Shielding: Attenuation up to 50 dB at 100 MHz
- Weight: Approximate 0.009 to 0.020 lbs per component
- Standards Compliance: EN4165, ARINC 809, BACC65
Buy the Deutsch 787805510M – Reliable Aerospace Connector for Industrial Applications
Secure your aerospace and defense projects with Deutsch modular connectors. Designed for aircraft cabin systems, these reliable, lightweight, and durable connectors meet strict standards like EN4165, ARINC 809, and BACC65. Easy to install and reconfigure, they offer high vibration resistance, temperature endurance from -55°C to +175°C, and excellent EMI shielding. Perfect for harsh environments, ensure optimal performance with quick connectivity solutions suitable for military, marine, and commercial aerospace applications. Order online now to ensure seamless integration and trusted quality.
Buy Deutsch 787805510M now and experience unmatched reliability and performance for demanding aerospace and military systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 787805510M?
You can click on the BUY or RFQ button to purchase 787805510M from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 787805510M?
You can download the 787805510M datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 787805510M?
TE CONNECTIVITY
