TE CONNECTIVITY 787805513M Aerospace Connector Module
Deutsch DMC-MD series connectors are reliable, modular, and lightweight solutions designed for aircraft in-flight entertainment and cabin systems. They meet aerospace standards EN4165, ARINC 809, and BACC65, offering flexible configurations with easy installation and high durability. Made from composite housings with gold-plated copper alloy contacts, these connectors operate across temperatures from -55°C to +175°C and withstand vibration, salt spray, and multiple mating cycles. Ideal for aerospace, defense, and marine applications requiring secure, EMI-shielded connections and customizable shell/keying options.
TE CONNECTIVITY 787805513M Aerospace Connector Module Specifications:
- Housing Material: Composite, nickel plated
- Module Material: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- PCB Contacts: Copper alloy, plated gold over nickel, with lead or ROHS tinning
- Temperature Range: -55°C to +175°C
- Vibration Resistance: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Contact Current Rating: Size 24: 3 A, Size 23: 5 A, Size 22: 5 A, Size 20: 75 A, Size 16: 13 A, Size 12: 23 A, Size 8: 46 A
- EMI Shielding Attenuation: 50 dB at 100 MHz, 30 dB at 1000 MHz
- Connector Types: Single Module, Plug, Short Receptacle, Extender Receptacle
- Shell Finish: Nickel-plated
- Compatibility: EN3155-70/71, aluminium cable contacts

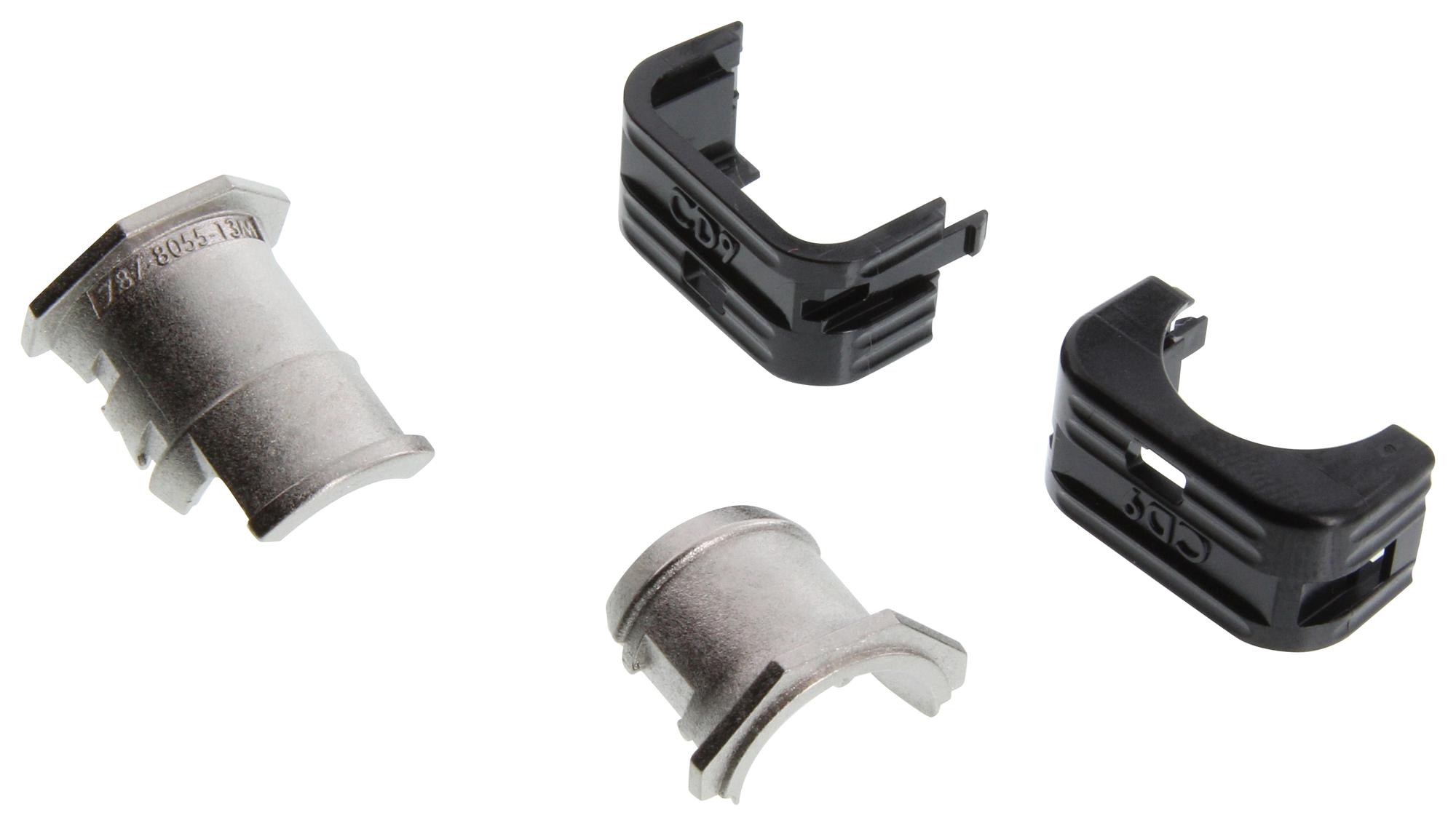

Buy the Deutsch DMC-787805513M – Reliable Aerospace Modular Connectors for Industrial Applications
Order the Deutsch DMC-787805513M connector module online for your aerospace, defense, or marine project. This high-quality, modular connector provides flexible configurations, easy installation, and exceptional durability to ensure secure, EMI-shielded connections. Made with nickel-plated composite housing and gold-plated contacts, it supports a temperature range from -55°C to +175°C and withstands vibration, salt spray, and repeated mating cycles. Perfect for aircraft in-flight systems, cabin connections, or other industrial applications needing reliable and customizable connectivity solutions.
Get Deutsch DMC-787805513M today—built for precision, reliability, and long-lasting performance in aerospace and defense systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 787805513M?
You can click on the BUY or RFQ button to purchase 787805513M from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 787805513M?
You can download the 787805513M datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 787805513M?
TE CONNECTIVITY
