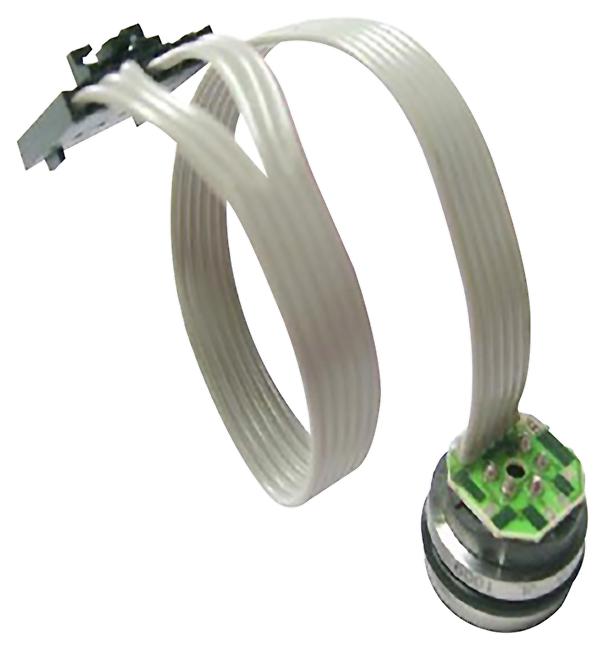

TE CONNECTIVITY 86100AR Pressure Sensor
The 86 compensated is a compact, media-compatible pressure sensor housed in 316L stainless steel, suitable for OEM use and corrosive environments. It employs silicon oil for pressure transfer from the diaphragm to the sensor element, with laser-trimmed resistors for temperature compensation and offset correction. Designed for O-ring mounting, it operates reliably from -40°C to +125°C, with a 0-100mV output, and is used in medical, water, gas measurement, and industrial applications. It offers high accuracy, interchangeability, and robust performance across standard ranges up to 300 psig.
TE CONNECTIVITY 86100AR Pressure Sensor Specifications:
- Measurement Range: 0 to 100 psi, 0 to 300 psi, 0 to 500 psi
- Output: 0-100mV
- Temperature Range: -40°C to +125°C
- Housing Material: 316L stainless steel
- Power Supply: 1.5mA supply current
- Pressure Non-Linearity: ±0.2%
- Zero Pressure Output: ±2.0mV
- Span Adjustment: Interchangeable span within +1%
- Temperature Error: ±0.75% maximum from -20°C to +85°C for 15 psi range
- Response Time: ~1.5ms
- Media Compatibility: Liquids and gases compatible with 316/316L stainless steel
- Sealing: O-ring mounting with Buna-N seal
- Operating Temperature: -20°C to +105°C maximum
- Insulation Resistance: >5MΩ at 50VDC
- Dimensions: Included in schematic, typical size 6.00 max inches
- Certifications: RoHS compliant
Buy the TE Connectivity Series 86 Pressure Sensor: 86100AR
Enhance your projects with the TE Connectivity Series 86 pressure sensor, offering excellent corrosion resistance, high accuracy, and a robust 0-100mV output. Ideal for OEM applications in medical, water, and gas measurements, its compact design and temperature compensation ensure reliable performance across -40°C to +125°C. Easy to install with O-ring mounting, it guarantees durability and consistency. Purchase online today to benefit from fast delivery and technical support, ensuring your industrial and scientific projects operate smoothly with dependable measurement.
Order your TE Connectivity Series 86 pressure sensor today and ensure precise, reliable measurements for industrial and medical applications.
