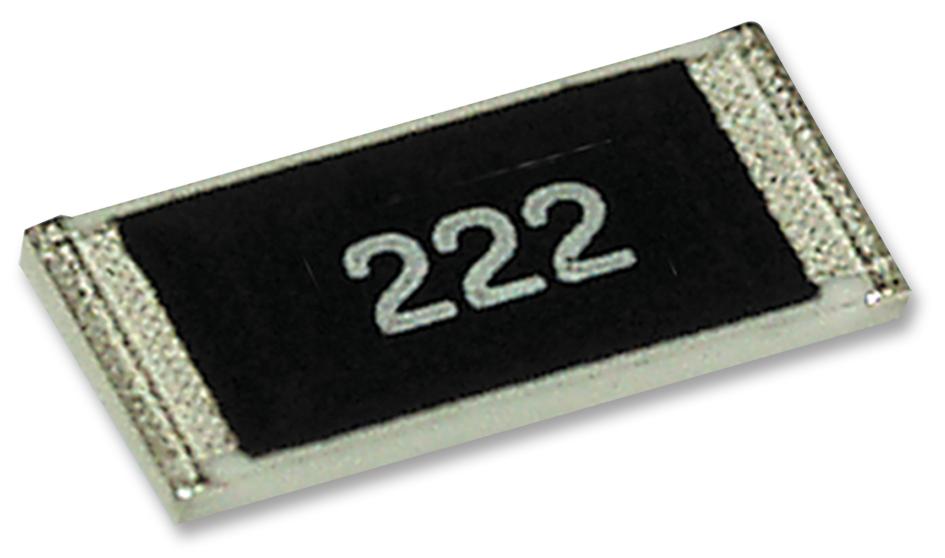

TE CONNECTIVITY 918792158 Precision Chip Resistor
The product is a high-precision, thin film chip resistor series available in various sizes from 0201 to 2512. It features TCRs as low as 15ppm/°C, resistance tolerances down to 0.05%, and wide power ratings up to 0.5W at 70°C. Suitable for applications requiring high stability and accuracy, including communications, industrial controls, instrumentation, and medical devices. These resistors have electroplated matte Sn terminals, adhere to IEC standard value grids, and are designed for reliable placement with uniform physical dimensions, ensuring performance in critical electronic circuits.
TE CONNECTIVITY 918792158 Precision Chip Resistor Specifications:
- Chip Sizes: 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Rated Power @70°C: 0.03125W to 0.5W depending on size
- Resistance Range: 0Ω to 3GΩ (varies by size)
- Tolerance: ±0.05%, ±1%, ±2%
- Temperature Coefficient (ppm/°C): 15 to 50
- Max Operating Voltage: 15V to 150V
- Max Overload Voltage: 30V to 300V
- Operating Temp. Range: -55°C to +155°C
- Insulation Resistance: >1000 MΩ
- Stability: 0.5%
- Environmental Standards: MIL-STD-202 methods for overload, moisture, and durability testing
- Material: NiCr resistor layer with epoxy overcoat
- Assembly: Compatible with reflow and wave soldering processes
- Marking: IEC 4-digit code or 3-digit E24/E96 marking depending on size
Buy the Connectivity Series CPF: High-Precision Thin Film Resistors 918792158
Order Connectivity Series CPF precision chip resistors online today to ensure your electronic projects benefit from exceptional accuracy, low TCR, and high stability. Designed for demanding applications, these resistors offer tight resistance tolerances down to 0.05%, wide resistance ranges, and various sizes from 0201 to 2512. Manufactured with durable materials and advanced processes, they are suitable for industrial controls, medical devices, and communication equipment. Purchase now for fast delivery and reliable performance in your critical electronic circuits.
Get Connectivity Series CPF high-precision thin film resistors today—built for accuracy, stability, and reliable performance across various electronic applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 918792158?
You can click on the BUY or RFQ button to purchase 918792158 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 918792158?
You can download the 918792158 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 918792158?
TE CONNECTIVITY
