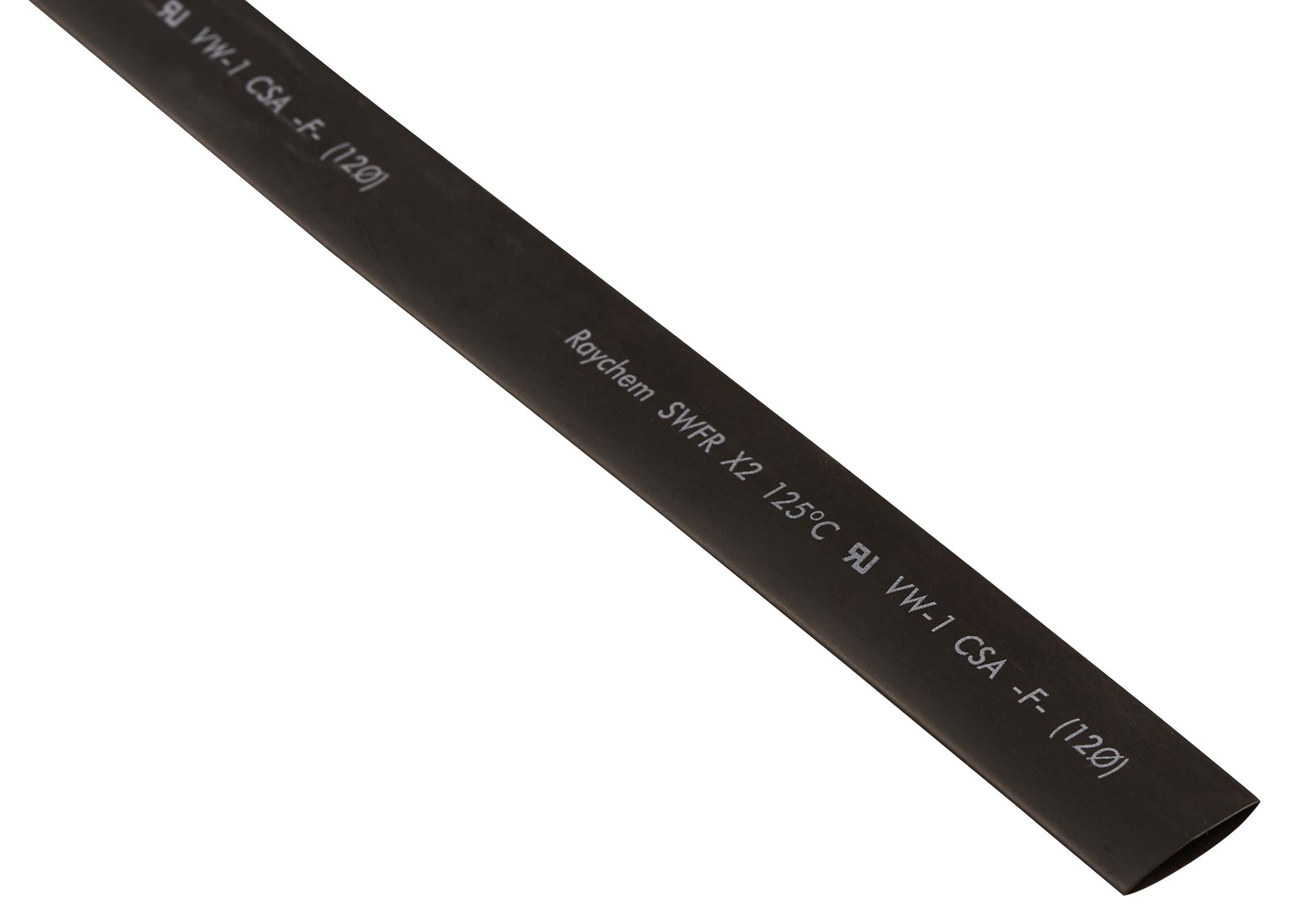

TE CONNECTIVITY X21100FSPSM Heat-shrink tubing
X2 heat-shrinkable tubing by Raychem is a highly flame-retardant, halogen-free, environmentally friendly material designed for insulating and protecting electrical wires and connections. It provides excellent flexibility, thermal stability, and resistance to physical abuse with a low recovery temperature of 70°C and full recovery at 90°C. Suitable for continuous operation from -30°C to 125°C, this tubing is ideal for bundling wires, splicing, and insulation in commercial applications. Certified by UL and CSA, it offers reliable, long-term durability and safety in electrical systems.
TE CONNECTIVITY X21100FSPSM Heat-shrink tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Wall thickness: Fully recovered varies by size, typically around 0.56 mm
- Inside diameter: Ranges from 8 mm to 30 mm depending on size
- Color: Standard Black
- Type: Crosslinked polyolefin, flame-retardant, halogen-free
- Certifications: UL Listed, CSA Certified
- Packaging: Spools
- Marking: Marked with UL, CSA, and Japan -F- markings
Buy the Raychem Series SWFR X2 Insulation Heat-Shrink Tubing: X21100FSPSM
Discover the convenience of purchasing Raychem SWFR X2 heat-shrink tubing online. This flame-retardant, halogen-free tubing ensures excellent electrical insulation, thermal stability, and physical durability for various industrial and commercial wiring applications. With UL and CSA certification, it provides confidence in safety and compliance. The tubing's easy application through molding, dip coating, or tape wrapping makes it ideal for protecting wires and connections in demanding environments. Order now to enhance your electrical projects with reliable, long-lasting insulation.
Buy Raychem SWFR X2 heat-shrink tubing now and experience unmatched flame-retardant performance and reliable wire insulation solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY X21100FSPSM?
You can click on the BUY or RFQ button to purchase X21100FSPSM from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part X21100FSPSM?
You can download the X21100FSPSM datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of X21100FSPSM?
TE CONNECTIVITY
