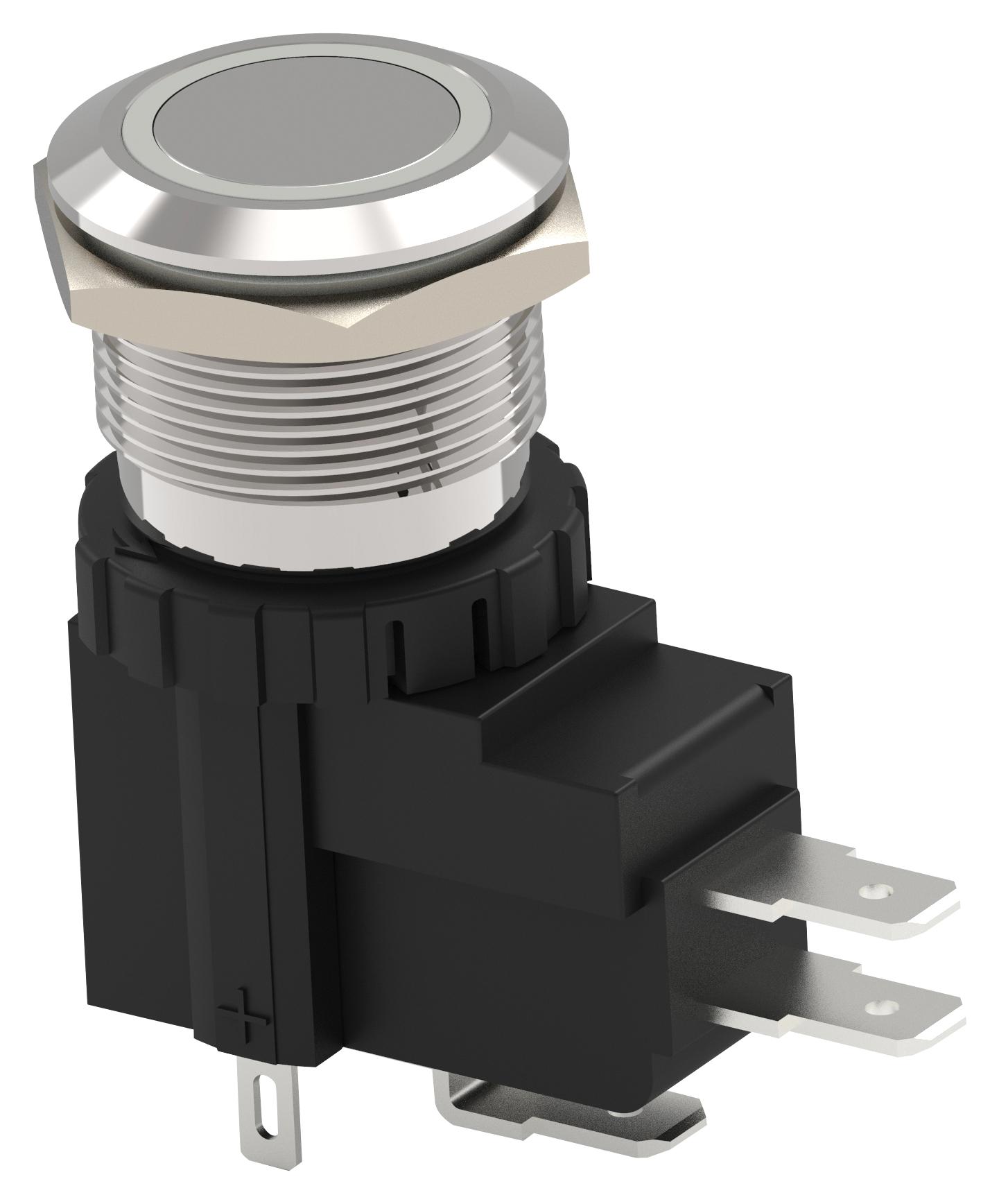

TE CONNECTIVITY AVH19LSFE3241604 Anti-Vandal Pushbutton Switch
The AVH Series anti-vandal high current pushbutton switches are designed for demanding applications requiring high current ratings of 16A and 26A at 125/250VAC. These robust switches feature various diameters: 19mm, 22mm, and 25mm, with options for momentary or locking actuation. They incorporate LED lighting with multiple color options, seals for durability (IP67), and are UL recognized. Ideal for machinery, automotive, electronics, access control, shipping, medical, and industrial equipment, they provide reliable performance and versatile installation for high-current switching needs.
TE CONNECTIVITY AVH19LSFE3241604 Anti-Vandal Pushbutton Switch Specifications:
- Contact Rating: 16A, 26A/125VAC, 26A/250VAC
- Bushing Sizes: 19mm, 22mm, 25mm
- Panel Thickness: Maximum 10mm (.39 inches)
- Panel Cut-out Diameter: 19.10mm, 22.20mm, 25.20mm
- Ingress Protection: IP67
- LED Types: Non-LED, Ring, Power Symbol, Illuminated Ring, Illuminated Power Symbol
- LED Colors: White, Red, Yellow
- Terminal Types: Various (16A, 26A) configurations
- Mechanical Life: 1,000,000 cycles (Momentary), 500,000 cycles (Locking)
- Electrical Life: 10,000 cycles
- Sealing Material: Silicone
- Operation Force: 3.5±1.5N
- Travel: 3.2mm
- Operating Temperature: -25°C to 85°C
- Certifications: UL Recognized
Buy the Buy TE Connectivity AVH Switch Part Number AVH19LSFE3241604 Online
Purchase the TE Connectivity AVH Series anti-vandal high current pushbutton switch online today. Designed for demanding environments, it offers high current ratings of up to 26A at 125/250VAC, and features robust silicone sealing, IP67 ingress protection, and versatile LED lighting options for enhanced visibility. Available in 19mm, 22mm, and 25mm sizes with momentary or locking actuation, this switch ensures dependable operation in machinery, automotive, electronics, access control, shipping, and industrial equipment. Shop now for fast delivery and reliable performance.
Buy TE Connectivity AVH19LSFE3241604 now and experience unmatched reliability and performance in high-current vandal-resistant switches.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH19LSFE3241604?
You can click on the BUY or RFQ button to purchase AVH19LSFE3241604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH19LSFE3241604?
You can download the AVH19LSFE3241604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH19LSFE3241604?
TE CONNECTIVITY
