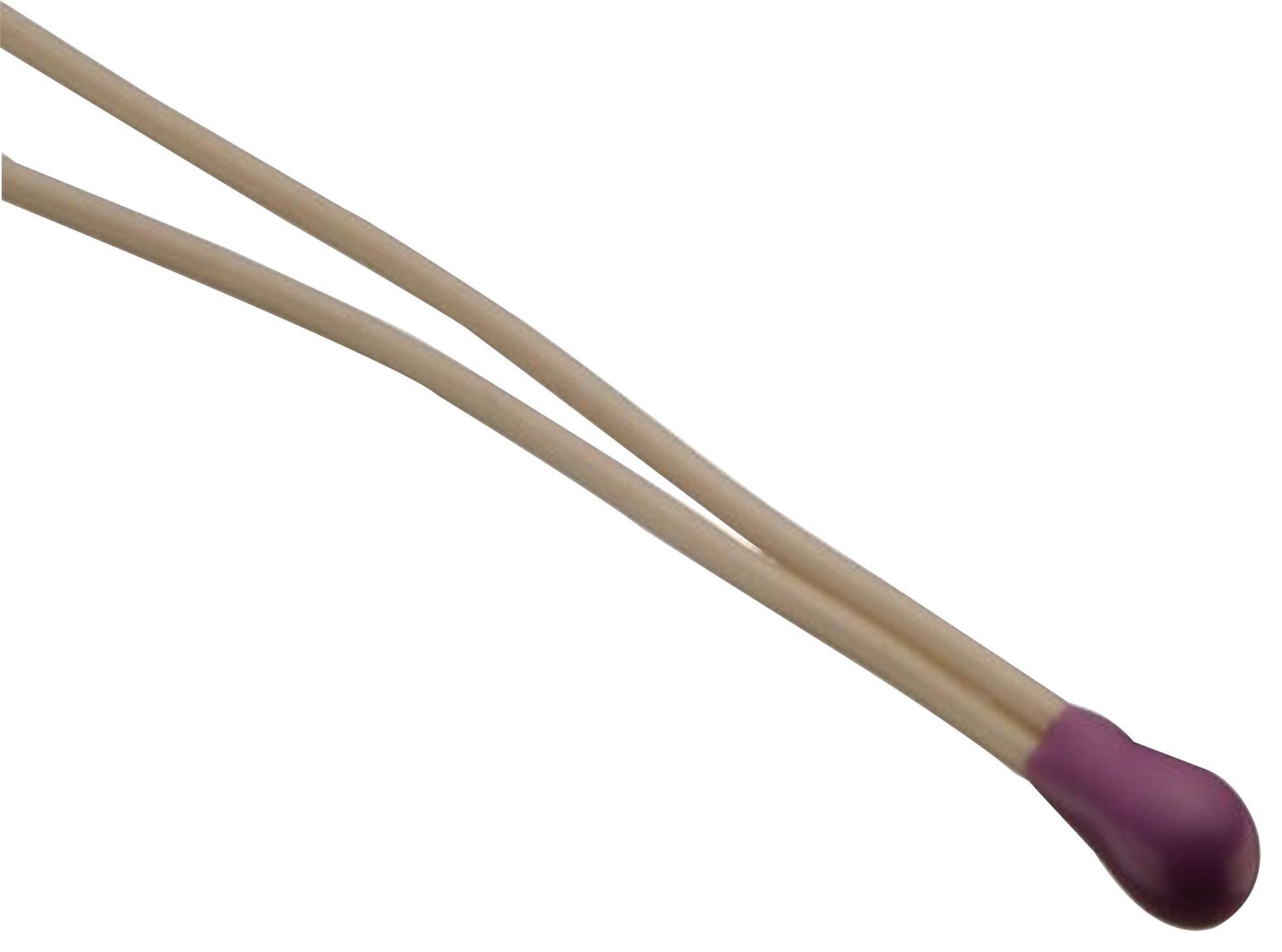

TE CONNECTIVITY GA100K6A1IA Temperature Sensor
The 100K6A1I Series II thermistor is a high-precision NTC temperature sensor designed for temperature sensing, control, and compensation in industrial instrumentation. Encapsulated in Stycast epoxy resin with a thermally conductive epoxy coating, it features 30 AWG solid silver-plated copper leads insulated with white PTFE. With a resistance of 100000 ohms at 25°C, it offers ranges from -40°C to +125°C. Proven stability, rapid response time (<1 sec), and interchangeable design make it suitable for assembly into probes and broad instrumentation applications, ensuring reliable performance in demanding environments.
TE CONNECTIVITY GA100K6A1IA Temperature Sensor Specifications:
- Resistance: 100000 ohms at +25°C
- Resistance tolerance: +0.1°C to +1.0°C from 0°C to +70°C depending on model
- Temperature range: -40°C to +125°C
- Alpha value at 25°C: 4.68 %
- Beta value 25/85K: 4261
- Response time: <1 second in liquids
- Dissipation constant in still air: 0.85 mW/°C
- Dimensions: Diameter 2.4 mm max, Length 76 ±2 mm
- Lead wire: 30 AWG solid silver-plated copper insulated with white PTFE
- Encapsulation: Stycast epoxy resin
- Features: Interchangeability, proven stability, rapid response, white PTFE insulation, thermally conductive epoxy coating
Buy the TE Connectivity 100K6A1I – Reliable Temperature Sensor for Industrial Applications
Purchase the TE Connectivity 100K6A1I thermistor online today and experience high accuracy, rapid response, and reliable performance for industrial temperature sensing. Perfect for instrumentation, control systems, and probe assembly, this sensor features excellent stability, PTFE insulated leads, and encapsulation in durable epoxy resin. Designed for a temperature range from -40°C to +125°C, it ensures consistent measurements and easy integration into various equipment for optimal operational efficiency. Secure your supply now for dependable temperature management.
Get TE Connectivity 100K6A1I today—built for precision, stability, and long-lasting durability in demanding industrial environments.
