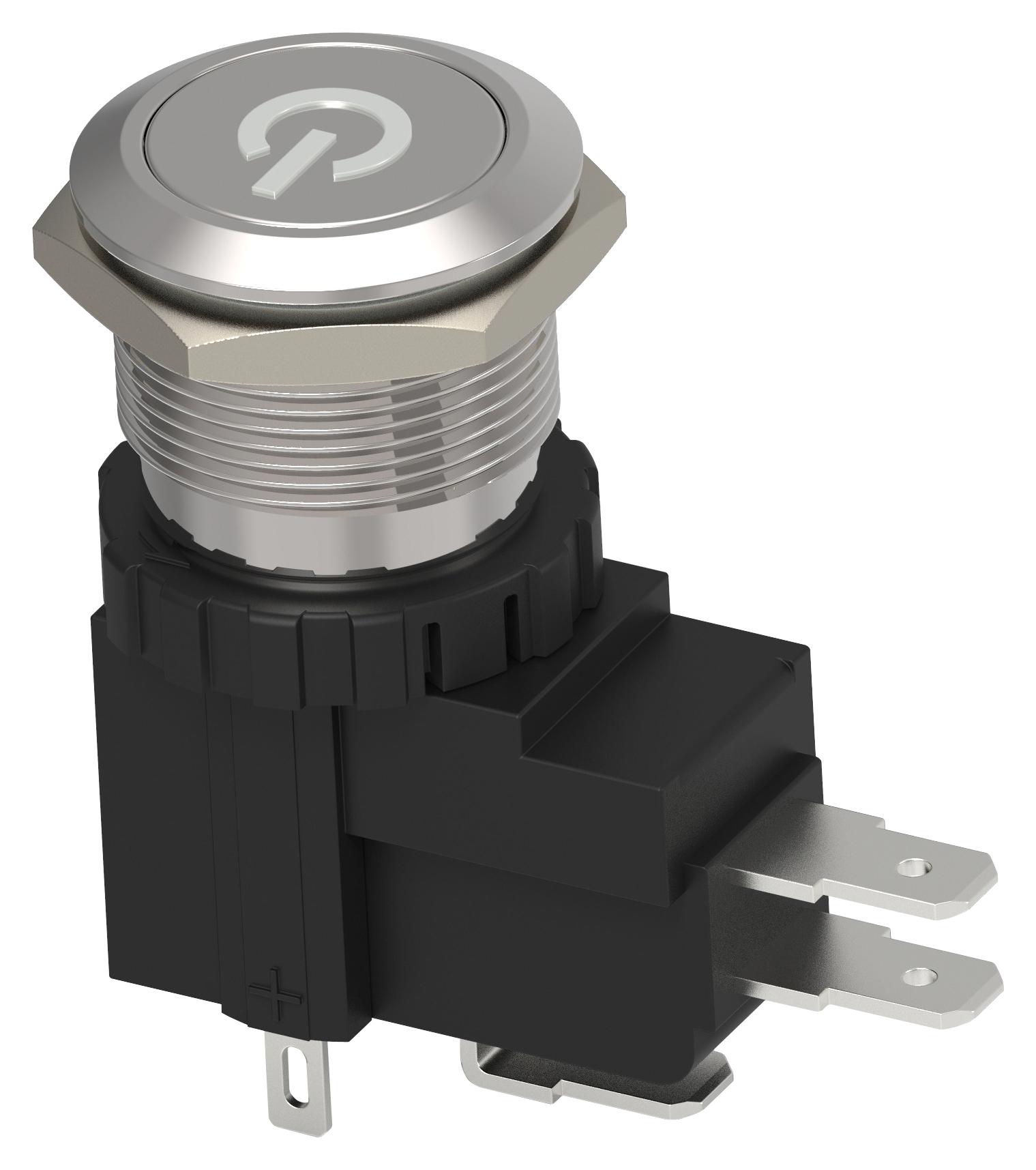

TE CONNECTIVITY AVH19LSFP6241604 anti-vandal pushbutton switch
The AVH Series anti-vandal high current pushbutton switches are designed for high-current applications in machinery, automotive, electronics, and access control systems. Available in 19mm, 22mm, and 25mm bushing sizes, these switches support ratings of 16A and 26A at 125 or 250VAC. They feature momentary and locking actuation, LED options with multiple colors, and are UL Recognized. Sealed with silicone for ingress protection. Suitable for panel thickness up to 10mm, offering reliable operation with a mechanical life of up to 1,000,000 cycles, ideal for demanding industrial and security environments.
TE CONNECTIVITY AVH19LSFP6241604 anti-vandal pushbutton switch Specifications:
- Bushing Sizes: 19mm, 22mm, 25mm
- Actuation: Momentary & Locking
- Contact Rating: 16A, 26A / 125V, 250VAC
- LED Types: Non-LED, Power Symbol, Ring + Power Symbol, Illuminated Power Symbol, Illuminated Ring
- Electrical Life: up to 1,000,000 cycles (Mechanical), 50,000 cycles (Electrical)
- Material: Silicone-sealed for ingress protection (P67)
- Operating Temperature: -25°C to 85°C
- Panel Thickness: Max 10mm
- Panel Cut-outs: 19.10mm, 22.20mm, 25.20mm
- Mounting: Panel mounted with threaded bushings
- Terminal Types: #187 16A, #250 26A
- Dimensions: 19mm - 19.10mm cut-out, 22mm - 22.20mm cut-out, 25mm - 25.20mm cut-out
- Ingress Protection: IP67
- Sealing: Silicone
- Mechanical Operation Force: 3.5 ± 1.5N
- Switch Travel: 3.2mm
Buy the TE Series AVH High Current Pushbutton Switch: AVH19LSFP6241604
Order TE AVH19LSFP6241604 high current vandal-proof pushbutton switch online today. Designed for industrial and security applications, it features 16A/26A ratings, sealed silicone protection, and various LED options. Perfect for machinery, electronics, and access control systems, this switch offers reliable performance with a mechanical life of up to 1,000,000 cycles. Easy to install with panel cut-outs of 19.10mm, 22.20mm, or 25.20mm, ensuring long-lasting operation in harsh environments.
Get TE AVH19LSFP6241604 today—built for high current durability and vandal resistance in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH19LSFP6241604?
You can click on the BUY or RFQ button to purchase AVH19LSFP6241604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH19LSFP6241604?
You can download the AVH19LSFP6241604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH19LSFP6241604?
TE CONNECTIVITY
