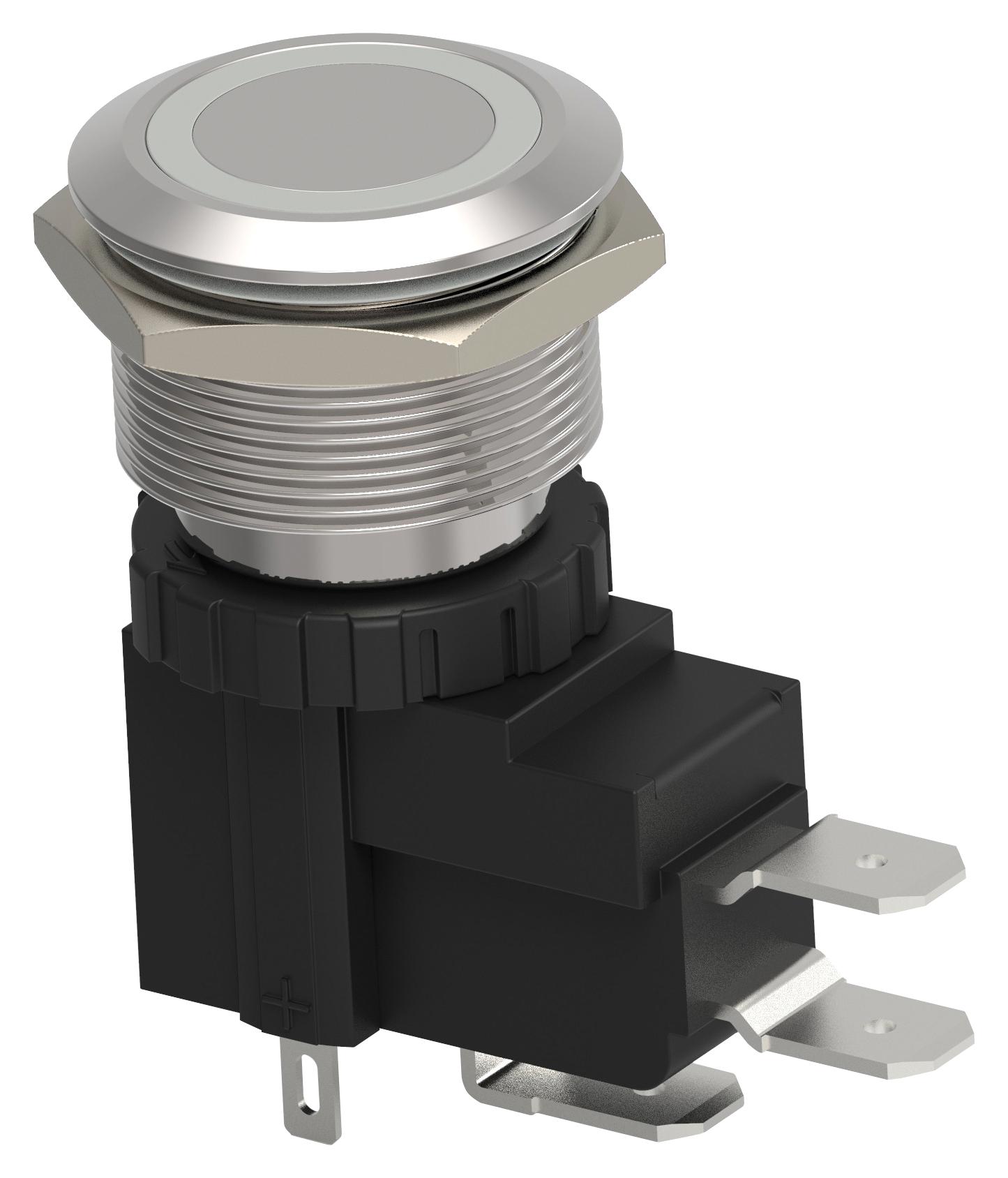

TE CONNECTIVITY AVH22LSSFE3242604 High-Current Pushbutton Switch
The AVH Series Anti-Vandal High Current Pushbutton Switches are robust, high-quality switches designed for applications requiring high current ratings up to 26A at 125/250VAC. These switches feature multiple bushing sizes—19mm, 22mm, and 25mm—offering versatile mounting options. They support momentary and locking operation modes, with LED indicators in various colors to enhance visibility. The switches are sealed with silicone, rated IP67/IP69K for ingress protection, and offer mechanical longevity of up to 1,000,000 cycles. Ideal for machinery, automotive, control systems, and more, they are UL recognized for safety and durability.
TE CONNECTIVITY AVH22LSSFE3242604 High-Current Pushbutton Switch Specifications:
- Contact Rating: 16A, 26A/125VAC, 250VAC
- Bushing Sizes: 19mm, 22mm, 25mm
- Panel Thickness: max 10.0mm
- Panel Cut-out: 19.10mm, 22.20mm, 25.20mm
- Dimensions: 19mm dia. x 50mm length, 22mm dia. x 50mm length, 25mm dia. x 50mm length
- LED Light Types: Without LED, Power Symbol, Ring, Ring + Power Symbol, illuminating options available
- Operating Force: 3.5±1.5N
- Mechanical Life: 1,000,000 cycles
- Ingress Protection: IP67/IP69K
- Sealing: Silicone
- Temperature Range: -25°C to 85°C
- Terminal Types: 16A #187, 26A #250
- Certifications: UL Recognized
- Dimensions shown are reference only, subject to change
Buy the Vandal-Resistant Switch 22mm – Reliable High-Current Pushbutton for Industrial Applications
Purchase the TE Series AVH22LSSFE3242604 high-current vandal-resistant pushbutton switch online today. Engineered for durability and high current capacity, this switch features multiple bushing options, LED indicators, and robust ingress protection ratings IP67/IP69K. Ideal for machinery, automotive, security, and control systems, it offers reliable performance with a mechanical life of up to 1,000,000 cycles and UL recognition. Secure your project with a switch designed to withstand harsh industrial conditions and provide long-lasting dependable operation.
Order your TE Series AVH22LSSFE3242604 high-current vandal-resistant switch today and ensure your machinery or control systems operate with dependable, durable switches designed for demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH22LSSFE3242604?
You can click on the BUY or RFQ button to purchase AVH22LSSFE3242604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH22LSSFE3242604?
You can download the AVH22LSSFE3242604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH22LSSFE3242604?
TE CONNECTIVITY
