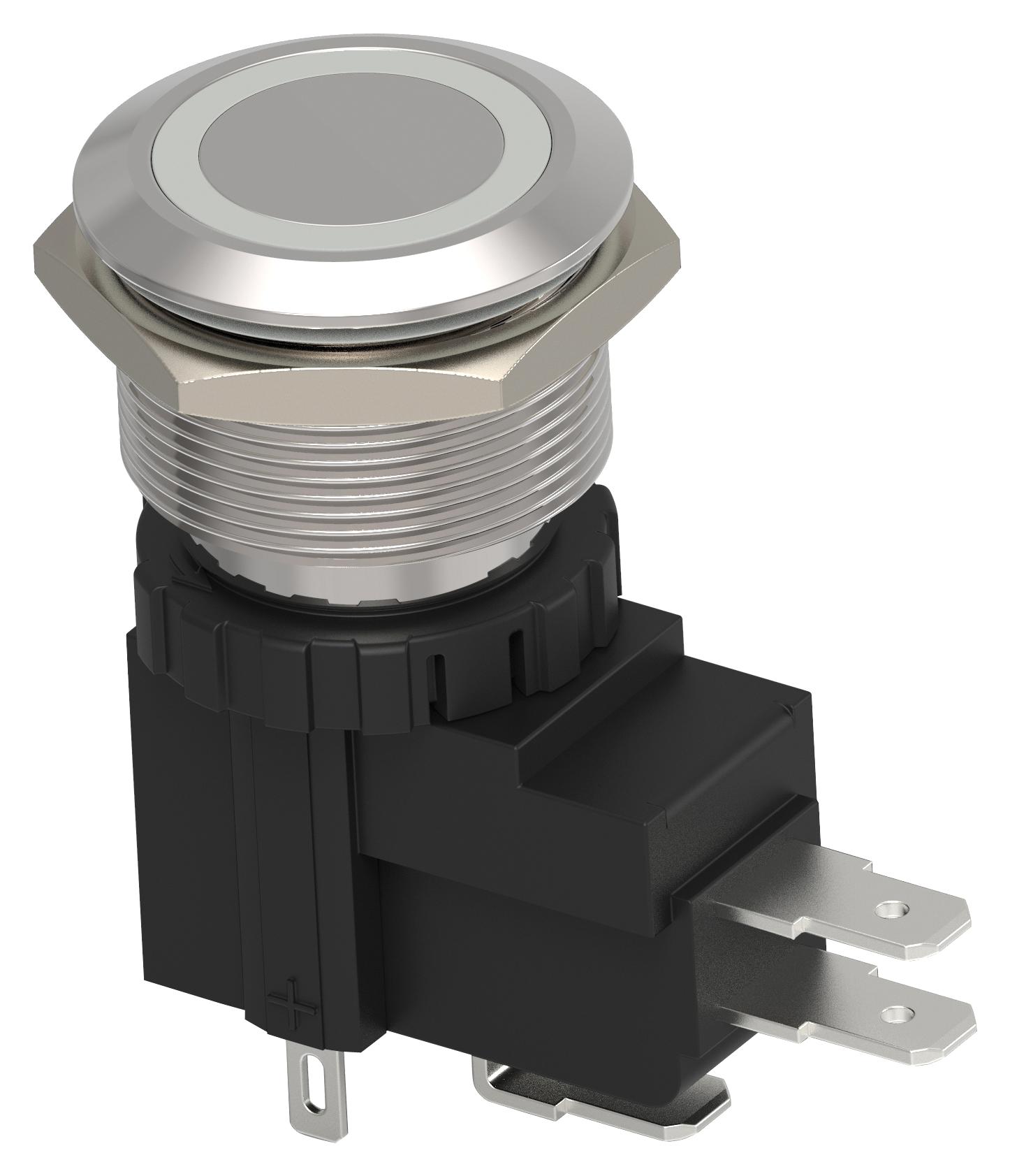

TE CONNECTIVITY AVH22LSSFE7121604 High Current Pushbutton Switch
The AVH Series anti-vandal high current pushbutton switches are designed for high power applications in machinery, automotive, electronics, and security systems. Available in 19mm, 22mm, and 25mm bushing sizes, these switches feature ratings of 16A or 26A at 125/250VAC, with momentary or locking operation modes. They are sealed with silicone and rated for -25°C to 85°C. The switches include various LED light options with different colors and voltages, and are UL recognized for durability and reliability in demanding environments.
TE CONNECTIVITY AVH22LSSFE7121604 High Current Pushbutton Switch Specifications:
- Contact Rating: 16A or 26A at 125/250VAC
- Bushing Sizes: 19mm, 22mm, 25mm
- Panel Cut-out: 19.10mm, 22.20mm, 25.20mm
- Panel Thickness: Max 10.0mm
- Operation Types: Momentary and Locking
- Operation Force: 3.5±1.5N
- Travel: 3.2mm
- Ingress Protection: P67
- Operating Temperature: -25°C to 85°C
- Sealing: Silicone
- LED Light Types: Without LED, Power Symbol, Ring, or Ring + Power Symbol
- Electrical Life: 10,000 cycles at 16A
- Mechanical Life: 1,000,000 cycles
- Certifications: UL Recognized
Buy the TE AVH22 Series – Reliable Anti-Vandal High Current Pushbutton Switches for Industrial Applications
Purchase the TE AVH22 High Current Pushbutton Switches online today and experience top-quality anti-vandal protection for your machinery, security systems, and industrial equipment. These switches feature high current ratings, sealed silicone design, multiple size options, and LED illumination for enhanced visibility and functionality. Designed for rugged applications, they ensure reliable performance with a mechanical lifespan of up to 1 million cycles. Secure your industrial setup now with this durable, UL-recognized pushbutton switch that supports demanding operational environments.
Get TE AVH22 Series today—built for high power, durability, and secure operation in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH22LSSFE7121604?
You can click on the BUY or RFQ button to purchase AVH22LSSFE7121604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH22LSSFE7121604?
You can download the AVH22LSSFE7121604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH22LSSFE7121604?
TE CONNECTIVITY
