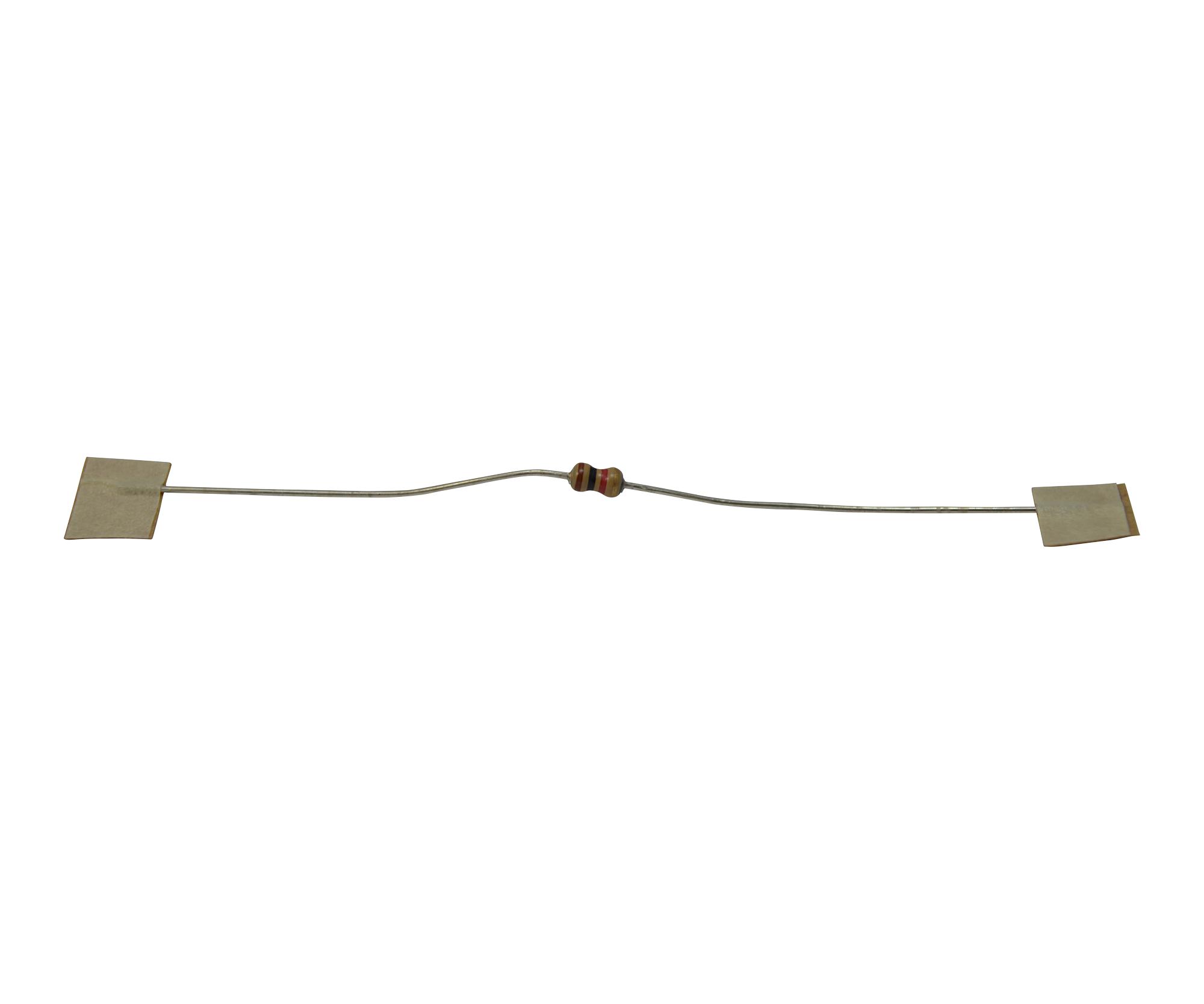

TE CONNECTIVITY CFR16J680R Carbon Film Resistor
The TE CONNECTIVITY CFR16J680R is a carbon film resistor designed for versatility and cost-effectiveness. Its ceramic core with a high alumina content provides a favorable power-to-size ratio. The resistive element is a thin film of carbon deposited on a ceramic core, ensuring efficient heat dissipation. These resistors are widely used in audio equipment, communication systems, measurement devices, and computer applications due to their reliability and performance characteristics. They are available in various sizes and tolerances to meet diverse circuit requirements.
TE CONNECTIVITY CFR16J680R Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Code letter: G, J
- Temp. Coefficient (ppm/°C): 0 to -450 / 0 to -700 / 0 to -1500
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Climatic Category (°C): 55/155/56
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
