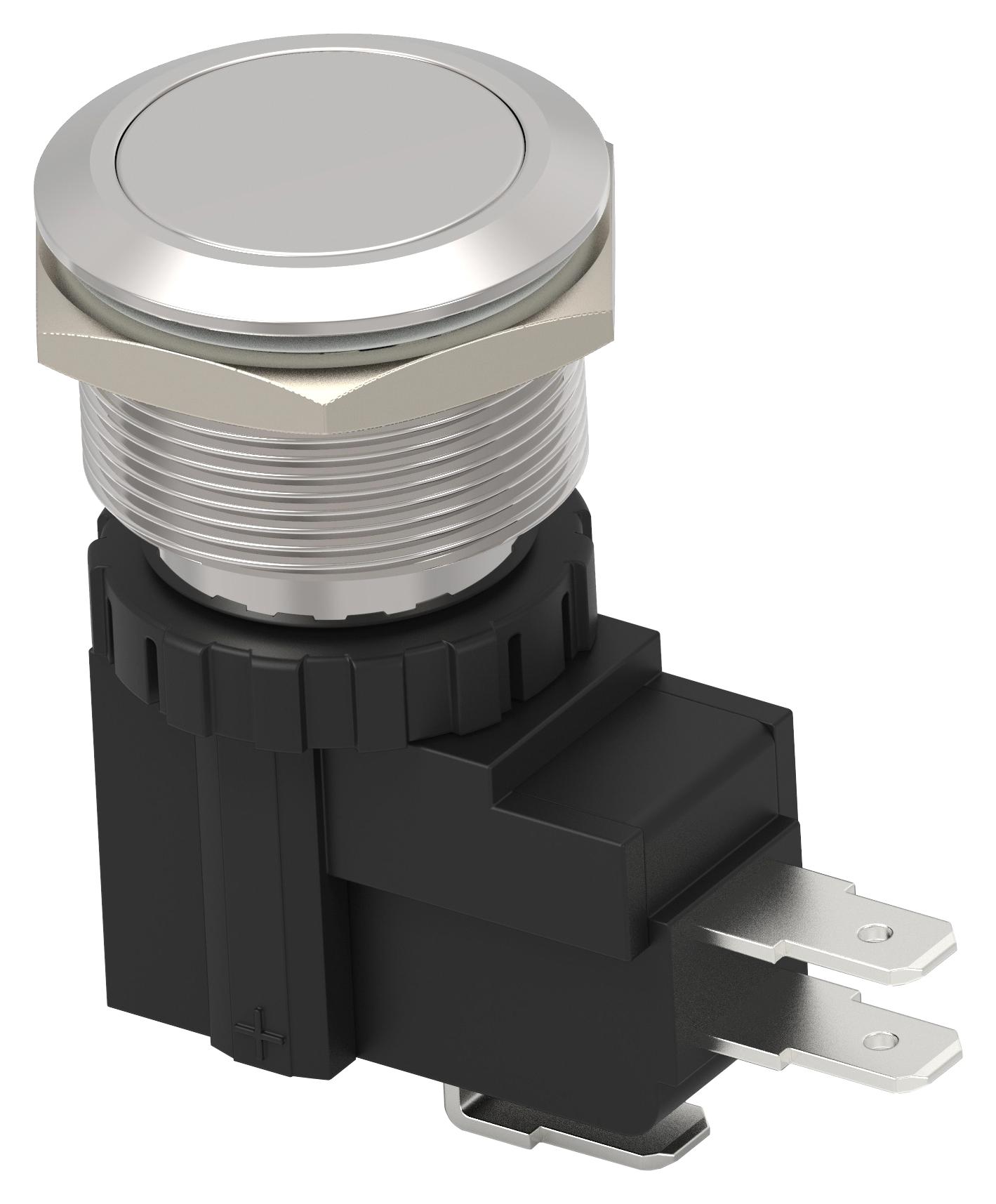

TE CONNECTIVITY AVH22LSSFO001604 High Current Vandal Switch
The AVH Series anti-vandal high-current pushbutton switches are designed for demanding industrial and control applications. Available in 19mm, 22mm, and 25mm sizes, these switches support high current ratings of 16A and 26A at 125/250VAC, with options for momentary or locking operation. Features include silicone sealing, multiple LED light configurations, and diverse terminal types, ensuring durability and versatility in harsh environments. Suitable for machinery, automotive, security, medical, and shipping equipment, these switches combine reliability with customizable illumination and actuation options for robust industrial control solutions.
TE CONNECTIVITY AVH22LSSFO001604 High Current Vandal Switch Specifications:
- Bushing Sizes: 19mm, 22mm, 25mm
- Contact Rating: 16A, 26A/125VAC, 250VAC
- Panel Thickness: Maximum 10.0mm
- Panel Cut-out Diameter: 19.10mm (19mm), 22.20mm (22mm), 25.20mm (25mm)
- Operating Force: 3.5±1.5N
- Travel: 3.2mm
- Mechanical Life: 1,000,000 cycles (momentary), 500,000 cycles (locking)
- Electrical Life: 10,000 cycles
- Ingress Protection: IP67
- Seal Material: Silicone
- LED Light Types: Non-LED, Power Symbol, Ring, Illuminated Power Symbol
- Terminal Types: #187 (16A), #250 (26A)
- Temperature Range: -25°C to 85°C
- Actuation: Momentary and Locking available
- Compliance: UL Recognized
Buy the TE-CONNECTIVITY AVH22LSSFO001604 – Reliable High Current Vandal Switch for Industrial Applications
Purchase the AVH Series high-current vandal switch online today—engineered for tough industrial environments. These switches feature high current ratings up to 26A at 125/250VAC, multiple LED options, and robust silicone sealing for durability. Suitable for machinery, automotive, and security applications, they offer momentary and locking modes, IP67 protection, and easy panel mounting. Enjoy fast delivery and reliable performance, ensuring your control systems remain operational under harsh conditions. Buy online now for superior quality and long-term reliability.
Get AVH22 high current anti-vandal pushbutton switch today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH22LSSFO001604?
You can click on the BUY or RFQ button to purchase AVH22LSSFO001604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH22LSSFO001604?
You can download the AVH22LSSFO001604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH22LSSFO001604?
TE CONNECTIVITY
