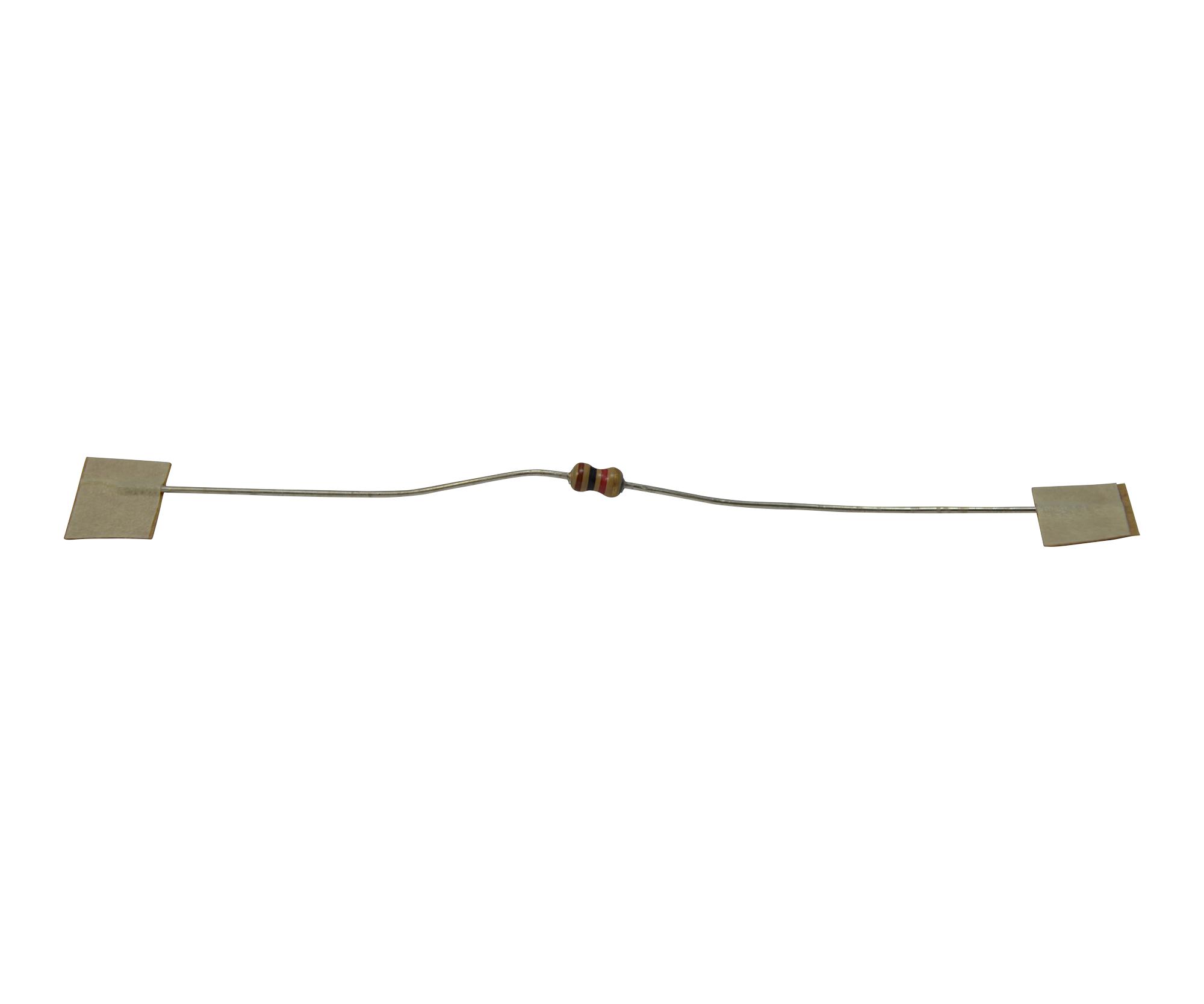

TE CONNECTIVITY CFR16J1K2 Carbon Film Resistor
The TE Connectivity CFR16J1K2 is a carbon film resistor designed for versatile applications. Its construction utilizes a thin film of carbon deposited on a ceramic core, ensuring high thermal conductivity and power-to-size ratios. The resistor is force-fitted with metal end caps and features tinned copper lead wires for secure connections. Coated with phenolic and epoxy resins, it offers robust protection and consistent performance in audio, communication, measurement, and computer circuits. The CFR series is suitable for automatic insertion equipment and provides a cost-effective solution for various electronic designs.
TE CONNECTIVITY CFR16J1K2 Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Code letter: G, J
- Temp. Coefficient (ppm/°C): 0 to -450 / 0 to -700 / 0 to -1500
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Climatic Category (°C): 55/155/56
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
Buy the CFR16J1K2 TE CONNECTIVITY Carbon Film Resistor | myMectronic
Purchase the TE CONNECTIVITY CFR16J1K2 Carbon Film Resistor securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY CFR16J1K2?
You can click on the BUY or RFQ button to purchase CFR16J1K2 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CFR16J1K2?
You can download the CFR16J1K2 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of CFR16J1K2?
TE CONNECTIVITY
