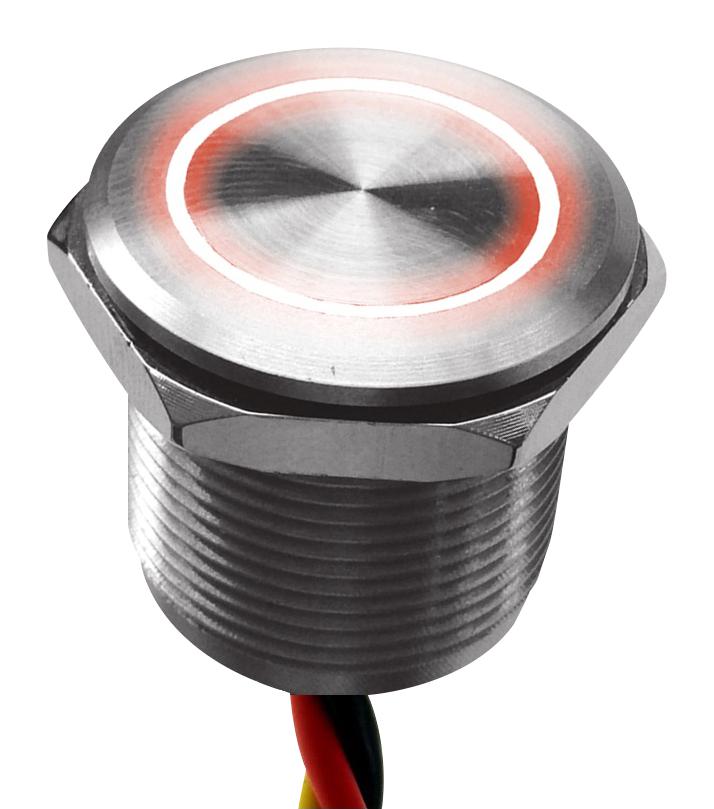

TE CONNECTIVITY AVP19MAIOFE0DT5A04 Anti-Vandal Piezo Switch
TE Connectivity's AVP Series Anti-Vandal Illuminated and Non-Illuminated Piezo Switches are designed for demanding applications requiring durability and reliability. These switches are IP68 rated, offering excellent protection against dust and water ingress. Available in 16mm, 19mm, and 22mm bushing sizes, they cater to a wide range of panel thicknesses. The AVP switches boast a contact rating of 5-24VDC / 1A, 5-24VAC / 1A, and a long operating life of up to 50 million cycles. They are ideal for industrial control products, communication equipment, and medical devices where a robust and reliable switching solution is essential.
TE CONNECTIVITY AVP19MAIOFE0DT5A04 Anti-Vandal Piezo Switch Specifications:
- Operating Temperature Range: -20 ℃ to +65 ℃
- Storage Temperature Range: -40 ℃ to +85 ℃
- Current Range: 1A, 5-24VDC Max. / 1A, 5-24VAC Max.
- Type of Actuation: Momentary
- Contact Resistance: 1Ω Max.
- Bushing Sizes: 16mm, 19mm, 22mm
- Operating Life: Up to 50 Million Cycles
- Sealing: Silicone, Epoxy
- Wire Leads: 26AWG, 500mm+2.54 2x3 Connector
