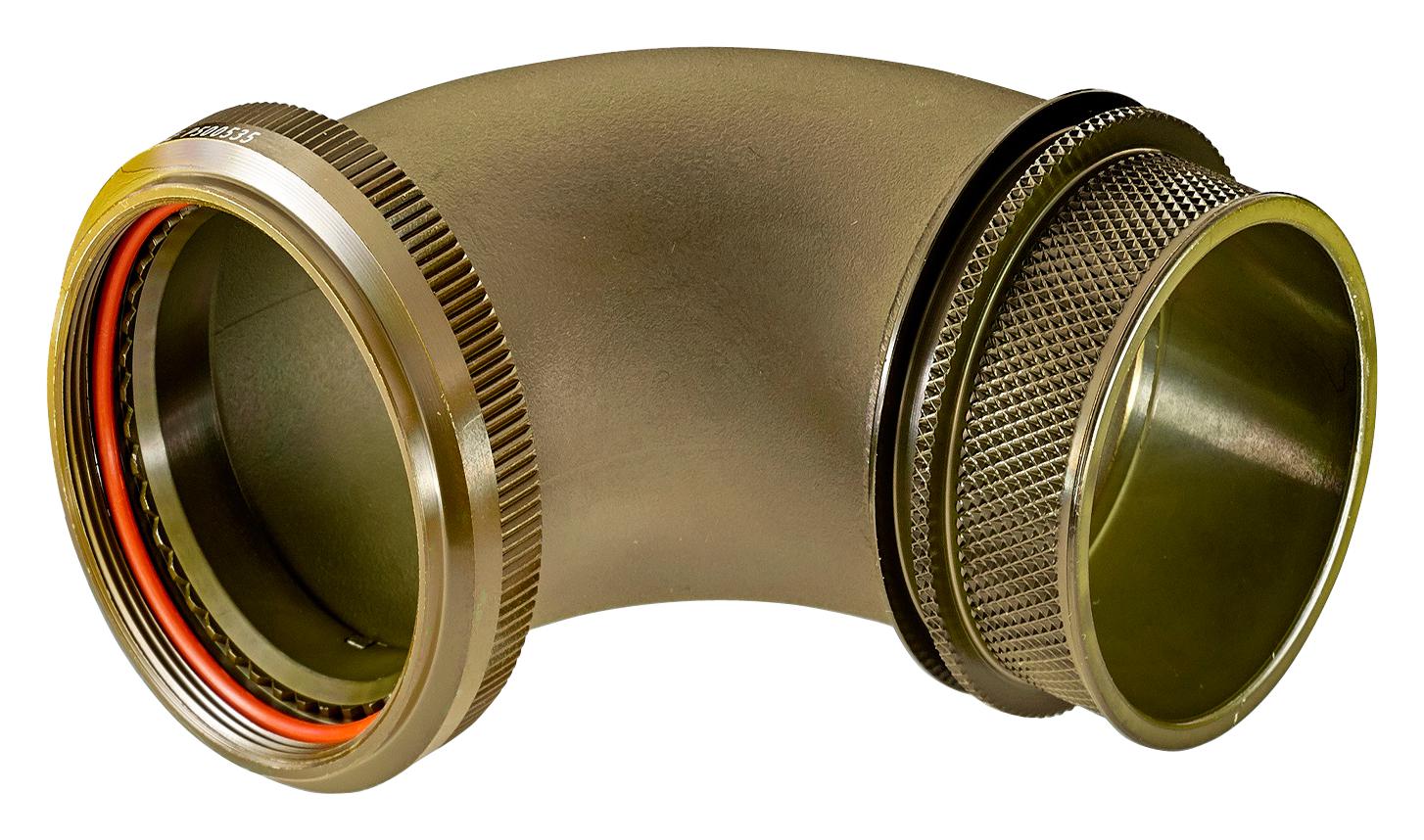

TE CONNECTIVITY BTH309041CSE Swept Elbow Backshell
The BTH3 series swept elbow backshell features a smooth internal bore and continuous bend radius, ensuring reliable cable connections for both optic and standard cables. Constructed from durable aluminum alloy with electroless nickel plating, it offers environmental sealing per AS85049 category 3B, providing effective EMI and RFI shielding. Designed in a band termination style, this backshell enables quick, easy termination with a spin coupling nut for straightforward repairs. It also provides strain relief and cable support, reducing bending or overflexing risks, making it suitable for defense, military, and aerospace environments. The swept elbow design facilitates streamlined installation and maintenance.
TE CONNECTIVITY BTH309041CSE Swept Elbow Backshell Specifications:
- Material: Aluminum alloy with electroless nickel plating
- Finish: Electroless nickel
- Design: Swept elbow with smooth internal bore and continuous bend radius
- Connection: Spin coupling nut for easy termination and repairs
- Sealing: Meets AS85049 category 3B environmental sealing
- Shielding: 360-degree EMI and RFI protection
- Application: Suitable for optic and standard cable terminations
- Features: Strain relief, cable support, quick installation, maintenance-friendly
- Operating Environment: Defense, military, aerospace industries
- Weight Savings: Up to 20% compared to traditional backshells
- Entry Sizes: M12 x 1.0, M15 x 1.0, M18 x 1.0, M22 x 1.0, M25 x 1.0, M28 x 1.0, M31 x 1.0, M34 x 1.0, M37 x 1.0
- Dimensions: Refer to drawing for detailed sizes in millimeters
- Certifications: Meets relevant military and aerospace standards
Buy the Buy TE Connectivity BTH3 Series BTH309041CSE Part Number BTH309041CSE Online
Purchase the TE Connectivity swept elbow backshell BTH309041CSE online today and enjoy quick, secure cable termination solutions. Designed from durable aluminum alloy with electroless nickel finish, it offers environmental sealing per AS85049 category 3B and provides comprehensive EMI and RFI shielding. Its smooth internal bore and continuous bend radius ensure reliable connections while reducing installation time. The backshell features a spin coupling nut for easy repairs, strain relief, and cable support, making it ideal for aerospace, defense, and military applications. Secure your project’s connection reliability now.
Order your TE Connectivity BTH3 series BTH309041CSE today and ensure reliable, streamlined cable terminations for your aerospace and military projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY BTH309041CSE?
You can click on the BUY or RFQ button to purchase BTH309041CSE from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part BTH309041CSE?
You can download the BTH309041CSE datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of BTH309041CSE?
TE CONNECTIVITY
