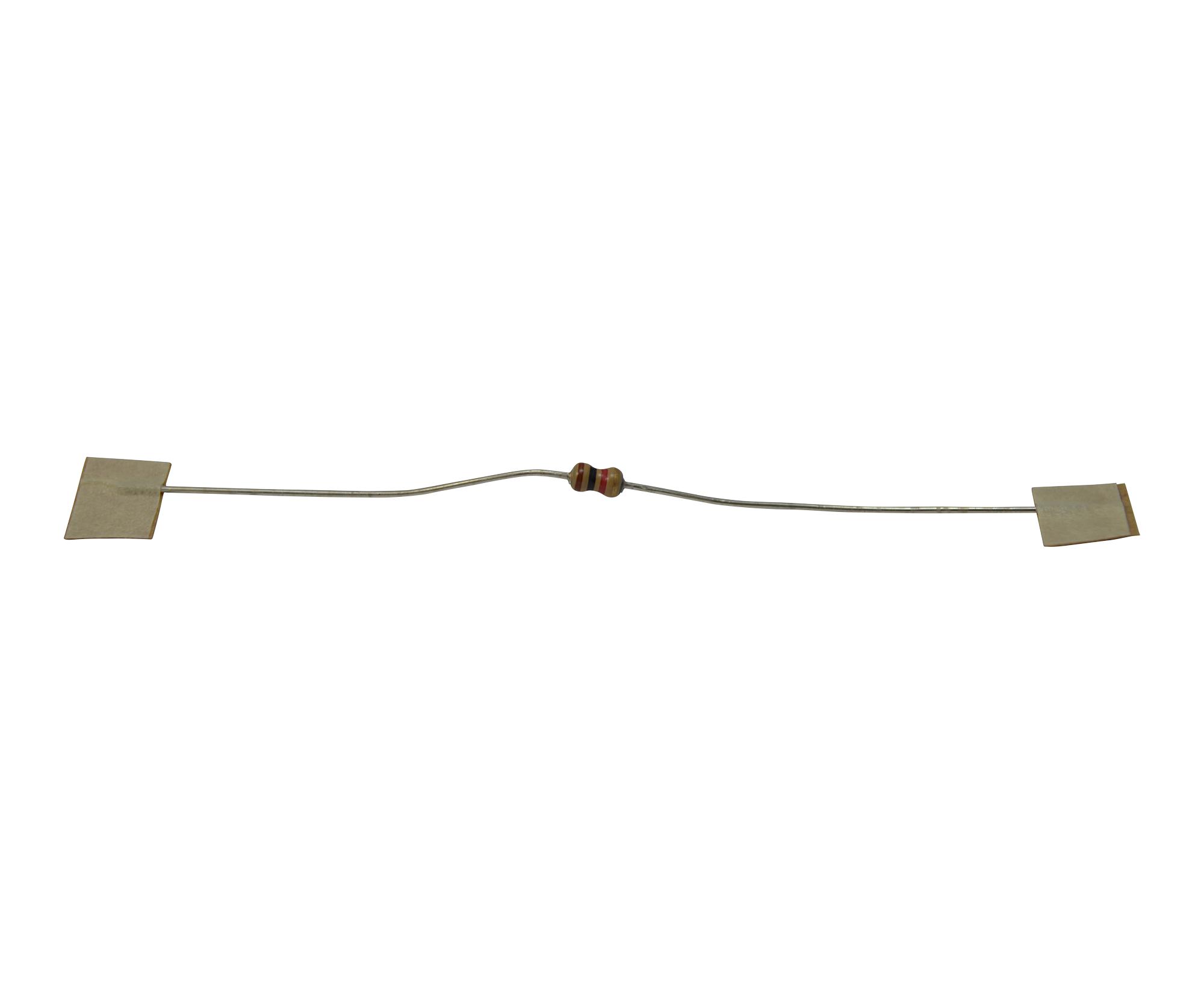

TE CONNECTIVITY CFR16J150K Carbon Film Resistor
TE Connectivity's CFR series carbon film resistors offer a cost-effective solution with high reliability, making them suitable for diverse applications such as audio equipment, communication systems, measurement devices, and computer circuits. These resistors feature a thin film of carbon deposited on a ceramic core, ensuring excellent power-to-size ratios. They are available in various power ratings, resistance ranges, and tolerance options to meet specific design requirements. The CFR series is designed for automatic insertion equipment and cutting/bending machines, simplifying manufacturing processes. Their robust construction and performance characteristics, evaluated according to IECQ specifications, ensure consistent and dependable operation in demanding environments.
TE CONNECTIVITY CFR16J150K Carbon Film Resistor Specifications:
- Rated Power @ 70 °C(W): 0.25, 0.33, 0.5, 1, 2
- Resistance Range (Ohms): 1R0 - 4M7, 1R0 - 10M
- Tolerance(%): 2, 5
- Code letter: G, J
- Temp. Coefficient (ppm/°C): ±350
- Selection Series: E24
- Limiting Element Voltage (V): 200, 250, 350, 500
- Max Overload Voltage1 (V): 400, 500, 700, 1000
- Max Intermittent Overload Voltage2 (V): 500, 700, 750
- Operating Temp. Range (°C): -55 to +155
- Climatic Category (°C): 55/155/56
- Dielectric Strength(V): 400, 500, 700, 1000
- Insulation Resistance (Mohms): 1000
- Max Overload Voltage: 2.5 times rated voltage up to specified voltage for 5 seconds
- Intermittent Overload Voltage: 4 times rated voltage up to specified voltage for 1 second ON and 25 seconds OFF
- Marking: Four color band code per IEC 62
- Mounting: Suitable for automatic insertion equipment
- Packaging: Taped in 'ammo' boxes, other styles available
