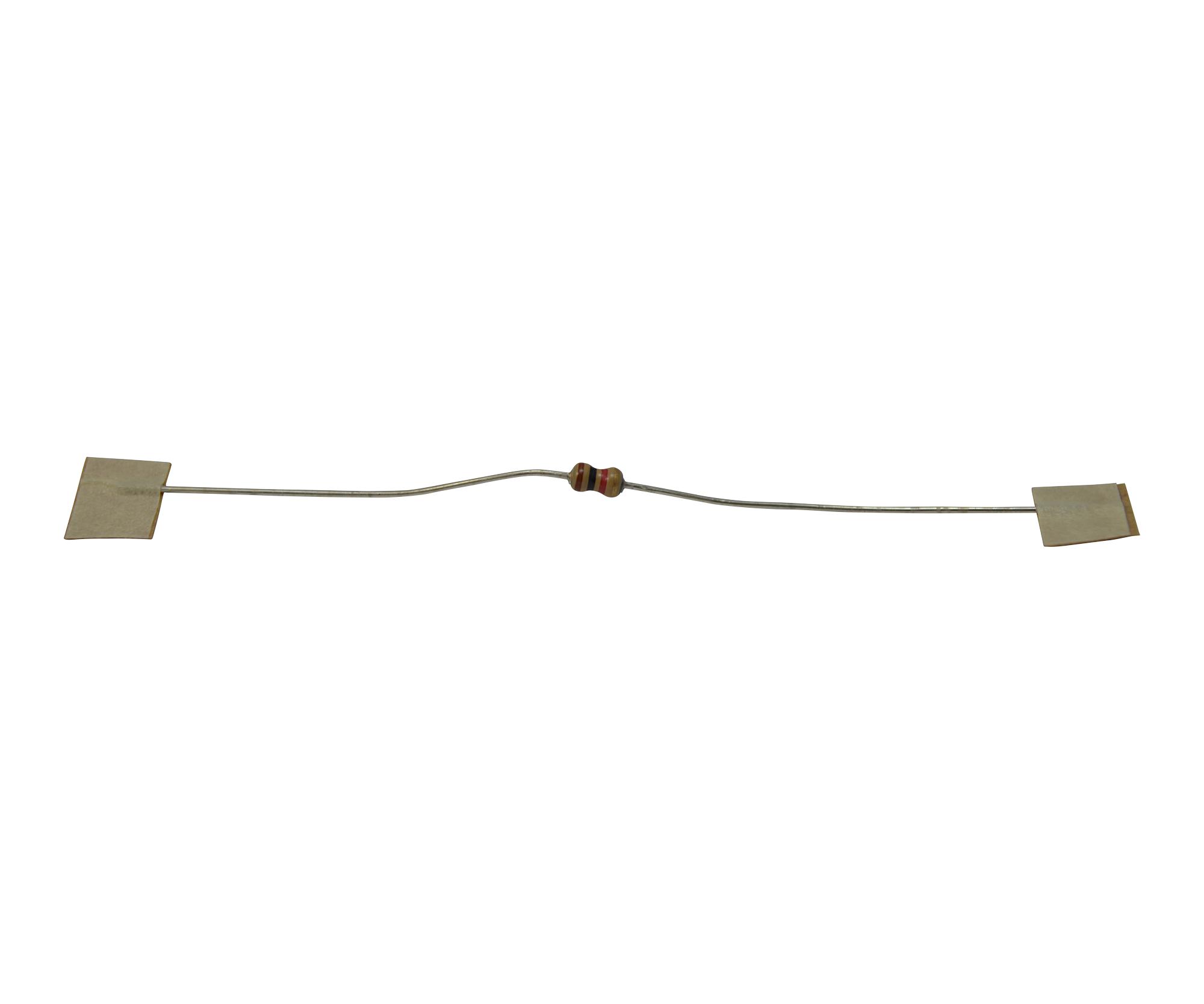

TE CONNECTIVITY CFR16J15R Carbon Film Resistor
The TE CONNECTIVITY CFR16J15R is a carbon film resistor designed for versatility and cost-effectiveness. Its ceramic core with a high alumina content provides excellent power-to-size ratios. The resistive element consists of a thin film of carbon deposited on a ceramic core, ensuring high thermal conductivity. These resistors are widely used in audio equipment, communication systems, measurement devices, and computer applications due to their reliable performance and affordability. They are available in various sizes and resistance ranges to meet diverse circuit requirements.
TE CONNECTIVITY CFR16J15R Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Code Letter: G, J
- Temp. Coefficient (ppm/°C): 0 to -450 / 0 to -700 / 0 to -1500
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Climatic Category (°C): 55/155/56
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
