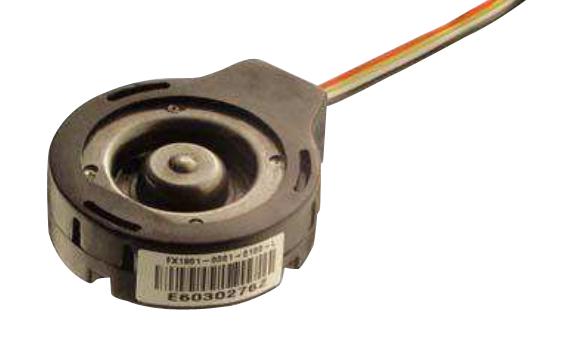

TE CONNECTIVITY FX190100010025L Compression Load Cell
The FX19 compression load cell offers high reliability and precision for OEM, medical, and consumer applications, with load ranges from 10 to 200 pounds. Featuring Microfused™ technology derived from aerospace applications, it employs micro-machined piezoresistive strain gages fused with high-temperature glass to stainless steel flexures. This design ensures excellent long-term span and zero stability, with an unlimited cycle life. Compact and robust, it is CE compliant, suitable for force sensing in medical devices, appliances, and industrial equipment, providing high over-range capabilities and stable, accurate measurements.
TE CONNECTIVITY FX190100010025L Compression Load Cell Specifications:
- Range: 10, 25, 50, 100, 200 lbf
- Full Scale Output Span: 16-36 mV/V depending on range
- Recommended Excitation: 5 V
- Zero Offset: 15 mV/V
- Non-Linearity: 1% Span
- Hysteresis: -0.80 to 0.80 %Span
- Thermal Zero Shift: -0.05 to 0.05 %Span/°C
- Temperature Range: 0 to 50°C operation, -40 to 85°C storage
- Maximum Overload: 250% FS
- Deflection at Rated Load: 0.05 mm
- Insulation Resistance: 50 MQ at 500 V AC
- Dimensions: Compact design with anti-rotation features
- CE Compliance: IEC61000-4-2, IEC61000-4-3, IEC55022 Class A
Buy the Buy TE Connectivity FX19 Compression Load Cell Part Number FX190100010025L Online
Order the TE Connectivity FX19 compression load cell online today and benefit from its high accuracy, durability, and compact design suitable for medical, industrial, and consumer applications. With microfused™ technology and a wide load range from 10 to 200 pounds, it provides stable performance, excellent zero and span stability, and an unlimited cycle life. Perfect for OEM, appliances, and force measurement in challenging environments, this CE-compliant load cell ensures precise force sensing, reliability, and long-lasting operation in various demanding settings.
Get TE Connectivity FX19 compression load cell today—designed for precise force sensing, excellent long-term stability, and high over-range capacity.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY FX190100010025L?
You can click on the BUY or RFQ button to purchase FX190100010025L from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part FX190100010025L?
You can download the FX190100010025L datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of FX190100010025L?
TE CONNECTIVITY
