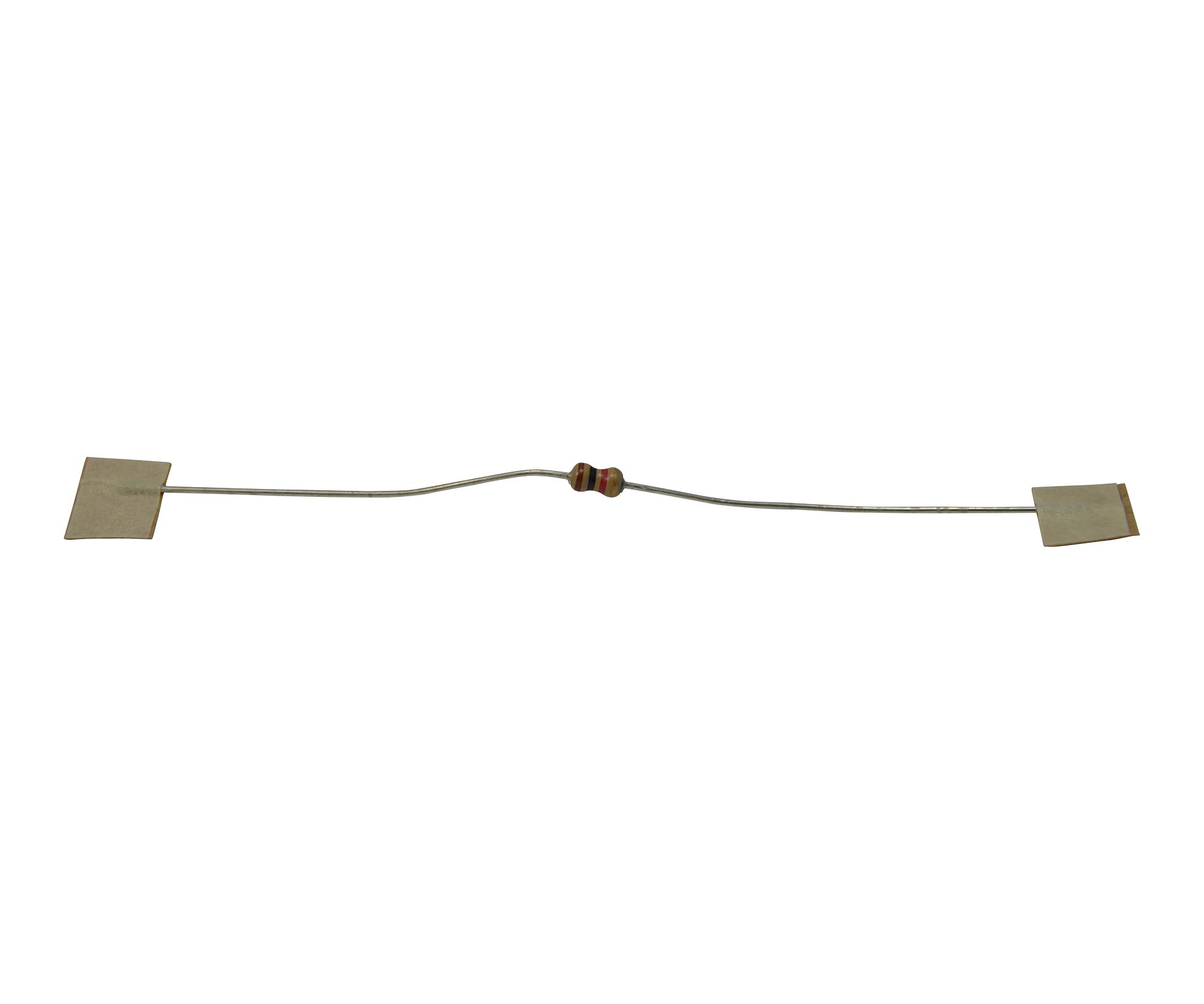

TE CONNECTIVITY CFR16J22R Carbon Film Resistor
TE Connectivity's CFR series carbon film resistors are designed for versatility and cost-effectiveness. These resistors feature a thin film of carbon deposited on a ceramic core, ensuring high thermal conductivity and power-to-size ratios. They are widely used in audio equipment, communication systems, measurement devices, and computer applications due to their reliability and broad resistance range. The CFR series is available in various sizes and power ratings to meet diverse circuit requirements, making them a dependable choice for numerous industrial and consumer applications.
TE CONNECTIVITY CFR16J22R Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Code letter: G, J
- Temp. Coefficient (ppm/°C): 0 to -450 / 0 to -700 / 0 to -1500
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Climatic Category (°C): 55/155/56
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
- Style (L* max.): 3.5 mm
- Style (D max.): 1.85 mm
- Style (d ±0.05): 0.45 mm
- Style (I): 28 ± 3
