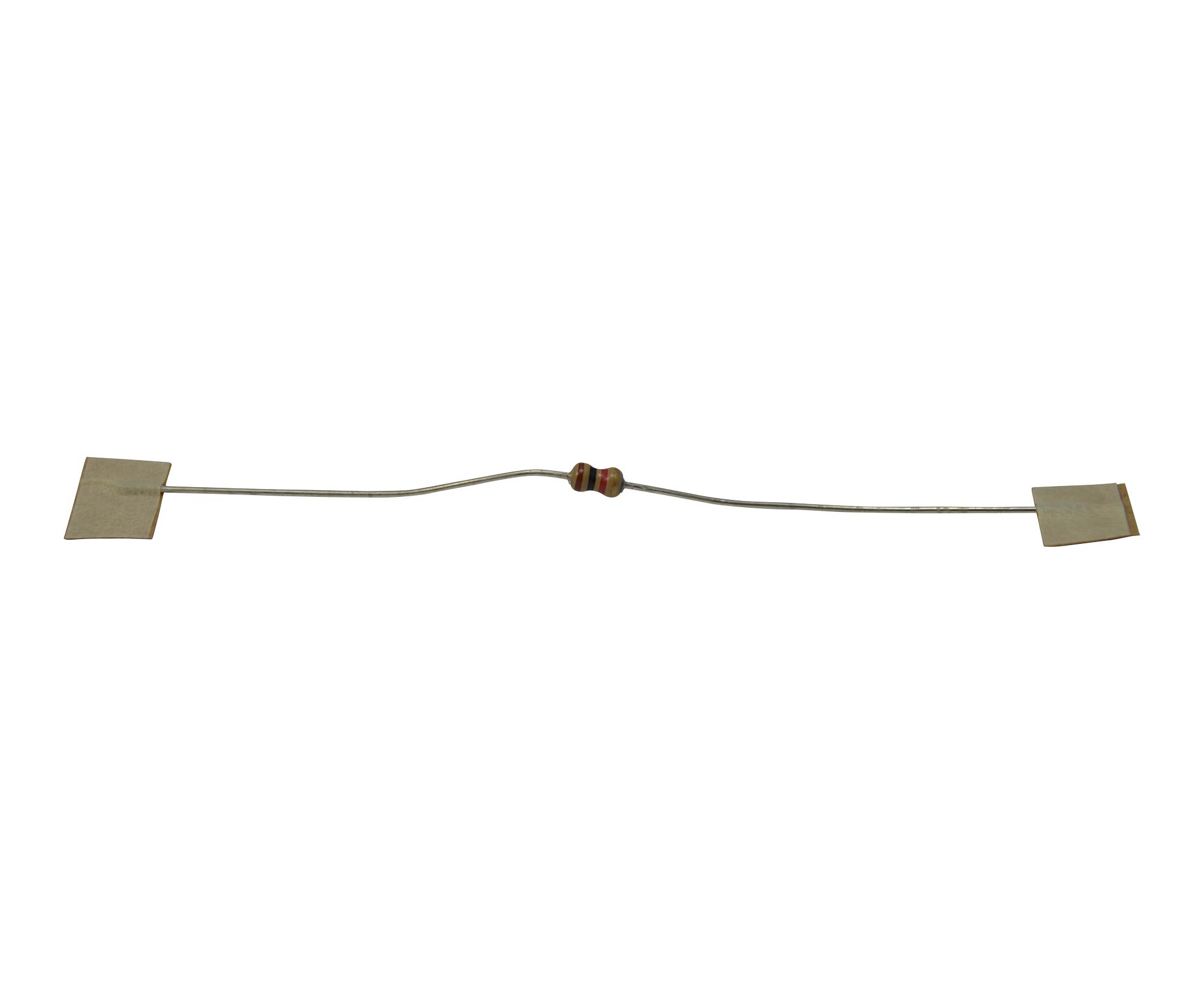

TE CONNECTIVITY CFR16J4R7 Carbon Film Resistor
TE Connectivity's CFR series carbon film resistors are designed for applications requiring a cost-effective and reliable solution. These resistors feature a thin film of carbon deposited on a high thermal conductivity ceramic core, ensuring efficient heat dissipation. They are suitable for use in audio circuits, communication systems, measurement equipment, and computer applications. The CFR series offers a range of power ratings and resistance values to meet diverse design requirements, and are marked with a four-color band code for easy identification.
TE CONNECTIVITY CFR16J4R7 Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Temp. Coefficient (ppm/°C): 0 to -450
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
- Length (L*) max (mm): 3.5
- Diameter (D) max (mm): 1.85
- d ±0.05 (mm): 0.45
- I (mm): 28 ± 3
Buy the CFR16J4R7 TE CONNECTIVITY Carbon Film Resistor | myMectronic
Purchase the TE CONNECTIVITY CFR16J4R7 Carbon Film Resistor securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY CFR16J4R7?
You can click on the BUY or RFQ button to purchase CFR16J4R7 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CFR16J4R7?
You can download the CFR16J4R7 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of CFR16J4R7?
TE CONNECTIVITY
