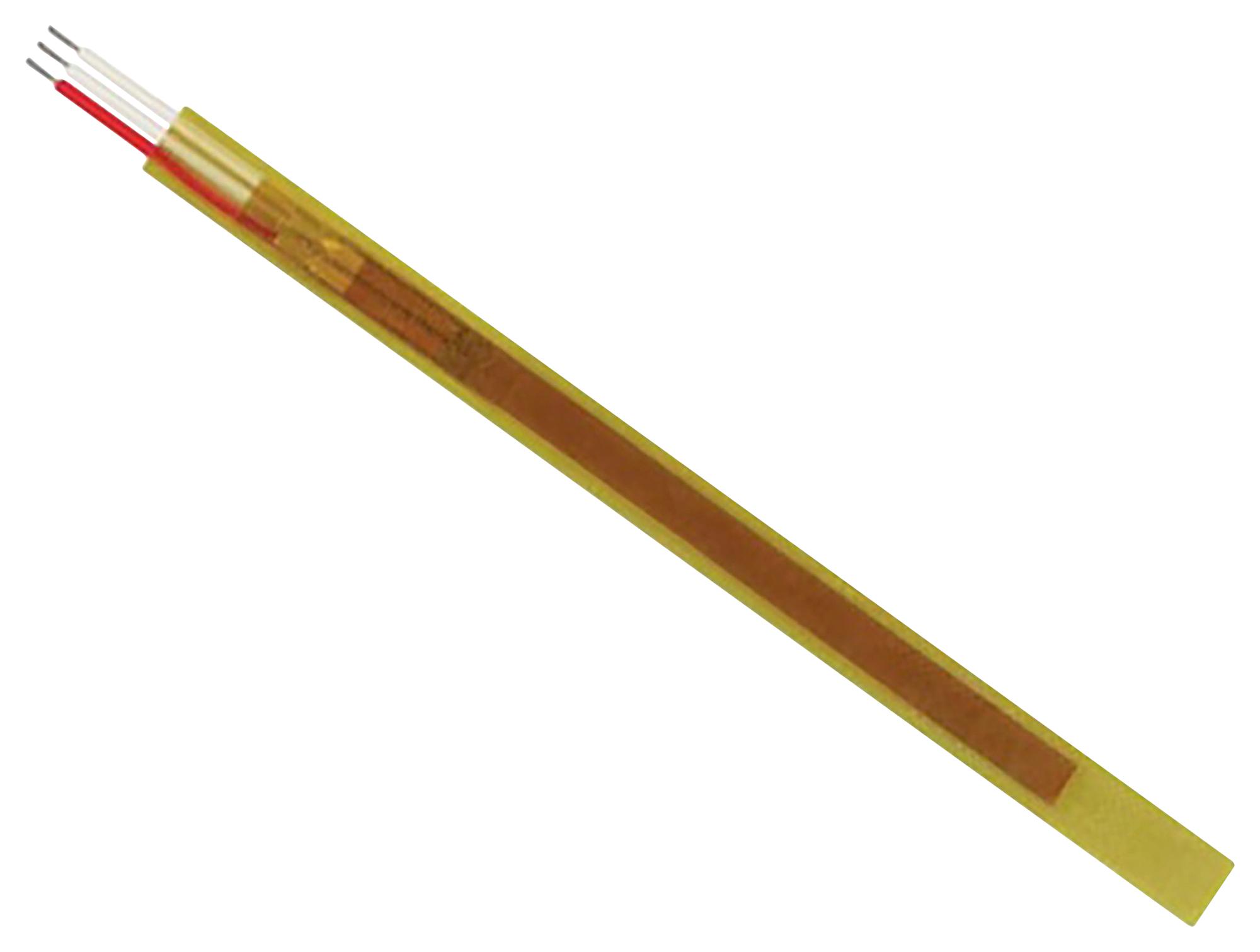

TE CONNECTIVITY R1802 Stator Temperature Sensor
The Stator RTD Temperature Sensor, designed for electric motors and generators, offers customizable configurations including dimensions, cable options, and material types for precise thermal monitoring. Built to meet ANSI C50.10-1990 standards, these sensors feature single or dual platinum, copper, or nickel elements for high accuracy and reliability. The epoxy glass laminated construction ensures robustness in industrial environments, with temperature limits up to 180°C. Available in various sizes and leadwire options, they provide consistent, false alarm-free temperature sensing between coils in motor stators.
TE CONNECTIVITY R1802 Stator Temperature Sensor Specifications:
- Dielectric Strength: Class F 3,000 volts RMS, Class H 2,000 volts RMS
- Temperature Limits: Class F 155°C, Class H 180°C
- Elements: Platinum, Copper, Nickel; Accuracy: ±0.5% at 0°C for platinum types
- Body Thickness: Standard .030" to .375", Custom available
- Body Widths: Standard .260" to .625", Custom options available
- Leadwires: Two, Three, or Four wire, stranded copper with PTFE insulation
- Dimensions: Custom lengths, standard sizes include body length, width, thickness
- Material: Epoxy glass laminated body, designed for industrial use
- Model Classification: 300F (Class F), 300H (Class H)
- Maximum Operating Temperature: up to 180°C (356°F)
Buy the AIG R1802 – Reliable Temperature Sensors for Industrial Applications
Order the AIG R1802 Stator Temperature Sensor online today to ensure accurate, reliable temperature measurement in electric motors and generators. With customizable options including various sizes, materials, and cable configurations, these sensors deliver high accuracy and durability in demanding industrial environments. Built to meet standards and withstand high temperatures up to 180°C, this sensor provides consistent thermal monitoring, preventing false alarms and enhancing equipment safety. Shop online now for quick delivery and expert support tailored to your specific application needs.
Buy AIG R1802 temperature sensor now and experience unmatched reliability and performance in motor and generator thermal monitoring.
