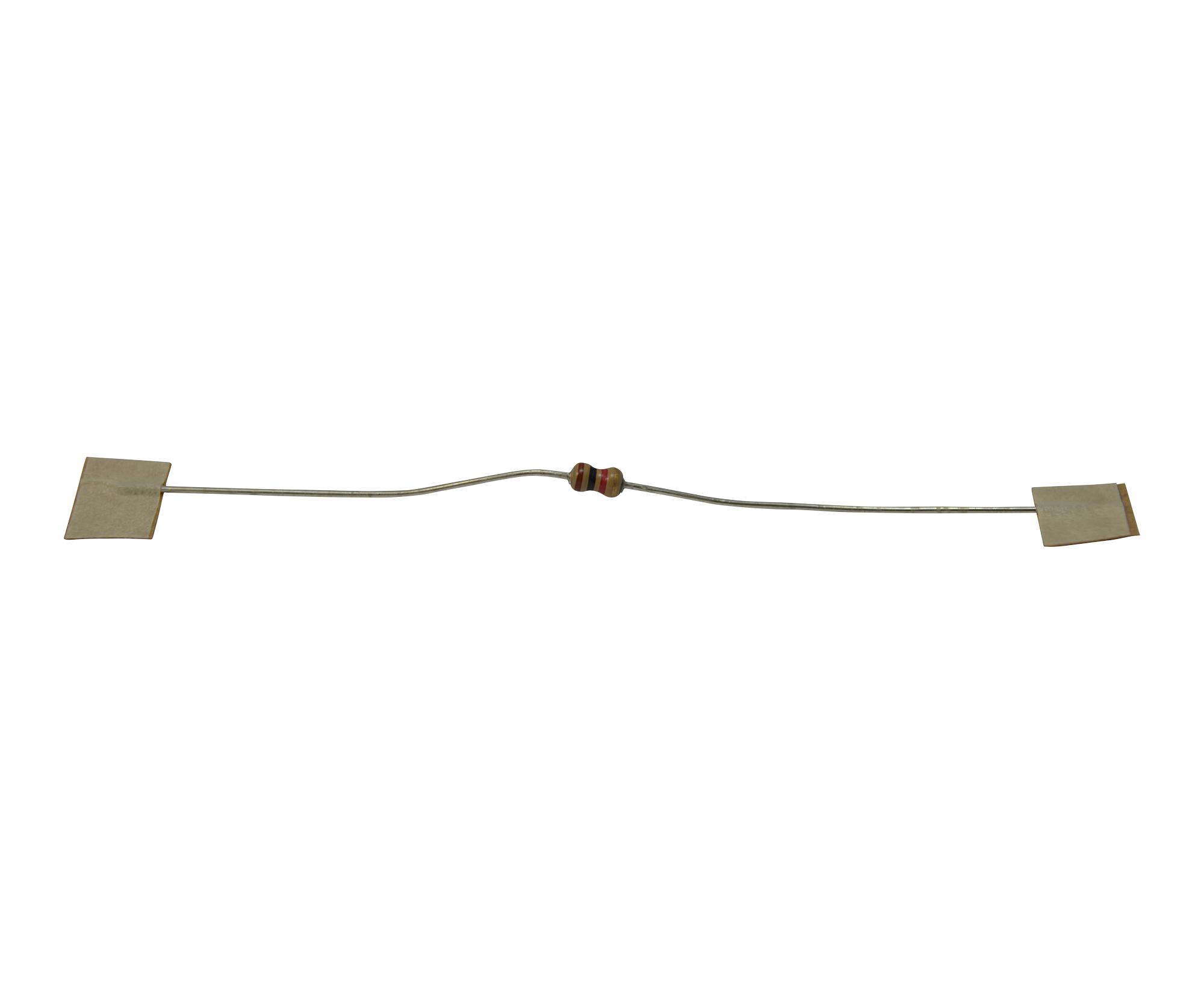

TE CONNECTIVITY CFR16J5K6 Carbon Film Resistor
The TE Connectivity CFR16J5K6 is a carbon film resistor designed for versatile applications. Its construction utilizes a thin film of carbon deposited on a ceramic core, ensuring high thermal conductivity and power-to-size ratios. These resistors are known for their reliability and cost-effectiveness, making them ideal for use in audio equipment, communication systems, measurement devices, and computer circuits. The CFR series offers a range of power ratings and resistance values to meet diverse design requirements. They are suitable for automatic insertion equipment and cutting/bending machines, ensuring efficient manufacturing processes.
TE CONNECTIVITY CFR16J5K6 Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Code letter: G, J
- Temp. Coefficient (ppm/°C): 0 to -450 / 0 to -700 / 0 to -1500
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Climatic Category (°C): 55/155/56
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
- Max Overload Voltage: 2.5 times rated voltage up to specified voltage for 5 seconds
- Max Intermittent Overload Voltage: 4 times rated voltage up to specified voltage for 1 second ON and 25 seconds OFF
- Marking: Four color band code (IEC 62)
