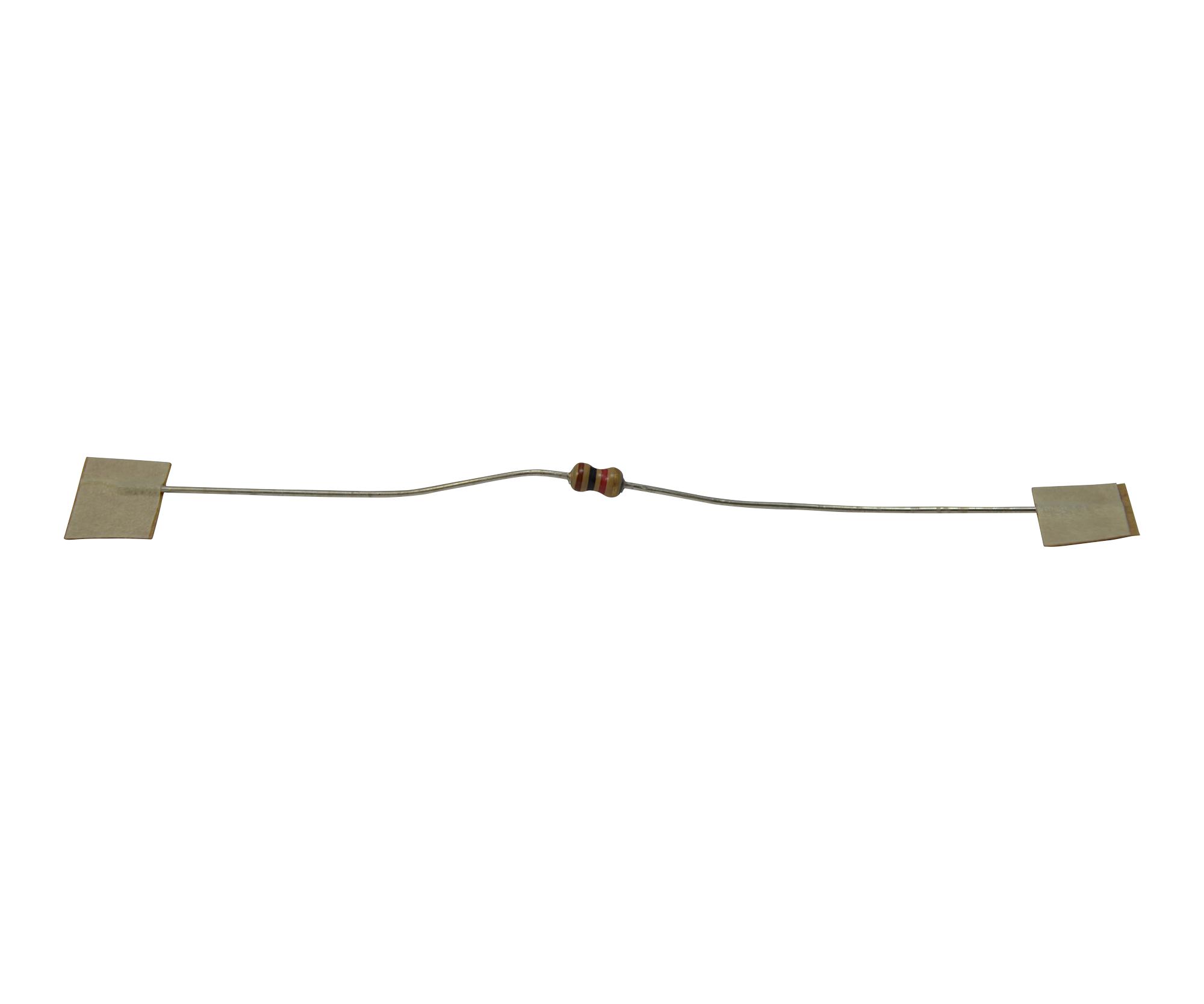

TE CONNECTIVITY CFR16J8K2 Carbon Film Resistor
The TE Connectivity CFR16J8K2 is a carbon film resistor designed for versatile applications. Its construction features a thin film of carbon deposited on a high thermal conductivity ceramic core, ensuring efficient heat dissipation. The resistor's low cost and high reliability make it ideal for use in audio, communications, measurement, and computer circuits. Available in various power ratings and resistance ranges, the CFR series provides a robust and cost-effective solution for diverse electronic designs. It is suitable for automatic insertion equipment and cutting/bending machines.
TE CONNECTIVITY CFR16J8K2 Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Temp. Coefficient (ppm/°C): 0 to -450
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
- Length (L*) max (mm): 3.5
- Maximum Dimension D (mm): 1.85
- d ±0.05 (mm): 0.45
- I (mm): 28 ± 3
- Marking: Four color band code
