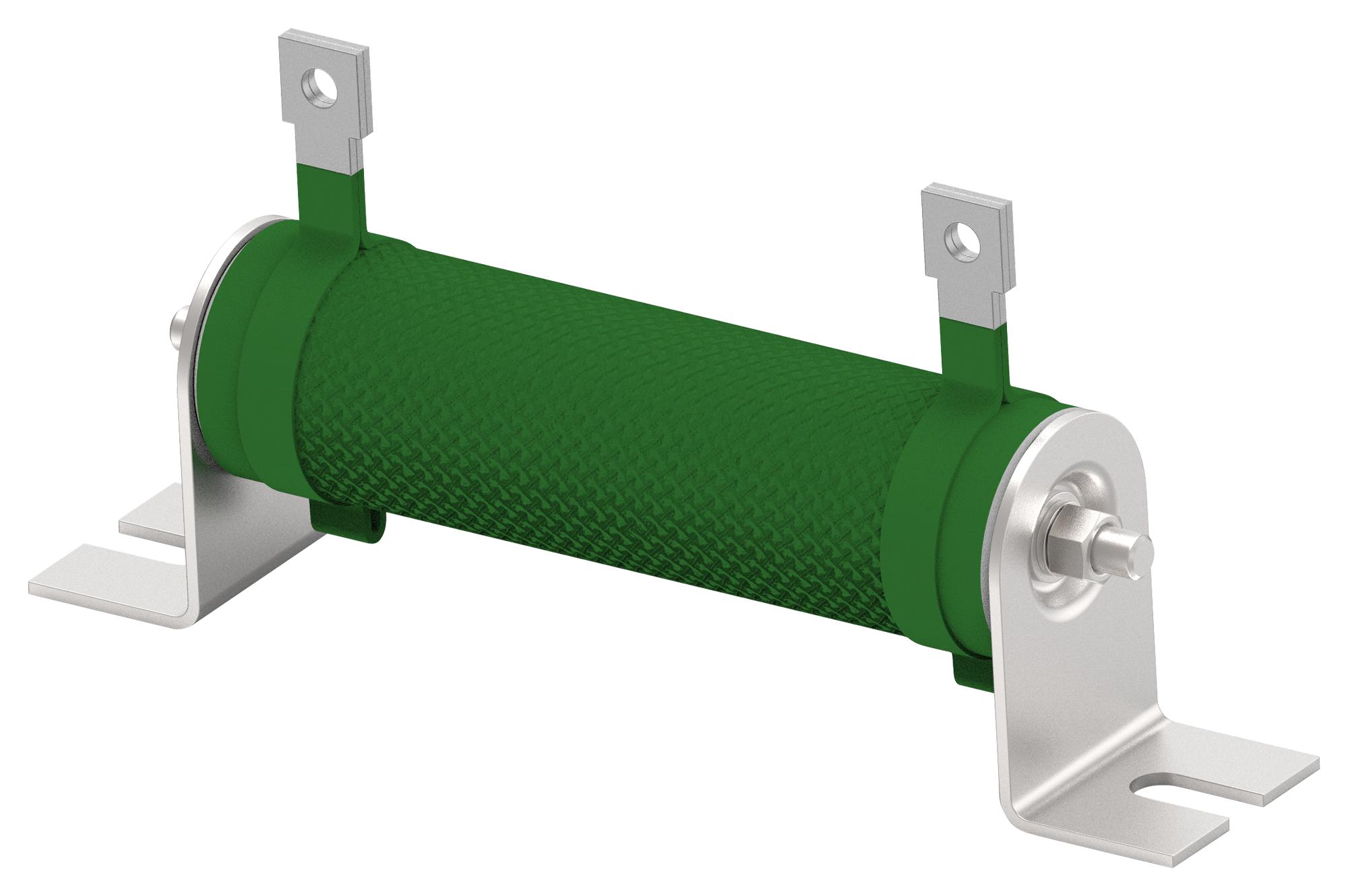

TE CONNECTIVITY TE50BR12J High Power Wire-Wound Resistor
The TE series high power wire-wound resistors feature a flameproof coated tubular ceramic core and utilize both standard and edge-wound (corrugated) winding methods to enhance power handling capabilities. Designed for heavy-duty machinery, electrical equipment, and motor control applications, they offer stability, reliability, and safety. These resistors operate from -55°C to +155°C, can handle short-term overloads at three times their rated power for five seconds, and have a dielectric strength of 2500VAC. They include a mounting bracket suitable for large electrical machinery and dynamic load applications.
TE CONNECTIVITY TE50BR12J High Power Wire-Wound Resistor Specifications:
- Resistor Type: Power Resistor
- Element Type: Wire Wound
- Dimensions: 146 x 28 x 61 mm
- Number of Terminations: 2
- Packaging Method: Box
- Passive Component Tolerance: 5%
- Resistance Range: Up to 1kΩ
- Resistance Value: 12Ω
- Power Rating: 50 W
- Mounting Style: Bracket
- Temperature Coefficient: +400 ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Dielectric Strength: ≥2500 VAC
- Insulation Resistance: ≥20 MΩ at 500VDC
- Flameproof Coating: UL94V-0
- Winding Type: Standard and Edge-Wound (Corrugated)
Buy the Buy CGS TE Power Resistor Part Number TE50BR12J Online
Purchase the CGS TE high power wire-wound resistor TE50BR12J online for reliable operation in heavy-duty machinery, motor controls, and load testing. Featuring a flameproof coating, operating from -55°C to +155°C, and capable of handling overloads at three times its rated power for five seconds, this resistor offers exceptional stability and safety. Its robust ceramic core, dielectric strength of 2500VAC, and corrosion-resistant construction make it ideal for demanding industrial applications. Buy now for dependable performance and installation convenience with a standard mounting bracket.
Get CGS TE Power Resistor TE50BR12J today—built for high power applications, stability, and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE50BR12J?
You can click on the BUY or RFQ button to purchase TE50BR12J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE50BR12J?
You can download the TE50BR12J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE50BR12J?
TE CONNECTIVITY
