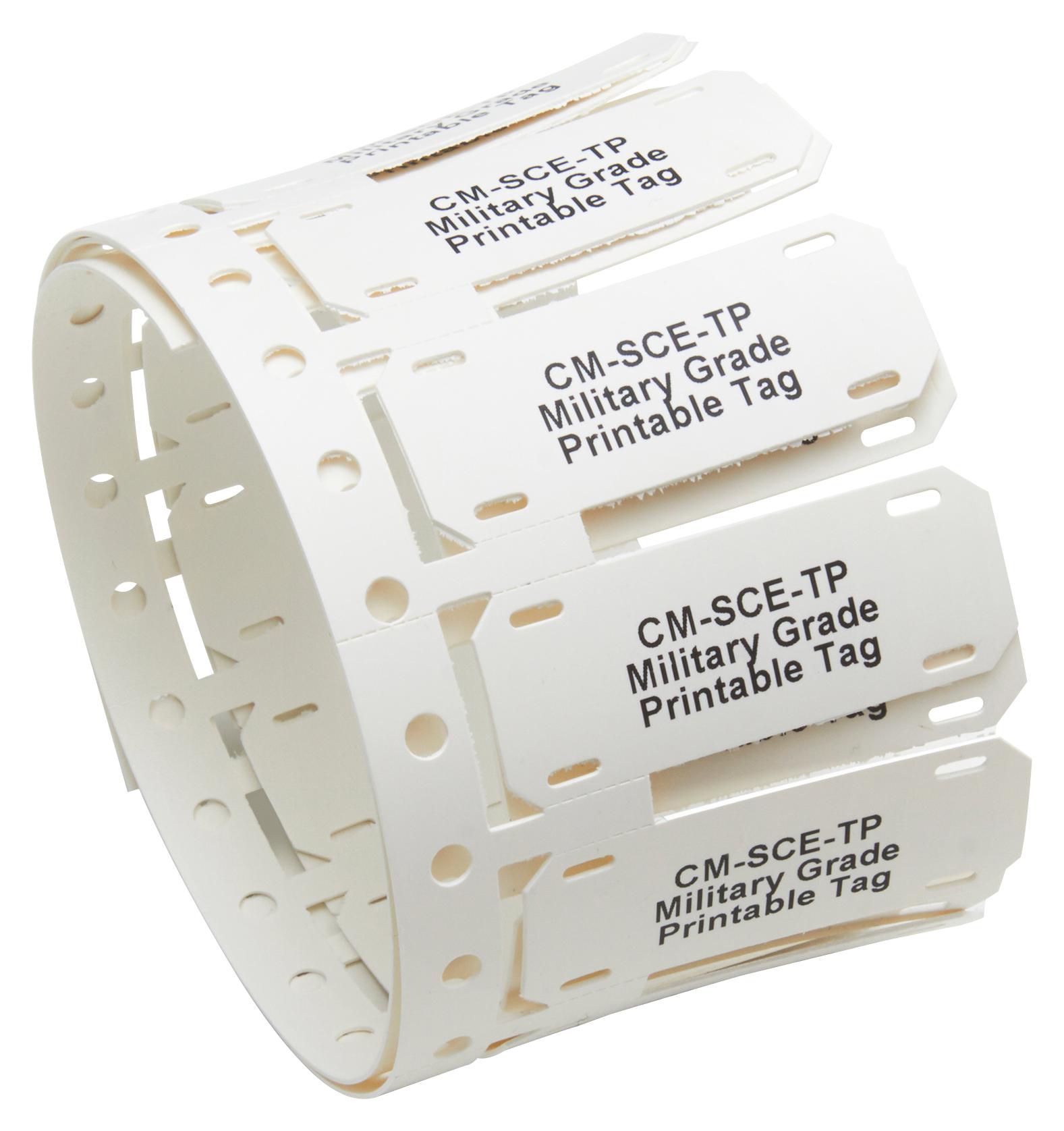

TE CONNECTIVITY CMSCE144H9 Cable Marker Tag
Non-adhesive cable marker tag or plate featuring four cable tie holes for secure fastening. It is printable using thermal transfer technology, making it ideal for identifying large cable and wire bundles in harsh and aggressive environments. Made from a radiation cross-linked, flame-retardant polymer with excellent flame resistance, indicated by an oxygen index of 35%. The material is resistant to common industrial and military-grade fluids as specified by RW-2513 standards. It operates effectively within a temperature range of -55°C to 135°C. The product complies with TE Connectivity Standard RW-2513, holds UL Certification MH26328 Group PG1S2, and meets the EN45545-2 Hazard Classification 3 requirements for mass transit applications. Suitable for use in military, railway, aerospace, marine, transportation, and industrial environments.
TE CONNECTIVITY CMSCE144H9 Cable Marker Tag Specifications:
- Material: Radiation cross-linked, flame-retardant polymer
- Flame Resistance: Oxygen Index 35%
- Temperature Range: -55°C to 135°C
- Cable Tie Holes: Four
- Print Technology: Thermal transfer
- Compliance: TE RW-2513, UL MH26328, EN45545-2 Hazard Classification 3
- Application: Identification in aggressive environments, mass transit, military, aerospace
- Resistance: Industrial and military-grade fluids as per RW-2513 standards
- Dimensions: Markable height 6.4 mm (1/4 inch), width 50.8 mm (2 inches)
Buy the TE Connectivity Series Cable Marker Tag: CMSCE144H9
Order the TE Connectivity Cable Marker Tag online today and ensure reliable cable identification in demanding environments. Made from flame-retardant, radiation cross-linked polymer, this non-adhesive label features four cable tie holes for secure fastening. With a temperature range of -55°C to 135°C, it resists industrial and military fluids, making it ideal for mass transit, aerospace, marine, and military applications. Compatible with thermal transfer printing technology and supported by leading software like WINTOTAL and PrintEasy, it guarantees clear, durable markings for large cable bundles, ensuring easy installation and maintenance.
Buy TE Connectivity CMSCE144H9 now and experience durable, high-performance cable identification in harsh industrial and military environments.
