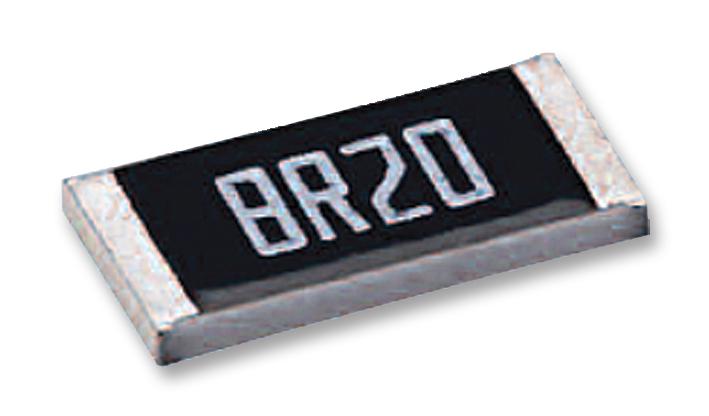

TE CONNECTIVITY CPF0603B226KE1 Precision Thin Film Resistor
The CPF series is a high stability, thin film precision resistor range suitable for applications demanding close accuracy and stability, including communications, industrial controls, instrumentation, medical devices, and electrical systems. Featuring TCRs as low as 15ppm/°C and tolerances up to 0.05%, these resistors are available in a wide range of case sizes from 0201 to 2512, with electroplated matte Sn finish. They provide reliable performance under various power dissipations, operating temperatures from -55°C to +155°C, and are designed to facilitate precise placement and consistency in electronic assemblies.
TE CONNECTIVITY CPF0603B226KE1 Precision Thin Film Resistor Specifications:
- Chip Sizes: 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Rated Power @70°C: from 0.03125W (0201) to 0.5W (2512)
- Resistance Range: 0Ω to 3GΩ depending on size and series
- Tolerance: 0.05%, 1%, or 2%
- Temperature Coefficient (ppm/°C): as low as 15 or 25
- Operating Voltage: 15V to 150Vmax
- Overload Voltage: 30V to 300V
- Operating Temp Range: -55°C to +155°C
- Insulation Resistance: >1000MΩ
- Stability: 0.5% or better
- Construction: Alumina substrate with NiCr resistor layer, Ag electrodes, epoxy overcoat, Sn finish
- Dimensions: varies per size, e.g., 0201: 0.58×0.29×0.23 mm, 2512: 6.30×0.55×0.30 mm
- Environmental: Meets MIL-STD-202 for various stress tests including temperature cycling, moisture resistance, and soldering.
- Marking: Resistor values in IEC 4-digit code for larger sizes, 3-digit for 0603
- Packaging: Reels, paper tape, or embossed plastic tape according to size and quantity
- Reflow & Wave Solder Profiles: Max temp 260°C, cycle limits specified, with controlled ramp and cooling rates.
Buy the TE Series CPF: Precision Thin Film Resistors 0603B226KE1
Enhance your electronic assemblies with the high accuracy and stability of the TE Series CPF precision thin film resistors. Available in multiple sizes including 0603, 1206, and 2512, these resistors offer low TCR down to 15ppm/°C, tolerances as tight as 0.05%, and operate efficiently from -55°C to +155°C. Perfect for demanding applications like instrumentation, medical equipment, and industrial controls, they provide reliable performance under various environmental stresses. Purchase online today to ensure premium quality and precision in your electronic components collection.
Buy TE Series CPF precision thin film resistor in 0603B226KE1 now and ensure highly accurate, temperature stable performance in all your electronic projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY CPF0603B226KE1?
You can click on the BUY or RFQ button to purchase CPF0603B226KE1 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part CPF0603B226KE1?
You can download the CPF0603B226KE1 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of CPF0603B226KE1?
TE CONNECTIVITY
