TE CONNECTIVITY 223492010 zSFP+ Interconnect
The zSFP+ pluggable I/O interconnect is a high-speed, versatile connector supporting data rates up to 28 Gbps NRZ and 56 Gbps PAM-4, designed for telecommunications, data centers, and networking applications. It offers backward compatibility with SFP+ connectors, ensuring easy upgrades to higher speeds without redesign. Features include a surface-mount design for PCB ease, superior signal integrity, EMI containment options, and flexible port configurations. Operating within -40°C to +85°C, it combines mechanical durability with high-performance copper contacts, making it ideal for optical transport, switch/router, and server applications.
TE CONNECTIVITY 223492010 zSFP+ Interconnect Specifications:
- Data Rates: Up to 28 Gbps NRZ, 56 Gbps PAM-4, 10 Gbps Ethernet, 16 Gbps Fibre Channel
- Voltage (max.): 120V AC
- Current (max.): 0.5A
- Operating Temperature: -40°C to +85°C
- Housing Material: High-temperature thermoplastic, UL 94V-0
- Contact Material: Copper alloy with plating options of gold, nickel, palladium, or tin
- Physical Dimensions: Standard surface-mount connector, port configurations from 1x1 to 2x12, cage dimensions compatible with SFP+
- Mechanical Durability: Minimum 250 cycles
- Ingress Protection: Elastomeric gasket and EMI spring options for EMI containment
- Insertion/Removal Force: 34N maximum for insertion, 11.5N minimum for removal

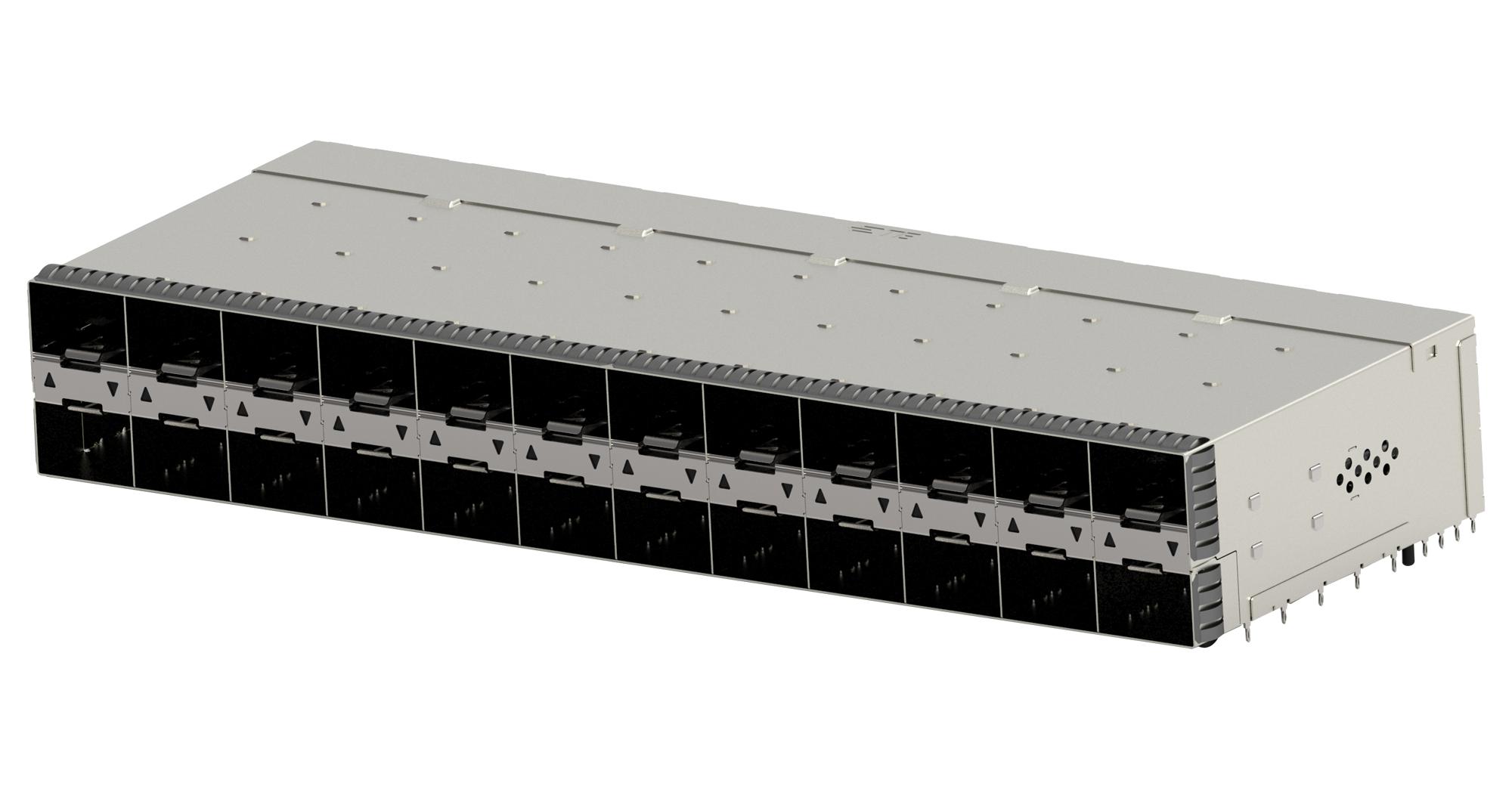

Buy the Buy TE Connectivity zSFP+ Pluggable I/O Interconnect Part Number 223492010 Online
Purchase TE Connectivity zSFP+ pluggable I/O interconnect online today for cutting-edge high-speed data transfer up to 56 Gbps. Designed for telecom, data centers, and networking, its backward compatibility and robust construction make it ideal for future-proof upgrades. Features include easy PCB mounting, superior signal integrity, EMI shielding options, and flexible port configurations. Operating reliably between -40°C and +85°C, it is suitable for optical transport, switches, routers, and server applications. Ensure your systems operate at peak performance with this reliable, high-speed interconnect.
Buy TE Connectivity zSFP+ pluggable I/O interconnect now and ensure high-speed, reliable data transfer for telecom, data center, and networking solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223492010?
You can click on the BUY or RFQ button to purchase 223492010 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223492010?
You can download the 223492010 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223492010?
TE CONNECTIVITY
