TE CONNECTIVITY CRGCQ0805F56K Thick Film Chip Resistor
The Thick Film Chip Resistor from the CRGCQ Series is an AEC-Q200 compliant surface-mount device designed for high reliability in automotive and industrial applications. Constructed with a high purity alumina substrate, resistive element, and Ni/Cr inner terminations, it features a protective coating and Sn outer termination. Available in seven package sizes, it offers power ratings from 0.0625W to 1W, resistance ranges from 10Ω to 10MΩ, and is suitable for wave and reflow soldering. Its robust electrical performance includes a temperature range of -55°C to +155°C, high dielectric withstand voltage, and excellent moisture resistance, ensuring durability in demanding environments.
TE CONNECTIVITY CRGCQ0805F56K Thick Film Chip Resistor Specifications:
- Construction: High purity alumina substrate, protective coating, resistive element, Ni/Cr inner terminations, Ni barrier, Sn outer termination
- Power Rating @ 70°C: 0.0625W (CRGCQ0402), 0.1W (CRGCQ0603), 0.125W (CRGCQ0805), 0.25W (CRGCQ1206), 0.5W (CRGCQ1210), 0.75W (CRGCQ2010), 1W (CRGCQ2512)
- Resistance Range: 10Ω to 10MΩ, standard series E24 and E96
- Resistance Tolerance: Typical ±1%, with markings including 3-digit codes for E24, 4-digit for E96 series
- Dimensions: CRGCQ0402 - L 1.00±0.10 mm, W 0.50±0.05 mm; CRGCQ0603 - L 1.60±0.10 mm, W 0.80±0.10 mm; CRGCQ0805 - L 2.00±0.15 mm, W 1.25±0.15 mm; CRGCQ1206 - L 3.10±0.15 mm, W 1.55±0.15 mm; CRGCQ1210 - L 3.10±0.10 mm, W 2.60±0.20 mm; CRGCQ2010 - L 5.00±0.10 mm, W 2.50±0.20 mm; CRGCQ2512 - L 6.35±0.10 mm, W 3.20±0.20 mm
- Environmental: Operating temperature from -55°C to +155°C, dielectric withstand voltage up to 500V, high resistance to moisture, humidity, and soldering heat, compliant with RoHS directives
- Soldering Techniques: Suitable for wave and reflow soldering, pre-heat at 150-180°C (max 2 cycles), peak temperatures 235-260°C, adhering to recommended profiles
- Marking: E24 series 0603–2512—3 digits indicating significant figures and zeros; E96 series 0805–2512—4 digits with significant figures and zeros

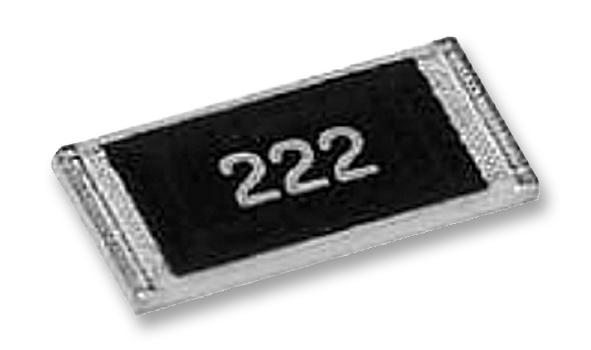

Buy the Buy TE Connectivity Thick Film Chip Resistor Part Number CRGCQ0805F56K Online
