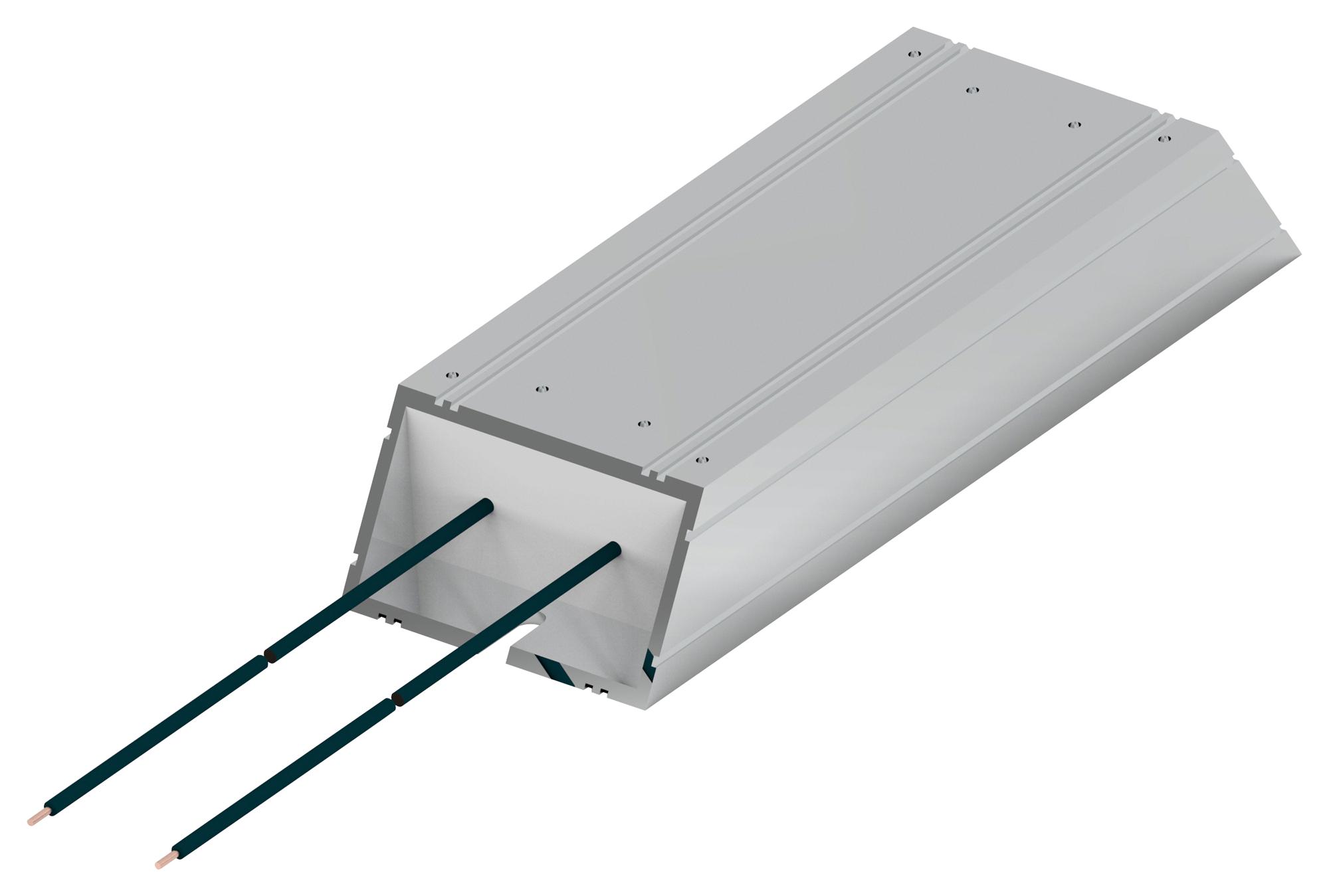

TE CONNECTIVITY HCH165J220RJ Aluminium Braking Resistor
The aluminium housed braking resistor series is designed for high-power overload capabilities, making it ideal for braking applications. These PTFE insulated wire wound resistors feature IP54 ingress protection, anodized aluminium profiles, and flying leads for flexible connections. With power ratings ranging from 200W to 500W and maximum temperatures up to 375°C, they support duty cycles suitable for drive systems. Certified for consistent performance, they resist dust, moisture, and thermal stress, ensuring reliable operation in industrial environments.
TE CONNECTIVITY HCH165J220RJ Aluminium Braking Resistor Specifications:
- Power Rating: 200W to 500W at 40°C
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680Ω to 2200Ω (varies by model)
- Insulation Resistance: >100MO at 1000VDC
- Dielectric Strength: 3500VAC for 1 minute
- Ingress Protection: IP54
- Resistor Element: Wire wound, PTFE insulated
- Resistor Body: Anodized extruded aluminium profile
- Flying Leads: 300mm, PTFE insulated, rated at 1000V, 200°C
- Dimensions: L: 165mm to 335mm, L1: 146mm to 316mm depending on model
- Rated Continuous Working Voltage: up to 1100V
- Tolerance: ±5%, ±10%
Buy the Buy TE Connectivity Aluminium Housed Braking Resistor Part Number HCH165J220RJ Online
Purchase the TE Connectivity aluminium housed braking resistor HCH165J220RJ online today and ensure reliable performance for your industrial drive and braking systems. Designed with high power overload capacity, IP54 protection, PTFE insulation, and flexible flying leads, this resistor offers exceptional durability. With a power rating of 220W, maximum temperature of 320°C, and resistance values between 680Ω and 2200Ω, it is ideal for demanding industrial environments. Trust TE for quality components that enhance safety, efficiency, and operational longevity.
Get TE Connectivity HCH165J220RJ today—built for precision and long-lasting durability in braking applications with high power overload capacity.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH165J220RJ?
You can click on the BUY or RFQ button to purchase HCH165J220RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH165J220RJ?
You can download the HCH165J220RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH165J220RJ?
TE CONNECTIVITY
