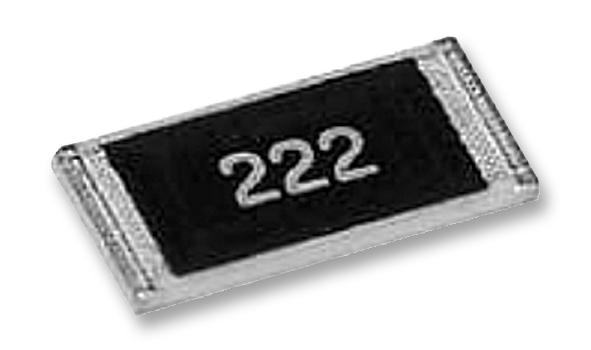

TE CONNECTIVITY CRGH0805J15R High Power Thick Film Resistor
The CRGH series high power thick film chip resistors are designed for high power applications, offering reliable performance across a resistance range of 1.0Ω to 10MΩ. These lead-free components feature a robust alumina substrate, thick film NiCr conductor, and precise resistance tolerances of 1% and 5%. Suitable for continuous operation at ambient temperatures up to 70°C, their construction ensures excellent stability, low temperature coefficient, and high dielectric withstanding voltage. Ideal for power circuits, these resistors are available in various sizes including 0603, 0805, 1206, 2010, and 2512, with specific ratings and dimensions catered for demanding industrial environments.
TE CONNECTIVITY CRGH0805J15R High Power Thick Film Resistor Specifications:
- Case Sizes: 0603, 0805, 1206, 2010, 2512
- Power Ratings: 0.20W (0603), 0.33W (0805), 0.50W (1206), 1W (2010), 2W (2512)
- Resistance Range: 1Ω to 10MΩ
- Tolerance: ±1%, ±5%
- Max Working Voltage: 50V (0603), 150V (0805), 200V (1206), 200V (2010), 250V (2512)
- Dielectric Withstanding Voltage: 300V (0603), 500V (0805, 1206, 2010, 2512)
- Ambient Temperature: up to 70°C
- Construction: Alumina substrate, NiCr conductor, thick film resistive element
- Dimensions: For 0603: L 1.6mm, W 0.8mm, H 0.45mm; for 0805: L 2.0mm, W 1.25mm, H 0.55mm; for 1206: L 3.1mm, W 1.5mm, H 0.55mm; for 2010: L 5.0mm, W 2.5mm, H 0.60mm; for 2512: L 6.3mm, W 4.0mm, H 0.60mm.
- Temperature Coefficient: < 200PPM/°C
- Resistance Marking: Significant figures with zeros or decimal notation depending on size
- Construction materials are RoHS compliant and lead-free.
