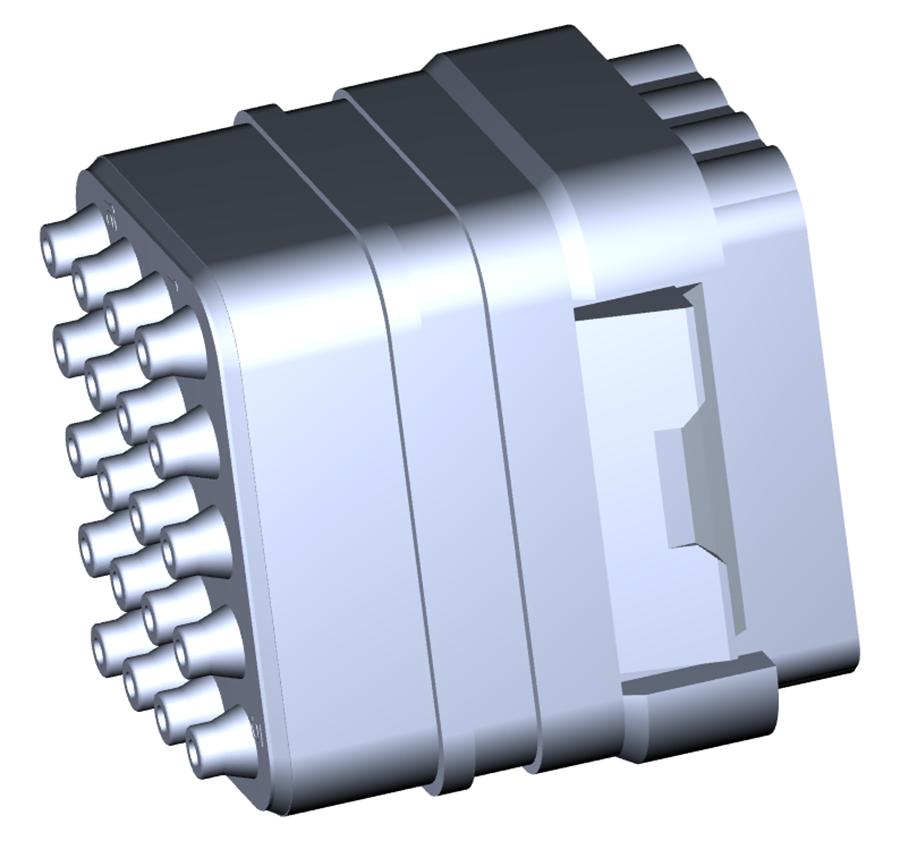

TE CONNECTIVITY DMCM2022AN Modular Connector
The Deutsch DMC-M series connectors are rugged, modular aerospace-grade connectors designed for flexible, high-reliability connectivity in demanding environments. Featuring multi-cavity configurations compliant with EN4165, these connectors offer lightweight aluminum or composite shells, high-density packaging, and seamless integration of fiber optics, hybrid modules, and shunting options. They withstand harsh conditions with operating temperature ranges from -55°C to +175°C, up to 500 mating cycles, and provides efficient, space-saving electrical connections suitable for aerospace, defense, and marine applications, ensuring durability, EMI shielding, and easy maintenance.
TE CONNECTIVITY DMCM2022AN Modular Connector Specifications:
- Shell Material: Aluminum alloy or composite, with nickel or cadmium plating
- Operating Temperature: -55°C to +175°C
- Mating Cycles: 500
- Contact Material: Copper alloy, plated gold over nickel
- Contact Sizes: 08, 12, 16, 20, 22, 23, 24
- Insertion/Extraction Torque: 0.15 +0.02 daN.m (coupling torque)
- Salt Spray Resistance: Aluminum cadmium finish - 500 hours, Nickel finish - 96 hours, Composite finish - 500 hours
- Electrical Withstand Voltage: 1300 V (modules size 24-22), 1500 V (size 20-08)
- Insulation Resistance: 25000 MΩ at sea level, 21000 MΩ at altitude
- Contact Current Rating: Up to 46 A for size 08, 23 A for size 12, 13 A for size 16, 75 A for size 20
- Shielding Effectiveness: Attenuation >55 dB at 300 MHz with conductive shell
- Module Retention in Housing: > 25.4 daN (571 lb.)
- Physical Dimensions: Vary with size, approximately 1.4 to 14.4 mm length, weight up to 390 g for large modules
Buy the Buy DEUTSCH DMC-M Connector Part Number DMCM2022AN Online
Order the DEUTSCH DMC-M connector DMCM2022AN online today for high-performance, versatile aerospace connectivity. Designed for harsh environments, these connectors offer lightweight construction, multiple cavity configurations, and reliable high-density connections. With easy installation, robust materials, and extensive environmental resistance—including salt spray and temperature extremes—they are ideal for aerospace, defense, and marine applications. Secure your reliable, space-efficient connectivity solution now with swift delivery and expert support for your critical projects.
Get DEUTSCH DMC-M connector DMCM2022AN today—built for precision, durability, with flexible modular configurations for aerospace and defense applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCM2022AN?
You can click on the BUY or RFQ button to purchase DMCM2022AN from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCM2022AN?
You can download the DMCM2022AN datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCM2022AN?
TE CONNECTIVITY
