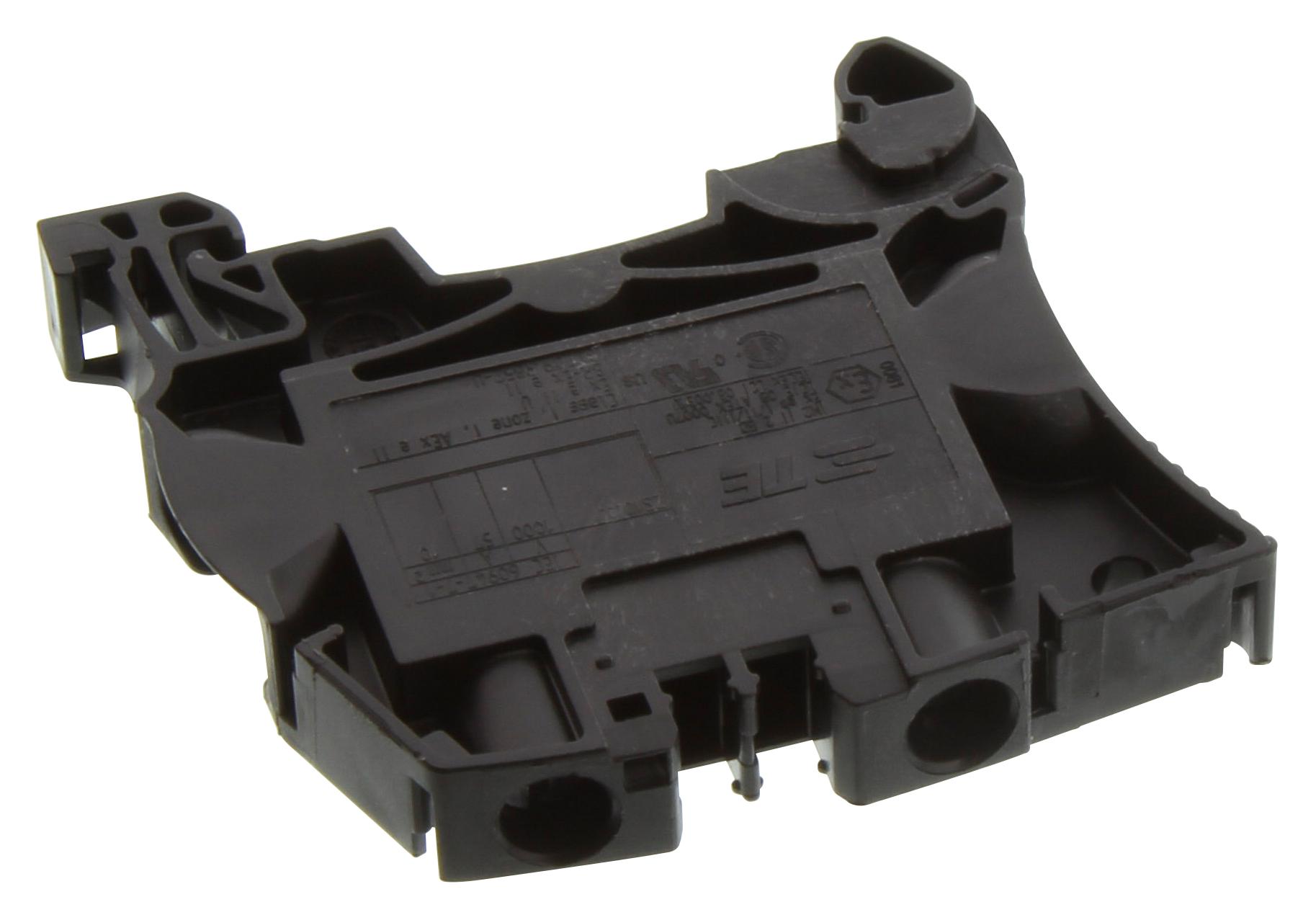

TE CONNECTIVITY 1SNK508066R0000 Screw Clamp Terminal Block
The TE Connectivity ZS10-BK screw clamp terminal block provides a reliable and space-saving connection solution for various industrial applications. Its robust construction and high voltage rating (1000V AC/DC) make it ideal for solar power systems and other demanding environments. The block accommodates a wide range of conductor sizes, from 0.5 mm² to 10 mm², and offers flexible and rigid connection options. It is DIN rail mountable and features a pollution degree of 3, ensuring suitability for challenging conditions. The ZS10-BK contributes to efficient and safe electrical systems.
TE CONNECTIVITY 1SNK508066R0000 Screw Clamp Terminal Block Specifications:
- Extended Product Type: ZS10-BK
- Product ID: 1SNK508066R0000
- EAN: 3472595080663
- Catalog Description: ZS10-BK Screw Clamp Terminal Block - Feed-through - Black
- Minimum Order Quantity: 50 piece
- Customs Tariff Number: 85369010
- Color: Black
- Product Net Height: 53 mm
- Product Net Length: 47.3 mm
- Product Net Depth: 47.3 mm
- Product Net Weight: 14.1 g
- Product Net Width: 8 mm
- Spacing: 8 mm
- Connection Type: Screw clamp
- Function: Feed-through
- Number of Levels: 1
- Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.5 ... 10 mm² Screw Clamp / Flexible 2x 0.5 ... 4 mm² Screw Clamp / Rigid 1x 0.5 ... 10 mm² Screw Clamp / Rigid 2x 0.5 ... 4 mm² Screw Clamp / With Insulated Ferrule 1x 0.5 ... 6 mm² Screw Clamp / Without Insulated Ferrule 1x 0.5 ... 10 mm² Screw Clamp / With Twin Ferrule 2x 0.5 ... 4 mm²
- Gauge Type: A5-B5
- Rated Current (In) Main Circuit: 57 A
- Rated Short-time Withstand Current (Icw): 1200 A
- Rated Voltage (Ur): 1000 V
- Rated Impulse Withstand Voltage (Uimp): 8000 V
- Dielectric Test Voltage: 2200 V
- Pollution Degree: 3
- Power Loss: 1.8 W
- Degree of Protection: IP20
- Insulation Material: Polyamide
- Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm) / TH35-15 (35 x 15 mm)
- Wire Stripping Length: 12.0 mm
- Recommended Screw Driver: 4 mm
- Rated Cross-Section: 10 mm²
- Connecting Capacity UL/CSA: Screw Clamp / Flexible 1x 24 ... 6 AWG Screw Clamp / Flexible 2x 20 ... 12 AWG Screw Clamp / Rigid 1x 24 ... 6 AWG Screw Clamp / Rigid 2x 20 ... 12 AWG Screw Clamp / With Insulated Ferrule 1x 24 ... 10 AWG Screw Clamp / Without Insulated Ferrule 1x 24 ... 8 AWG Screw Clamp / With Twin Ferrule 2x 20 ... 12 AWG
- Flammability According to UL94: V0
- Resistance to Vibrations acc. to IEC 60068-2-6: Compliant
- RoHS Status: Following EU Directive 2002/95/EC
- Ambient Air Temperature Operation: -55 ... +110 °C
- Ambient Air Temperature Storage: -55 ... +110 °C
- E-nummer: 2925965
- ETIM 4: EC000897 - Feed-through terminal block
- ETIM 5: EC000897 - Feed-through terminal block
- ETIM 6: EC000897 - Feed-through terminal block
- Object Classification Code: X
- Package Level 1 Width: 82 mm
- Package Level 1 Length: 252 mm
- Package Level 1 Height: 52 mm
- Package Level 1 Gross Weight: 0.705 kg
- Package Level 1 EAN: 3472595080663
- Package Level 2 Units: 600 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 400 mm
- Package Level 2 Height: 200 mm
- Package Level 2 Gross Weight: 9.020 kg
- Package Level 3 Units: 28800 piece
- Product Packing Type: Box
- Package Level 1 Units: 50piece
