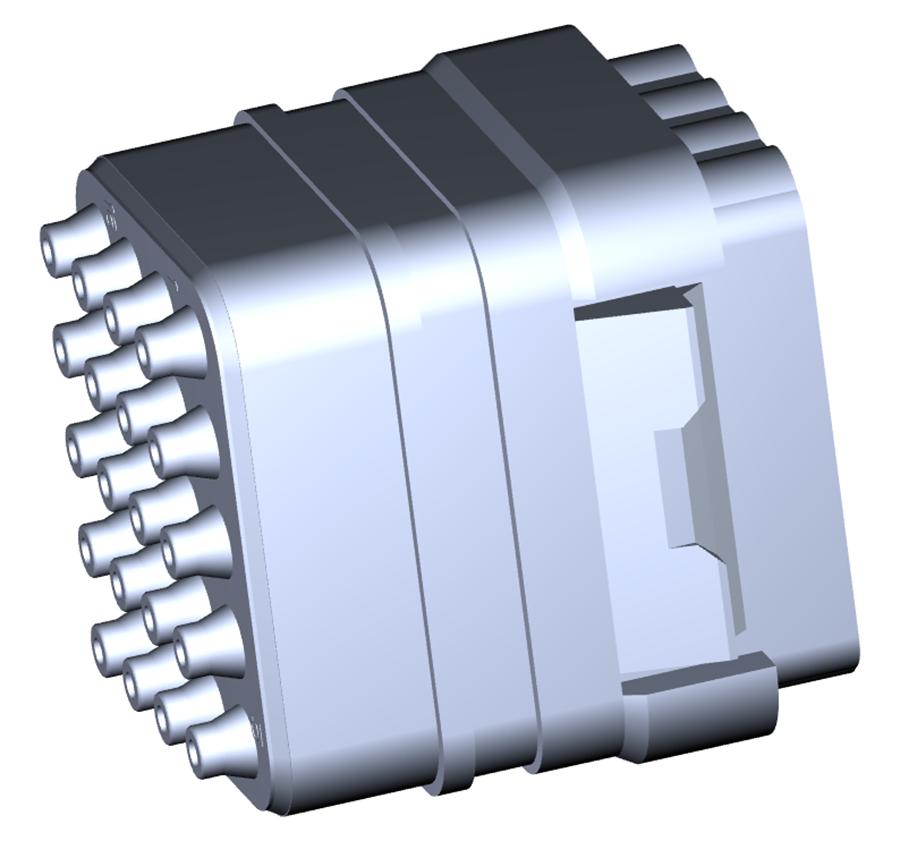

TE CONNECTIVITY DMCM2022PNE Multicavity Aerospace Connector
The Deutsch DMC-M series are rugged, modular, and lightweight connectors designed for aerospace, defense, and marine applications. They feature high-density configurations, shielded or unshielded options, and are compatible with fiber optics, hybrid, and electrical modules. Offering durability over 500 mating cycles, operating from -55°C to +175°C, they provide reliable electrical and optical connections. Available in aluminum alloy or composite shells with various plating finishes, these connectors support a broad range of electrical ratings, keying options, and configurations, making them ideal for space-constrained, harsh environment environments with EMI protection and modular upgradeability.
TE CONNECTIVITY DMCM2022PNE Multicavity Aerospace Connector Specifications:
- Shell Material: Aluminum alloy or composite, with electroless nickel or olive drab cadmium finish
- Operating Temperature: -55°C to +175°C
- Durability: 500 mating cycles
- Module Retention in Housing: > 25.4 daN (571 Ib.)
- Contact Material: Copper alloy, plated gold over nickel
- Contact Sizes: 8, 12, 16, 20, 22, 23, 24
- Mechanical Insertion Force: ~4.5 daN (10.1 Ib.) for sizes 22 and 23, up to 15.6 daN (35.1 Ib.) for size 8
- Voltage Rating: 1300 V at sea level, 1500 V for higher module sizes, 1000 V at altitude
- Salt Spray Resistance: Up to 96 hours (nickel finish), 500 hours (cadmium finish)
- Sealing: Optional sealing with gaskets and sealed modules supporting IP67 environment compatibility
- Shielding Effectiveness: Attenuation of 45-78 dB up to 7 MHz, consistent EMI and RFI protection
- Environmental Resistance: Salt spray, vibration, and temperature extremes suitable for aerospace and military use
Buy the Deutch 1234 - Reliable Aerospace Connector for Industrial Applications
Enhance your aerospace and military systems with our Deutsch DMC-M connectors. Designed for high performance, reliability, and modularity, these connectors ensure secure connections in harsh environments. They support a variety of configurations, from fiber optic to hybrid modules, with durable aluminum or composite shells. Easy to install and maintain, these connectors offer EMI protection, environmental resistance, and long lifespan, making them essential for space-constrained, mission-critical applications. Buy online now for fast delivery and trusted quality assurance.
Order your Deutsch series DMC-M connectors today and ensure dependable, modular connectivity solutions for demanding aerospace and defense projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCM2022PNE?
You can click on the BUY or RFQ button to purchase DMCM2022PNE from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCM2022PNE?
You can download the DMCM2022PNE datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCM2022PNE?
TE CONNECTIVITY
