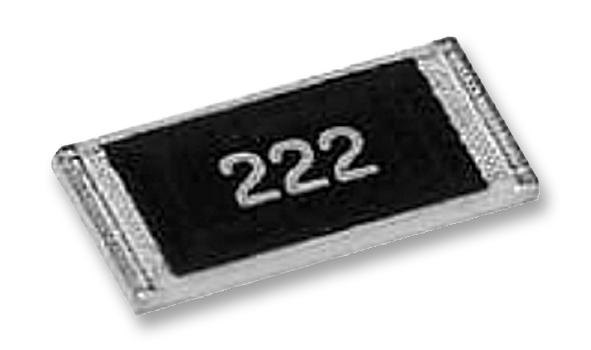

TE CONNECTIVITY CRGCQ0805F560K Thick Film Chip Resistor
The Thick Film Chip Resistor series offers small, lightweight, and AEC-Q200 compliant components suitable for automotive and industrial applications. Designed for automatic placement and available in seven package sizes, these resistors feature a high-purity alumina substrate, resistive element, protective coating, and Sn outer terminations for reliable performance under demanding conditions. They support wave and reflow soldering techniques, with power ratings from 0.0625W up to 1W and resistance ranges from 10Ω to 10MΩ. The resistors demonstrate excellent stability, high dielectric withstand voltage, and robust environmental resistance, making them ideal for precise, durable, and high-temperature applications.
TE CONNECTIVITY CRGCQ0805F560K Thick Film Chip Resistor Specifications:
- Construction: High purity alumina substrate, resistive element, protective coating, Ni/Cr inner termination, Ni barrier, Sn outer termination
- Power Rating: 0.0625W to 1W @ 70°C depending on size
- Resistance Range: 10Ω to 10MΩ (standard series: E24 and E96)
- Tolerance: Typical ±1% to ±5%
- Max. Working Voltage: 50V to 200V depending on model
- Max. Overload Voltage: 100V to 500V depending on model
- Dielectric Withstand Voltage: 100V to 500V
- Temperature Range: -55°C to +155°C
- Dimensions: CRGCQ0402 - 1.00×0.50 mm, CRGCQ0603 - 1.60×0.80 mm, CRGCQ0805 - 2.00×1.25 mm, CRGCQ1206 - 3.10×1.55 mm, CRGCQ1210 - 3.10×2.60 mm, CRGCQ2010 - 5.00×2.50 mm, CRGCQ2512 - 6.35×3.20 mm
- Environmental Resistance: Humidity, moisture, thermal cycling, and sulfur resistance tested to industry standards
- Marking: E96 series 0805-2512 marked with four digits, 1R80 format for below 100Ω, no marking for 0603 series
- Soldering: Compatible with wave and reflow soldering, peak temp up to 260°C, with recommended profiles
- Packaging: Tape and reel; 10,000 pcs for 0402, 5,000 pcs for 0603, 1206, etc.
- Compliance: RoHS, Halogen-free, EU directives
Buy the TE Connectivity Series CRGCQ0805 560K Ohm Resistor: Reliable Thick Film Chip Component
Purchase your TE Connectivity Series CRGCQ0805 560K ohm resistor online now and experience reliable, high-performance components ideal for automotive, industrial, and electronic applications. These resistors are compliant with industry standards, support multiple soldering techniques, and feature a durable construction designed for demanding environments. Ensure your projects meet high-quality standards with quick online ordering, fast shipping, and expert support. Trust TE Connectivity for resilient, precise, and long-lasting resistors that enhance your electronic designs and manufacturing processes.
Order your TE Connectivity Series CRGCQ0805 560K ohm resistor today and ensure your projects benefit from dependable performance in harsh environments.
