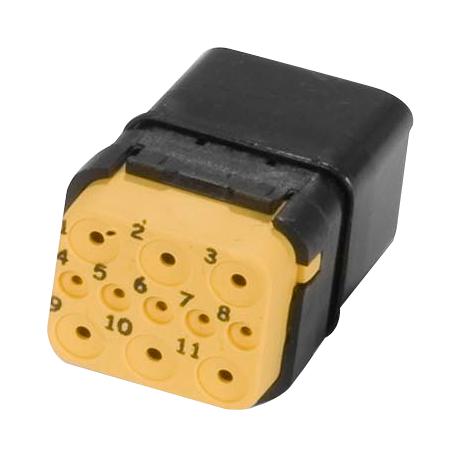

TE CONNECTIVITY DMCM9901SN Multi-Cavity Connector
The DMC-M series connectors are highly reliable, modular, and lightweight solutions designed for aerospace, defense, and marine industries. These EN4165 compliant connectors feature versatile configurations, including multi-cavity, fiber optic, hybrid, and high-speed Ethernet modules. Constructed from durable aluminum alloy or composite materials with nickel or cadmium plating, they offer excellent environmental resistance, durability for 500 mating cycles, operating from -55°C to +175°C, and withstand voltages up to 1500 Vrms. Their EMI shielding ensures signal integrity in harsh environments, making them ideal for complex aerospace applications requiring space-efficient, robust, and configurable connectivity solutions.
TE CONNECTIVITY DMCM9901SN Multi-Cavity Connector Specifications:
- Shell Material: Aluminum alloy or composite, with electroless nickel or olive drab cadmium finish
- Operating Temperature: -55°C to +175°C
- Electrical Voltage: Up to 1500 Vrms at sea level, 1000 Vrms at altitude
- Durability: 500 mating cycles
- Contact Retention: Size 24 - 2.7 daN; Size 16 - 11.0 daN; Size 8 - 15.6 daN
- Contact Material: Copper alloy, plated gold over nickel
- Salt Spray Resistance: Aluminum cadmium 500 hours, nickel finish 96 hours
- Shielding Effectiveness: Attenuation up to 55 dB at 1 MHz, 30 dB at 70 MHz
- Mechanical: Uses keying components with 36 orientations for secure, misalignment-free mating
- Configuration: Multi-cavity, fiber optic, hybrid, high-speed Ethernet, and shunted modules available
- Mechanical: Modules retain >25.4 daN in housing, with combinable modules for custom configurations
- Environmental: Resistant to salt spray, suitable for harsh aerospace environments
- Connections: Crimp and PCB contacts sizes 8 to 24, compatible with TE tooling
- Standards: EN4165, UL, MIL-STD compatible
- Additional features: EMI/RFI shielding, lightweight aluminum or composite shells, keyed for mis-mating prevention
Buy the TE Connectivity DMCM9901SN – Reliable Multi-Cavity Connector for Aerospace and Defense
Experience the dependability and modular flexibility of the TE Connectivity DMC-M series connectors. Designed for aerospace, defense, and marine applications, these EN4165 compliant connectors offer space efficiency, robust construction, and versatile configurations including fiber optics and high-speed Ethernet modules. Whether you need a simple multi-cavity setup or complex hybrid solutions, ordering online ensures fast delivery, expert support, and access to a wide range of accessories for seamless integration into your systems. Trust TE’s proven technology for your most demanding connectivity needs.
Order your TE Connectivity series DMCM9901SN lightweight, modular connector today and ensure reliable, space-saving connectivity for critical aerospace projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCM9901SN?
You can click on the BUY or RFQ button to purchase DMCM9901SN from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCM9901SN?
You can download the DMCM9901SN datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCM9901SN?
TE CONNECTIVITY
