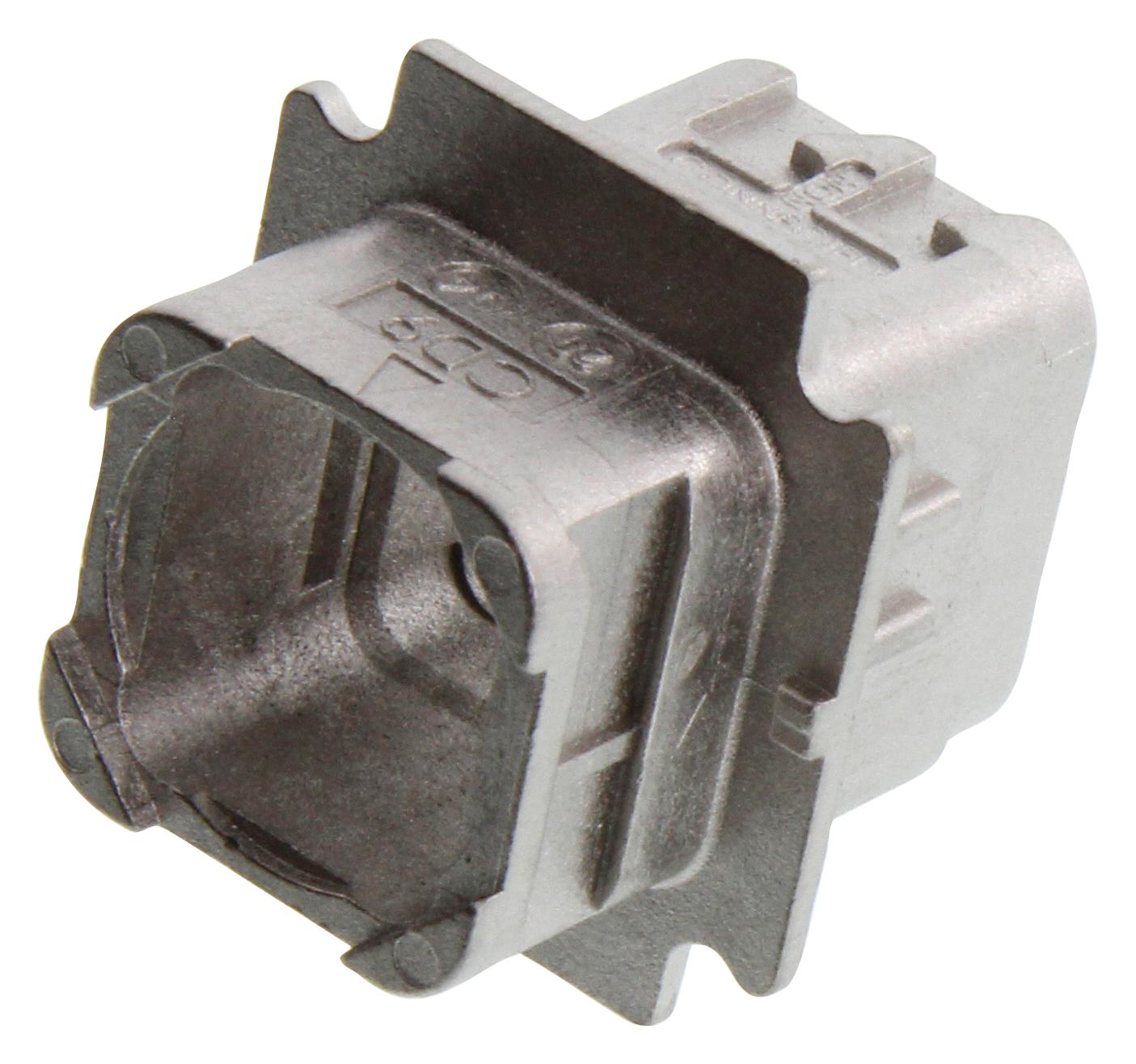

TE CONNECTIVITY DMCMD26D Aerospace Connector
The Deutsch DMC-MD Series is a modular, lightweight connector system designed for aerospace cabin systems, offering compatibility with EN4165, ARINC 809, and BACC65 standards. These connectors feature durable composite housings, thermoplastic modules, and gold-plated copper contacts, ensuring high performance in demanding environments. They support multiple configurations, including single module, extender, and short receptacles, with various backshell and accessory options for optimal cable management. Certified for extreme temperatures, vibration, and salt spray, DMC-MD connectors provide reliable, flexible connectivity for advanced aircraft communication and control systems, emphasizing ease of installation, high EMI shielding, and weight efficiency tailored for aerospace applications.
TE CONNECTIVITY DMCMD26D Aerospace Connector Specifications:
- Housing: Composite, nickel plated
- Modules: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- PCB Contacts: Copper alloy, plated gold over nickel, with lead or ROHS tinning option
- Temperature Range: -55°C to +175°C
- Vibration: 20 g
- Durability: 500 mating cycles
- Salt Spray: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Insulation Resistance: 5000 MO
- Contact Current Ratings vary from 3 A to 46 A depending on size
- EMI Shielding: Attenuation up to 50 dB at 100 MHz, decreasing at higher frequencies
- Weight (receptacle): Approx. 0.013-0.020 lbs
- Panel Cutout: Approx. 28.9 mm to 35.3 mm max, recommended panel thickness 0.8 mm to 2 mm
- Screw Torque: 0.5 ±0.1 N.m
Buy the Deutsch DMC-MD – Reliable Aerospace Connector for Industrial Applications
Discover the Deutsch DMC-MD connector series, engineered for aerospace cabin systems. These modular connectors combine lightweight construction with robustness, supporting standards like EN4165, ARINC 809, and BACC65. Designed for easy installation with multiple configurations, they deliver high EMI shielding and environmental resistance, including extreme temperature, vibration, and salt spray certifications. Suitable for diverse aerospace wiring needs, these connectors ensure reliable, long-term performance, making them ideal for aircraft communication, control systems, and interior connectivity. Purchase online today for dependable aerospace connectivity solutions.
Get Deutsch DMC-MD today—built for precision and long-lasting durability in aerospace and industrial applications.
