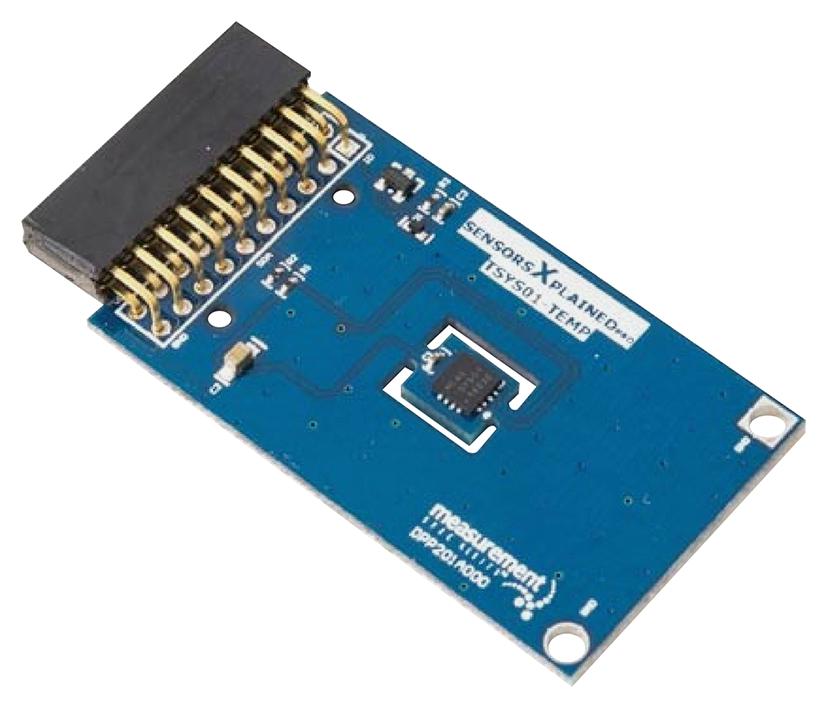

TE CONNECTIVITY DPP201A000 Digital Temperature Sensor
The TSYS01 peripheral module provides the hardware interface required to connect the TSYS01 digital temperature sensor to systems with Xplained Pro-compatible expansion ports configured for I2C communication. The TSYS01 sensor is a fully calibrated, self-contained digital temperature sensor capable of measuring temperatures from -40°C to 125°C. It operates from 2.2V to 3.6V and features a low power standby mode suitable for power-sensitive applications. The module supports I2C communication with high resolution (24/16-bit), fast response times (typical conversion time of 8.22 ms), and offers high accuracy (0.1°C in the -5°C to 50°C range and 0.5°C across the full measurement range). It includes a 20-pin Xplained Pro compatible connector, an Xplained Pro identification chip, and parameters stored on-chip. An Atmel Studio 6 project and microcontroller C code are available for download.
TE CONNECTIVITY DPP201A000 Digital Temperature Sensor Specifications:
- Temperature measurement range: -40°C to 125°C
- Operating voltage: 2.2V to 3.6V
- Resolution: 24/16-bit
- Accuracy: 0.1°C from -5°C to 50°C, 0.5°C across full range
- Response time: 8.22 ms typical
- Power consumption: Very low, with standby mode
- Connector: 20-pin Xplained Pro compatible
- Communication: I2C (PC interface)
- Dimensions: Approximately 30mm x 50mm
- Includes Xplained Pro hardware ID chip and parameters stored on-chip
Buy the TE Connectivity Series TSYSO1 Digital Temperature Sensor: DPP201A000
Purchase the TE Connectivity TSYSO1 peripheral module today to integrate high-precision, low-power digital temperature sensing into your embedded projects. This module offers a wide measurement range from -40°C to 125°C, with resolutions up to 24/16-bit, ensuring detailed temperature data. Its fast response time of approximately 8.22 ms allows real-time monitoring, making it ideal for industrial, medical, and consumer applications. The module features a compact design with a 20-pin connector compatible with Xplained Pro systems, providing straightforward integration. Secure your supply now and benefit from industry-leading sensor performance and durability.
Order your TE Connectivity SeriesTSYSO1 Digital Temperature Sensor now and enhance your projects with reliable, high-precision temperature measurement.
