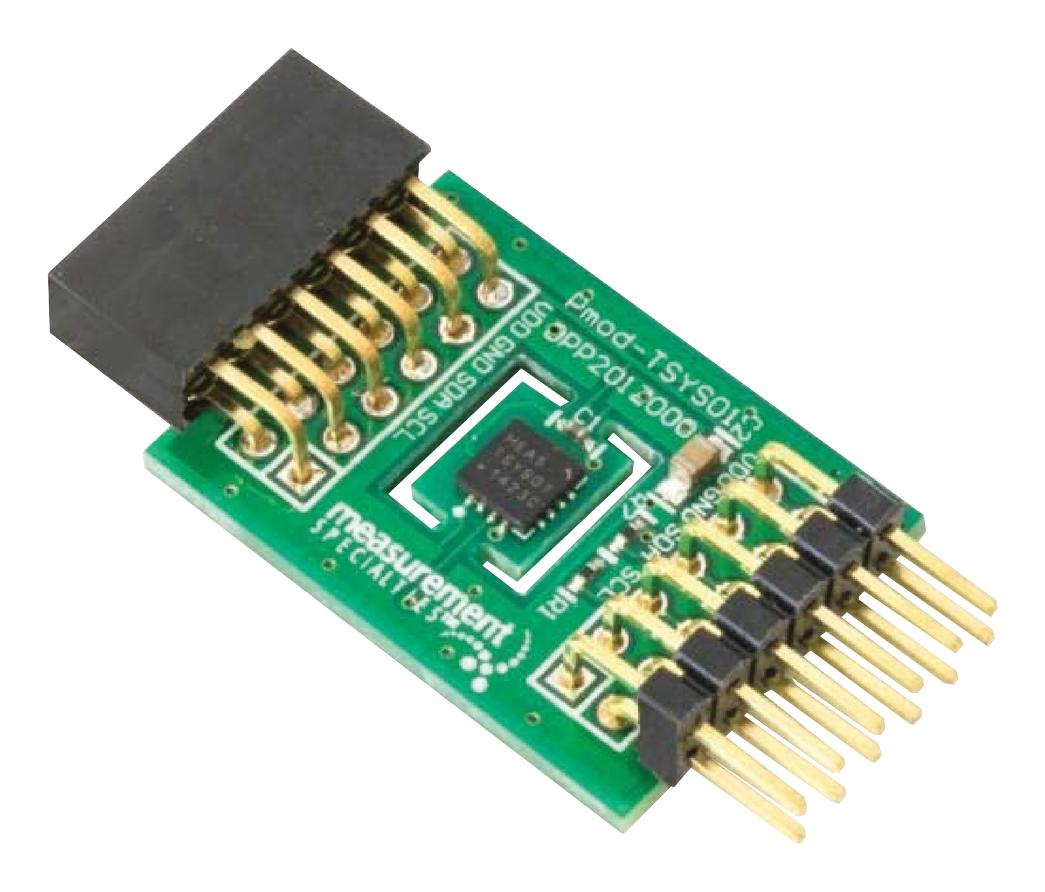

TE CONNECTIVITY DPP201Z000 Temperature Sensor Module
The TSYS01 peripheral module allows easy integration of the TSYS01 digital temperature sensor with systems that have Pmod-compatible expansion ports. The module supports I2C communication and features a 12-pin Pmod connector, with an additional secondary connector for daisy chaining. The TSYS01 sensor is fully calibrated, operates in a voltage range of 2.2V to 3.6V, and offers low power standby mode, making it suitable for power-sensitive applications. It provides accurate temperature measurements from -40°C to 125°C, with a resolution of 16 or 24 bits, a typical response time of 8.22 milliseconds, and a time constant of approximately 4 seconds in air. The sensor’s parameters are stored on-chip, and both FPGA fabric and microcontroller code are available for download.
TE CONNECTIVITY DPP201Z000 Temperature Sensor Module Specifications:
- Temperature Range: -40°C to 125°C
- Resolution: 16/24 bit
- Power Supply: 2.2V to 3.6V
- Response Time: 8.22 ms typical
- Time Constant: 4 seconds in air
- Operating Current: Very low power consumption
- Communication: I2C (PC interface)
- Connectivity: 12-pin Pmod compatible connector, secondary daisy chain connector
- Dimensions: 20.3mm × 27.9mm × 39.4mm
- Calibration: Fully calibrated on-chip
- Features: Fast response, parameters stored on chip, FPGA and microcontroller code available
Buy the TE Connectivity DPP201Z000 – Reliable Temperature Sensor for Industrial Applications
Purchase the TE Connectivity temperature sensor module online today to enhance your industrial or environmental monitoring systems. With integrated I2C communication, fully calibrated measurement capabilities, and low power consumption, this module offers precise temperature readings from -40°C to 125°C. Its versatile design includes a 12-pin Pmod socket, supporting daisy chaining for multiple sensors on the same bus. Easy to install and compatible with popular development platforms, this sensor module ensures reliable, fast, and energy-efficient temperature data acquisition for your projects.
Buy TE Connectivity DPP201Z000 temperature sensor module now and experience accurate, low-power temperature measurement ideal for industrial and environmental monitoring.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DPP201Z000?
You can click on the BUY or RFQ button to purchase DPP201Z000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DPP201Z000?
You can download the DPP201Z000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DPP201Z000?
TE CONNECTIVITY
