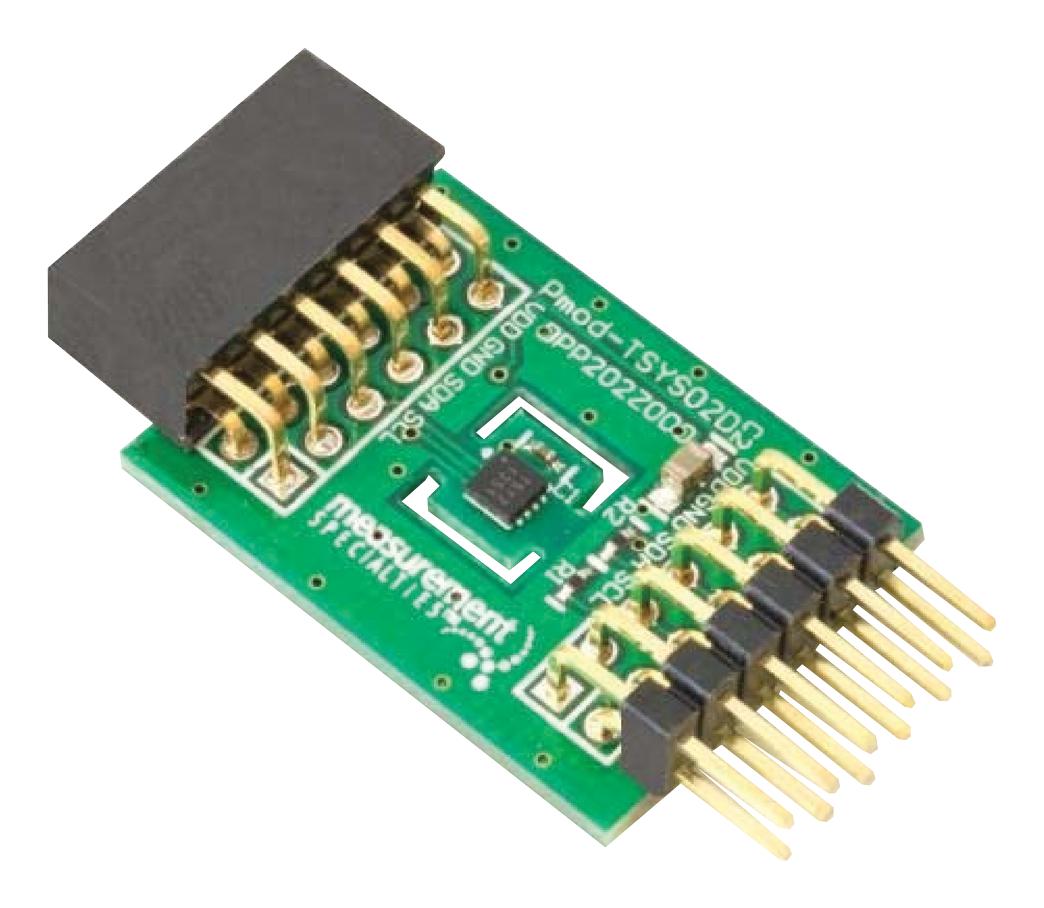

TE CONNECTIVITY DPP202Z000 Digital Temperature Sensor Module

The TSYS02D peripheral module provides the necessary hardware to interface the TSYS02D digital temperature sensor with systems that use Pmod-compatible expansion ports. It supports configurable I2C communication and is suitable for applications requiring accurate temperature measurements. The sensor operates from 1.5V to 3.6V, features a low power standby mode, and measures temperatures from -40°C to 125°C. It offers high-resolution readings with 16 or 24-bit resolution, a fast conversion time of approximately 43ms, and a typical time constant of 4 seconds in air. The module includes a 12-pin Pmod connector and a secondary connector for daisy chaining. It also features stored parameters, and optionally available FPGA fabric and microcontroller C code for easy integration. The sensor provides measurement accuracy of 0.2°C within -5°C to 50°C, 0.5°C within -20°C to 100°C, and 1°C within the full temperature range.

View DPP202Z000Datasheet [pdf]

Buy the TE Connectivity DPP202Z000 – Reliable Temperature Sensor for Industrial Applications

Order the TE Connectivity DPP202Z000 digital temperature sensor module online today to benefit from precise temperature measurements from -40°C to 125°C. This module offers high resolution with 16 or 24-bit data, fast 43 ms conversion time, and low power operation, making it ideal for industrial and embedded systems. Its Pmod compatibility simplifies integration and daisy chaining for scalable sensor networks. Equipped with stored parameters and optional FPGA and microcontroller support, this module ensures reliable and efficient temperature monitoring for various applications.

Buy TE Connectivity DPP202Z000 temperature sensor module now and experience unmatched accuracy, low power efficiency, and easy system integration with high-resolution data.
