TE CONNECTIVITY DPP301A000 Humidity Temperature Sensor Module

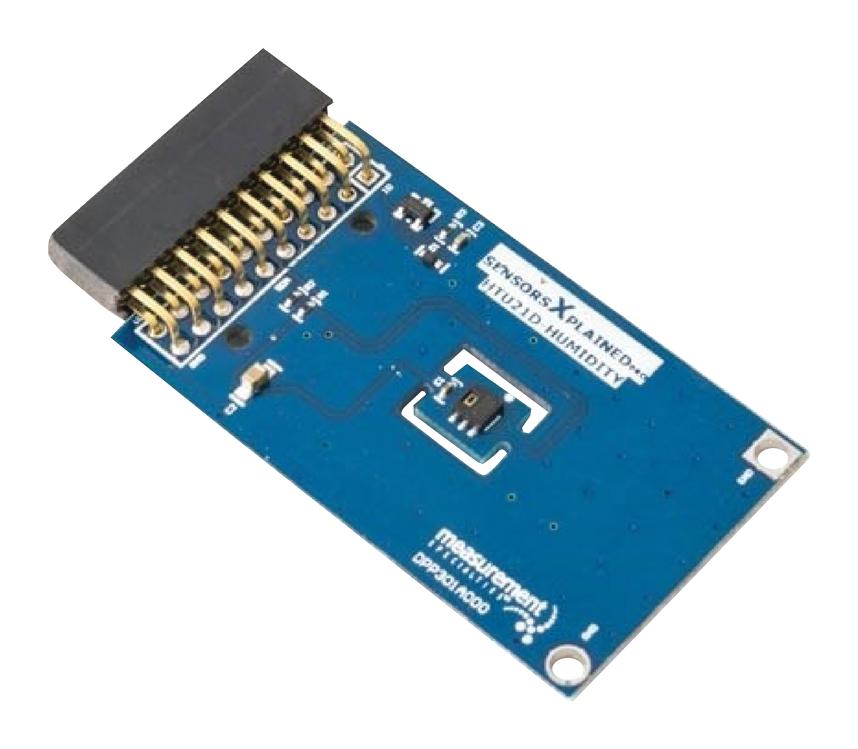

The HTU21D peripheral module provides the necessary hardware interface to connect the HTU21D digital humidity and temperature sensor to systems with Xplained Pro compatible expansion ports configured for I2C communication. The sensor is a self-contained, fully calibrated device capable of measuring relative humidity from 0% to 100% and temperature with selectable resolution. It features low power consumption, quick response time of approximately 5 seconds, a built-in heater for rapid recovery from saturation, and the ability to fully recover from condensation. The module includes a 20-pin Xplained Pro compatible connector and an identification chip. It supports adjustable resolution settings (8-12bit for humidity, 11-14bit for temperature) and fast conversion times (around 14 milliseconds). An Atmel Studio 6 project and microcontroller C code are available for download.
TE CONNECTIVITY DPP301A000 Humidity Temperature Sensor Module Specifications:
- Measures relative humidity from 0% to 100%
- Measures temperature from -40°C to 125°C
- Operates from 1.5V to 3.6V
- Fast response time - 5 seconds typical
- Conversion time — 14 ms typical
- Selectable 8-12 bit resolution for humidity
- Selectable 11-14 bit resolution for temperature
- Low power consumption, ideal for battery-powered systems
- Includes 20-pin Xplained Pro compatible connector
- Built-in heater for fast recovery from saturation
- Operates via I2C communication interface
- Dimensions approximately 50mm x 30mm
- Includes identification chip for system recognition
- Supports pull-up resistors for SDA and SCL lines
- Compatible with Atmel Studio 6 and C code for easy integration
Buy the TE Connectivity DPP301A000 – Reliable Humidity and Temperature Sensor for Industrial Applications
Order the TE Connectivity humidity and temperature sensor module DPP301A000 online today to ensure precise environmental monitoring. This self-contained, fully calibrated device offers fast 14-millisecond conversion times, a wide temperature range from -40°C to 125°C, and accurate humidity measurement from 0% to 100%. Designed for easy integration via I2C interface, it features low power consumption ideal for battery-powered and power-sensitive applications. With built-in heater and selectable resolution, this module guarantees rapid recovery from condensation and saturation, making your industrial systems more reliable and efficient.
Buy TE Connectivity DPP301A000 now and experience unmatched reliability and performance with low power consumption and fast response for industrial projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DPP301A000?
You can click on the BUY or RFQ button to purchase DPP301A000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DPP301A000?
You can download the DPP301A000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DPP301A000?
TE CONNECTIVITY
