TE CONNECTIVITY TLR2B10DR004FTDG Current Sense Resistor
The TLR Series current sense resistors are high power, metal chip components designed for accurate current detection in automotive and low voltage power supply applications. Available in 1206, 2010, and 2512 sizes, these resistors provide power ratings up to 3 Watts at 80°C, with resistance values ranging from 0.001 Ω up to 0.3 Ω. They feature a special resistive element with barrier layers for terminal longevity, ideal for sensing applications in electronic control units and battery management systems, ensuring reliable performance in high-temperature environments from -55°C to 170°C.
TE CONNECTIVITY TLR2B10DR004FTDG Current Sense Resistor Specifications:
- Size options: 1206, 2010, 2512
- Power Rating: Up to 3 Watts at 80°C
- Resistance Value Range: 0.001 Ω to 0.3 Ω
- Resistance Tolerance: ±3%, ±5%
- Operating Temperature: -55°C to 170°C
- Inductance: Refer to chart based on frequency
- TCR: 50 ppm/°C to 150 ppm/°C depending on size and resistance
- Dimensions: Varies by size, e.g., 1206 is approximately 3.2 mm x 1.6 mm
- Package: Supplied on tape, reel quantities up to 2000 units

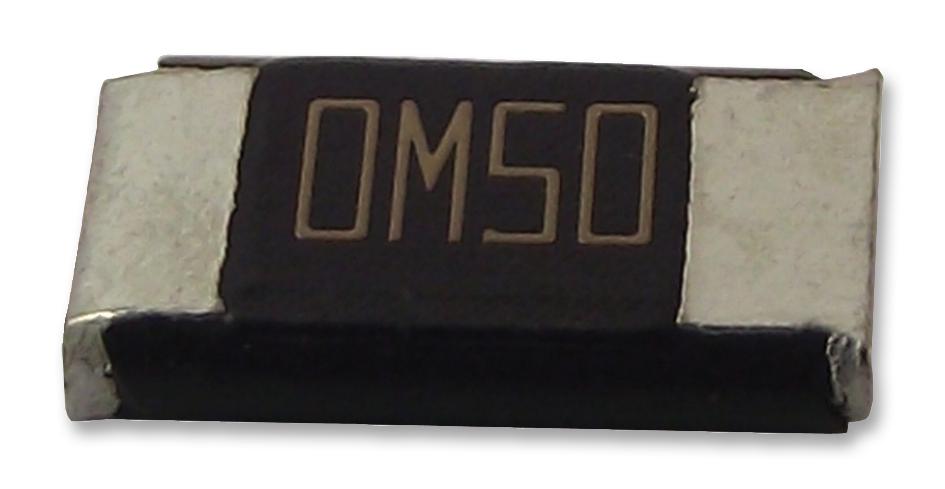

Buy the Buy TE Connectivity TLR Series Part Number TLR2B10DR004FTDG Online
Purchase the TE Connectivity TLR Series high power current sense resistor online today and ensure precise current detection in your automotive control units or low voltage power systems. These resistors deliver up to 3W power rating at 80°C, with resistance values from 0.001 Ω to 0.3 Ω, available in 1206, 2010, and 2512 sizes. Designed with a high-quality resistive element and barrier layers, they provide excellent thermal stability and longevity. Easy to order in tape format, these components enable you to build reliable, efficient electronic systems swiftly and securely.
Order your TE Connectivity TLR2B10DR004FTDG series high power current sense resistor today and enhance the reliability of your automotive or power supply projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TLR2B10DR004FTDG?
You can click on the BUY or RFQ button to purchase TLR2B10DR004FTDG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TLR2B10DR004FTDG?
You can download the TLR2B10DR004FTDG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TLR2B10DR004FTDG?
TE CONNECTIVITY
