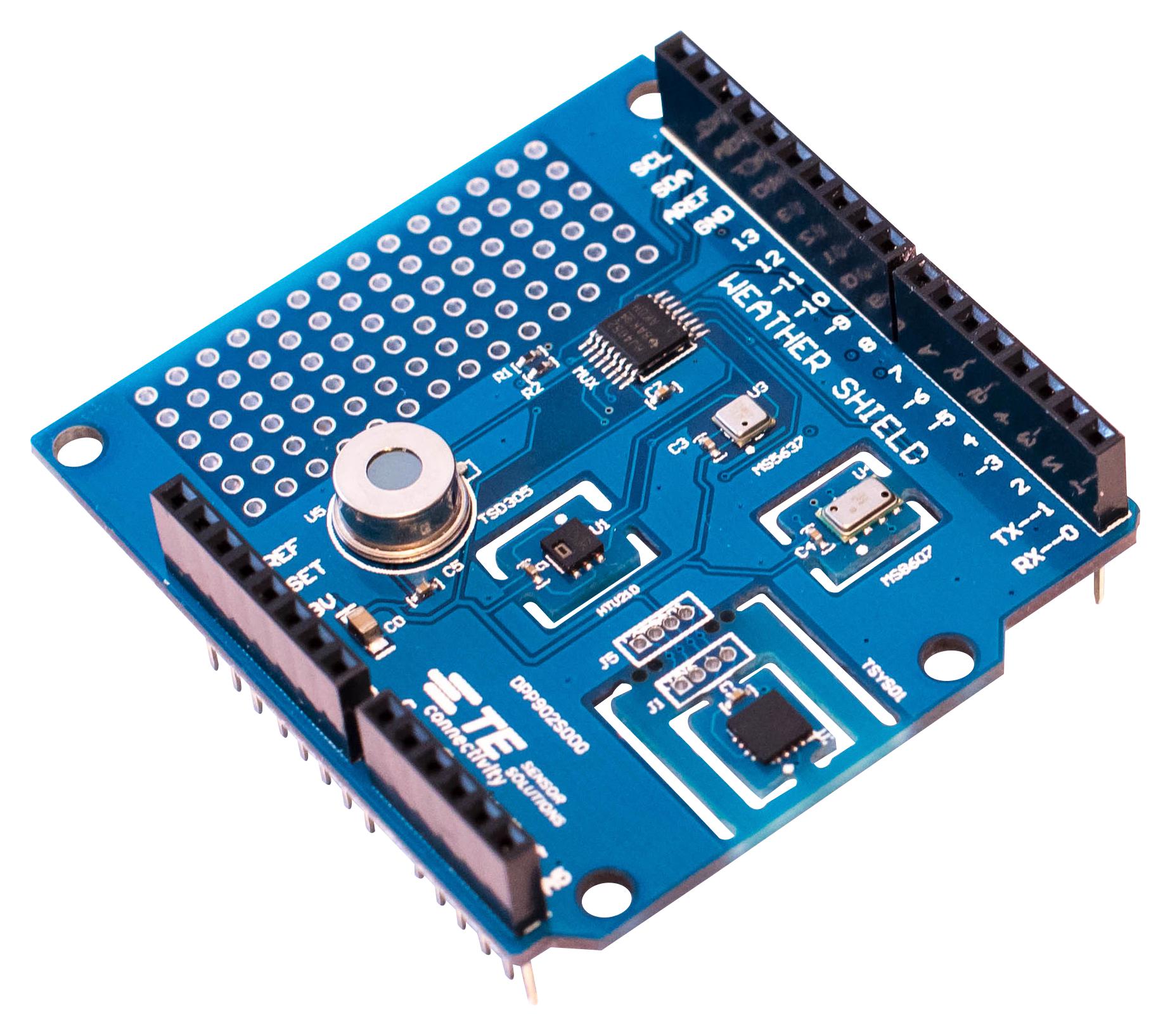

TE CONNECTIVITY DPP902S000 Weather Sensor Shield
The DPP902S000 weather shield for Arduino and Genuino motherboards offers an integrated hardware interface to connect multiple environmental sensors, including humidity, pressure, and temperature sensors from TE Connectivity. It supports sensors like HTU21D, MS5637, MS8607, TSYS01, and TSD305-1C55, operating within voltage ranges of 1.5V to 3.6V and measuring parameters such as relative humidity, temperature, and pressure. Designed for embedded applications, it features I²C communication, easy external sensor soldering, and standard Arduino connectors, with dimensions approximately 57.6mm by 53.3mm, making it ideal for weather stations and environmental monitoring projects.
TE CONNECTIVITY DPP902S000 Weather Sensor Shield Specifications:
- Supports sensors operating from 1.5V to 3.6V and measuring parameters such as humidity from 0% to 100%, pressure from 300 mbar to 1200 mbar, and temperature from -40°C to 125°C.
- Compatible with Arduino/Genuino motherboards via standard connectors.
- Dimensions approximately 57.6mm by 53.3mm.
- Includes interface for sensors like HTU21D, MS5637, MS8607, TSYS01, and contactless TSD305-1C55.
- Supports I²C communication protocol for easy integration.
- Has 64 solder pads for external sensor connections.
- Operating voltage ranges from 1.5V to 3.6V for most sensors.
- Designed for embedded environmental and weather monitoring applications.
- Features calibration data for accurate measurements and fast response times.
Buy the Buy TE Connectivity Weather Shield Part Number DPP902S000 Online
Enhance your environmental data collection with the TE Connectivity weather shield compatible with Arduino and Genuino. Designed for humidity, temperature, and pressure sensors, the shield supports sensor operation from 1.5V to 3.6V, offering fast response times and low power consumption. Its compact size, approximately 57.6mm by 53.3mm, and versatile soldering options enable easy customization for weather stations, embedded sensing solutions, and climate monitoring. Get yours online today and build reliable environmental monitoring systems effortlessly.
Buy TE Connectivity DPP902S000 weather shield now and experience reliable environmental monitoring via easy sensor integration.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DPP902S000?
You can click on the BUY or RFQ button to purchase DPP902S000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DPP902S000?
You can download the DPP902S000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DPP902S000?
TE CONNECTIVITY
